CNC Shield v4

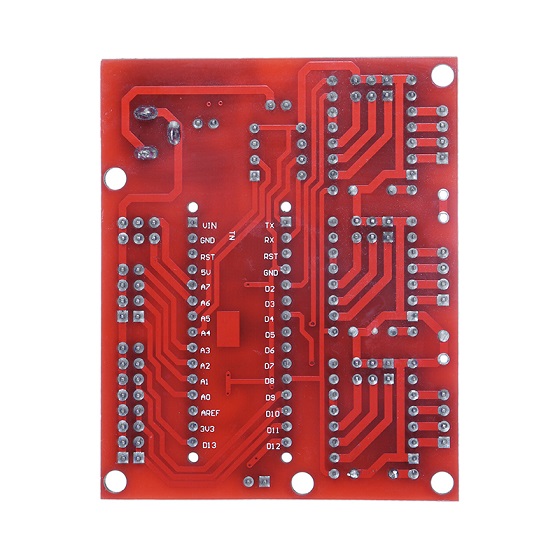

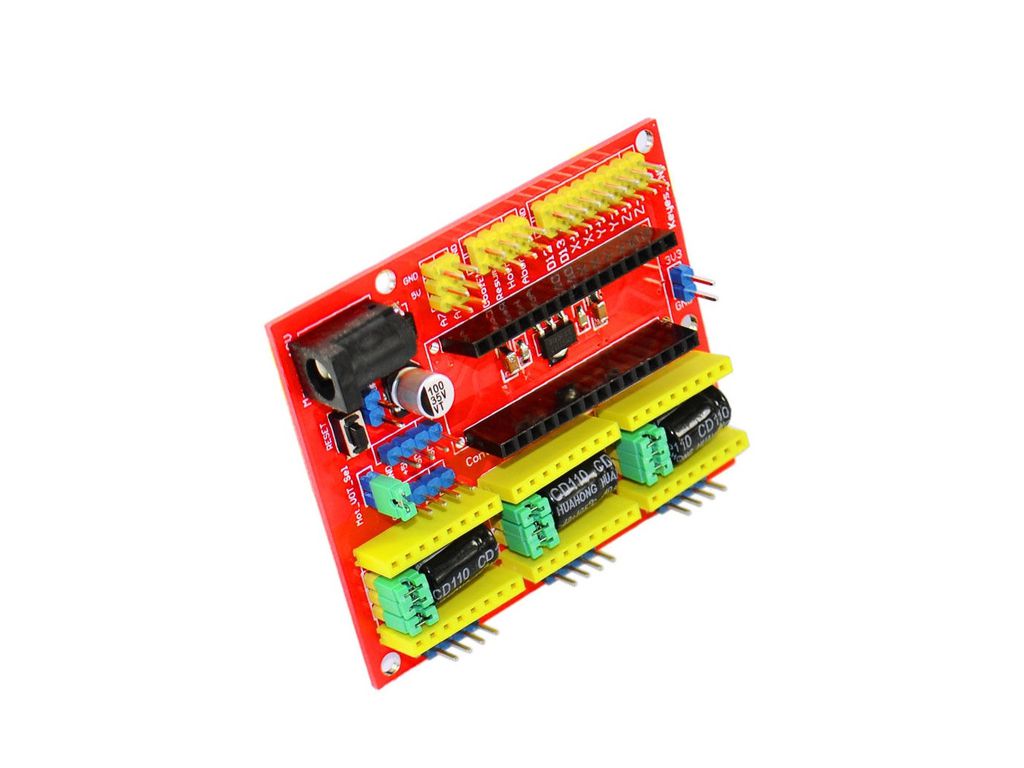

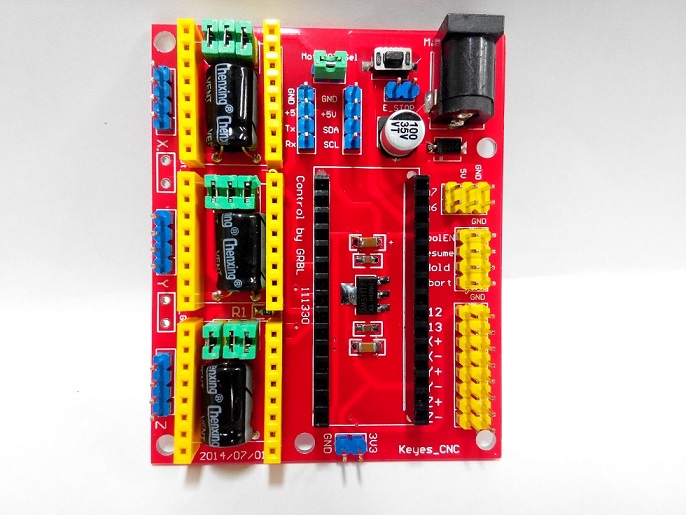

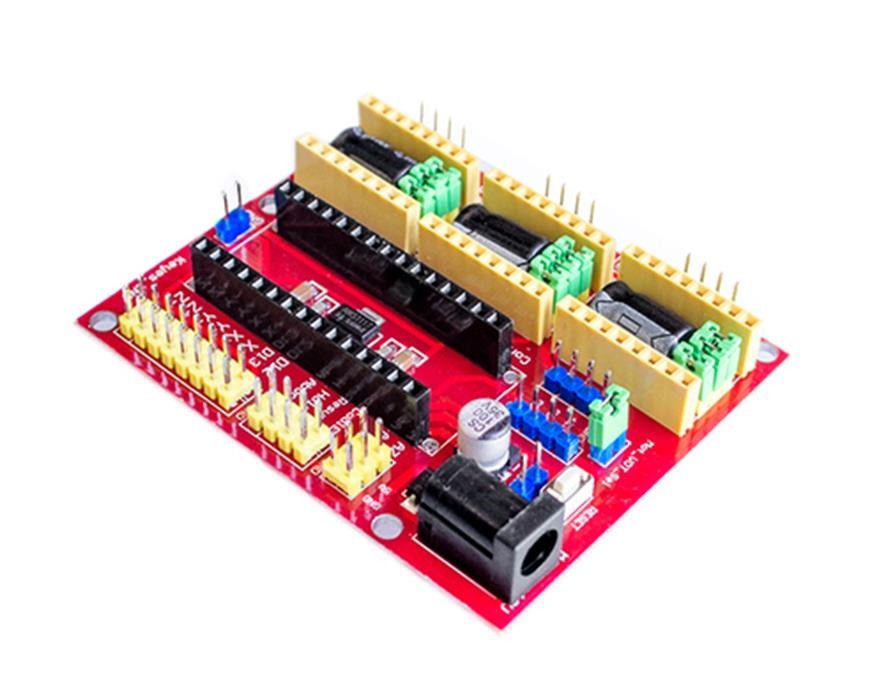

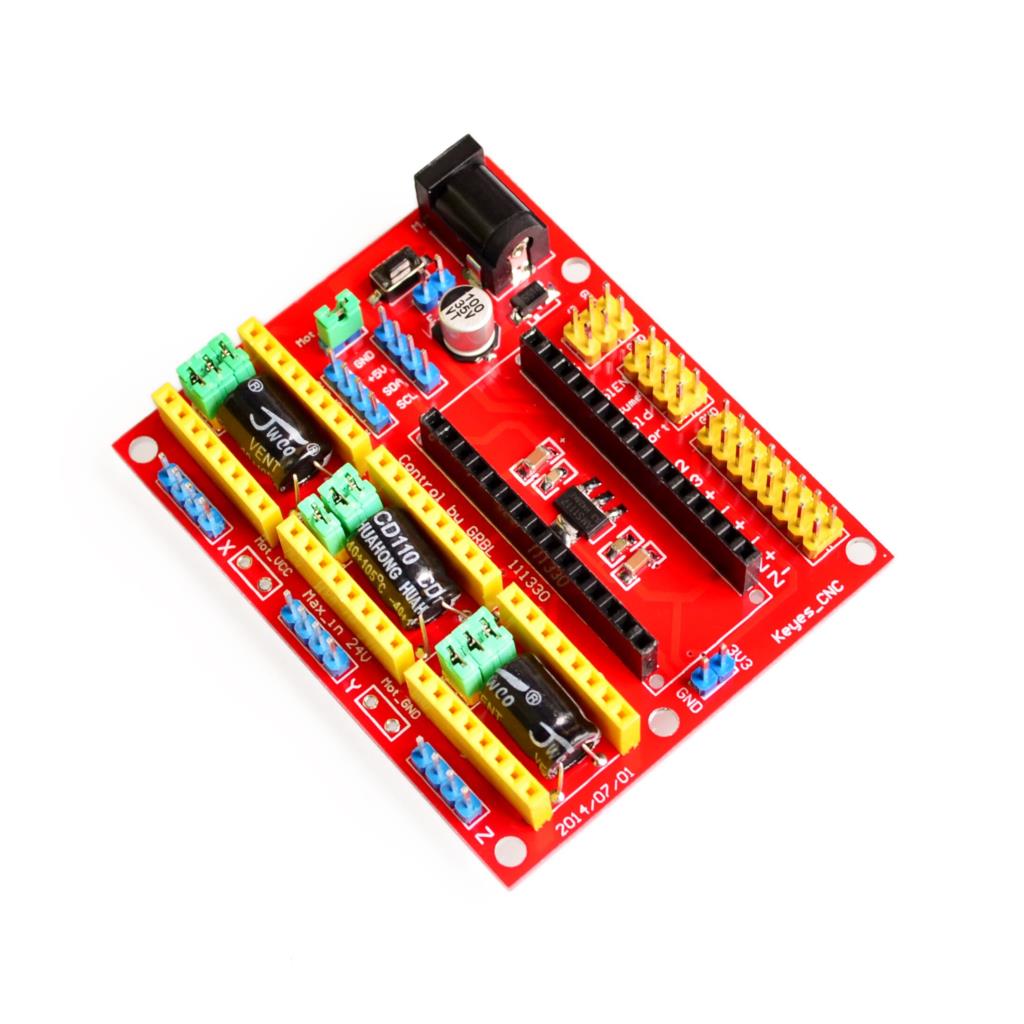

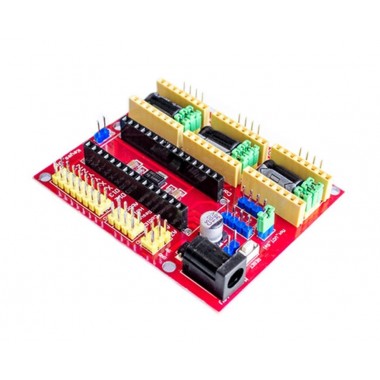

CNC shield v4

Nueva version del shield de Arduino para control CNC o impresión 3D. Brinda capacidad para 3 drivers A4988 y posee un slot compatible con Arduino Nano. Compatible con GRBL.

COD: HTHR0657

Peso: 0.033 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 981.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction:



CNC Shield V4:

CNC shield v4.0 needs to work with Arduino nano ch340 . It can be used as driver expansion board for engraving machines. It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.



Specification:

1.3 axis stepper motor driver.
2.Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine.
3.2A can be controlled within the two-phase four-wire stepper motor.
4.Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
5.Released the I2C interface, you can connect to the LCD I2C or other I2C module.
6.power DC5v interface, 7.5-12V voltage input.
7.GRBL compatible.
8.Worked with arduino nano.



Application:

  • 3D Printer.
  • Engraving machines.



Kit list:

1x CNC Shield V4.0.
