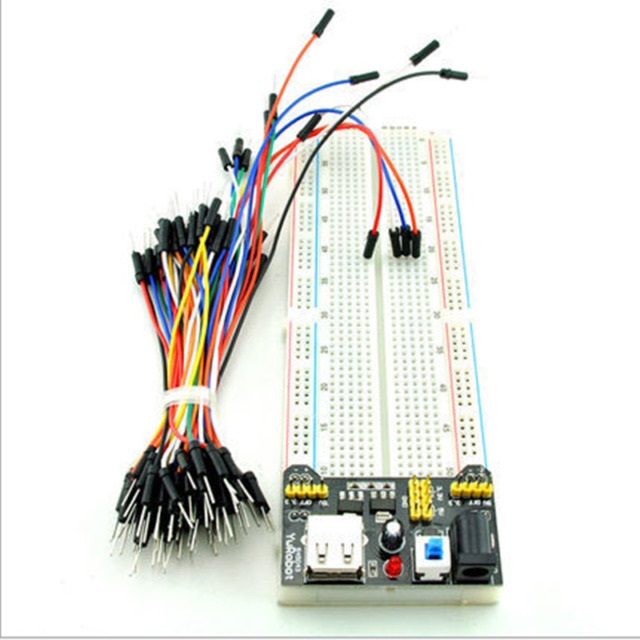

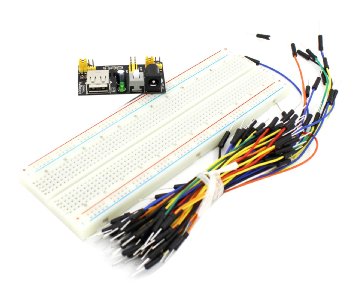

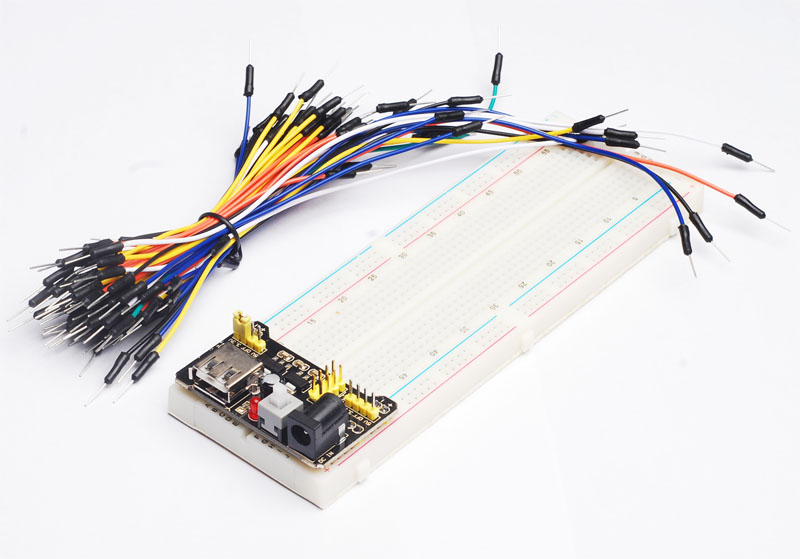

MB102 Breadboard Module + 830 Holes Breadboard + 65pcs Jumper Wire

MB102 breadboard module MB102 830 holes breadboard 65pcs jumper wire

Interesante Kit para experimentación en proyectos de electrónica y Arduino. El mismo incluye una Protoboard de 830 puntos, una fuente de alimentación con salida de 5v y 3.3v compatible con la protoboard, y 65 cables macho-macho para realizar conexionados.

COD: HTHR0257

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 7679.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:



MB-102 830 Point Solderless PCB Breadboard:

  • Quantity: 1 Pc.
  • Model: MB-102.
  • Dimension: 16.7 x 5.7 x 1cm.
  • Tie Points: 830 tie points (consists of: 630 tie-point terminal strip, 200 tie-point distribution strips).
  • Matrix: 126 separate 5 point terminals, plus 4 horizontal bus lines (Power Lines) of 50 test points each.
  • Wire size: Suitable for 20~29 AWG (0.3mm ~ 0.8mm) wires.



MB-102 Power Supply Module:

  • Input voltage: 6.5V ~ 12 V DC / USB power supply.
  • Output voltage: 3.3V / 5V can switch over.
  • Maximum output current: <700mA.
  • Fluctuation two road independent control, can switch over to 0V, 3.3V, 5V.
  • On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
  • Size: 5.3 x 3.2 x 2.5cm.



Note: If using the USB can not work, please use DC power.



Jump Cable Wires:

  • Breadboard jumper cable wires.
  • Typically used for electronics projects.
  • Wires are flexible, durable, reusable, easy to trace.
  • Easy to connect and disconnect.
  • Quantity: 65 Pcs.



Package included:

  • 1 x MB-102 Solderless Breadboard.
  • 1 x MB-102 Breadboard Power Supply.
  • 65 x Breadboard Jumper Cables.
