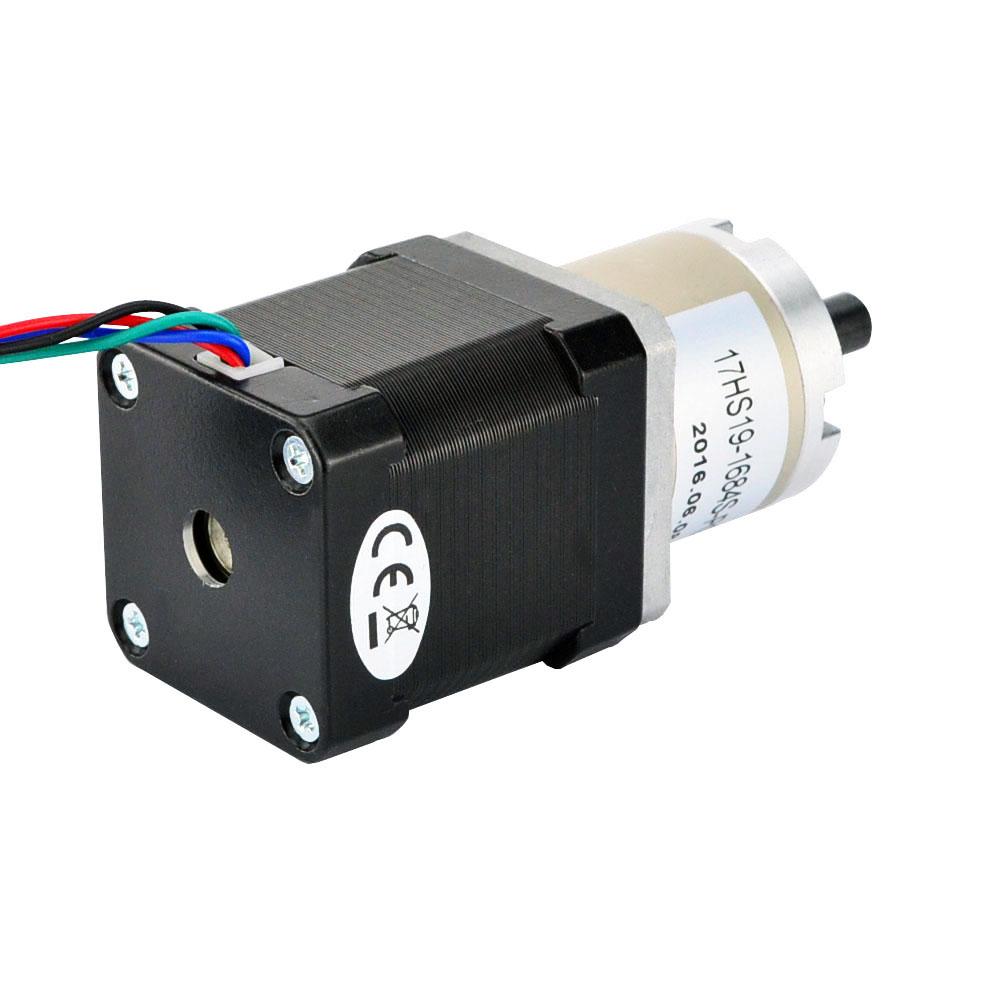

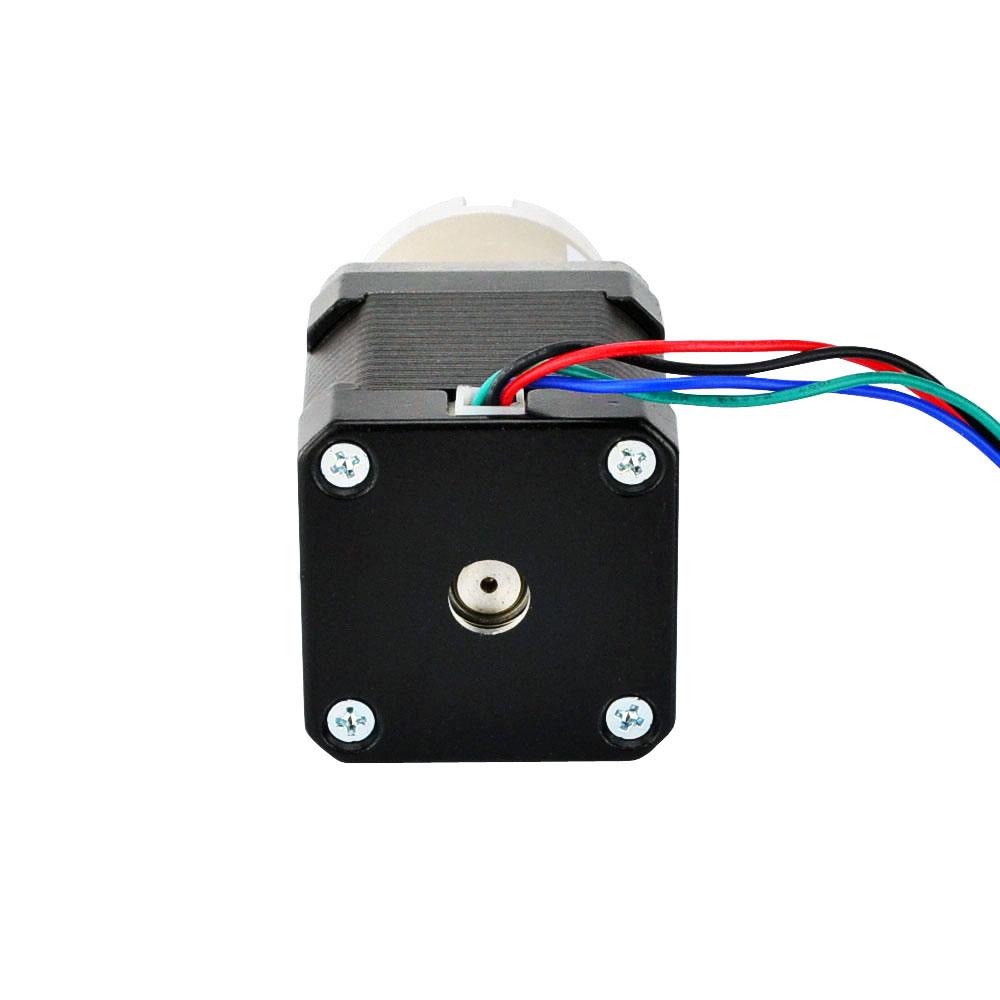

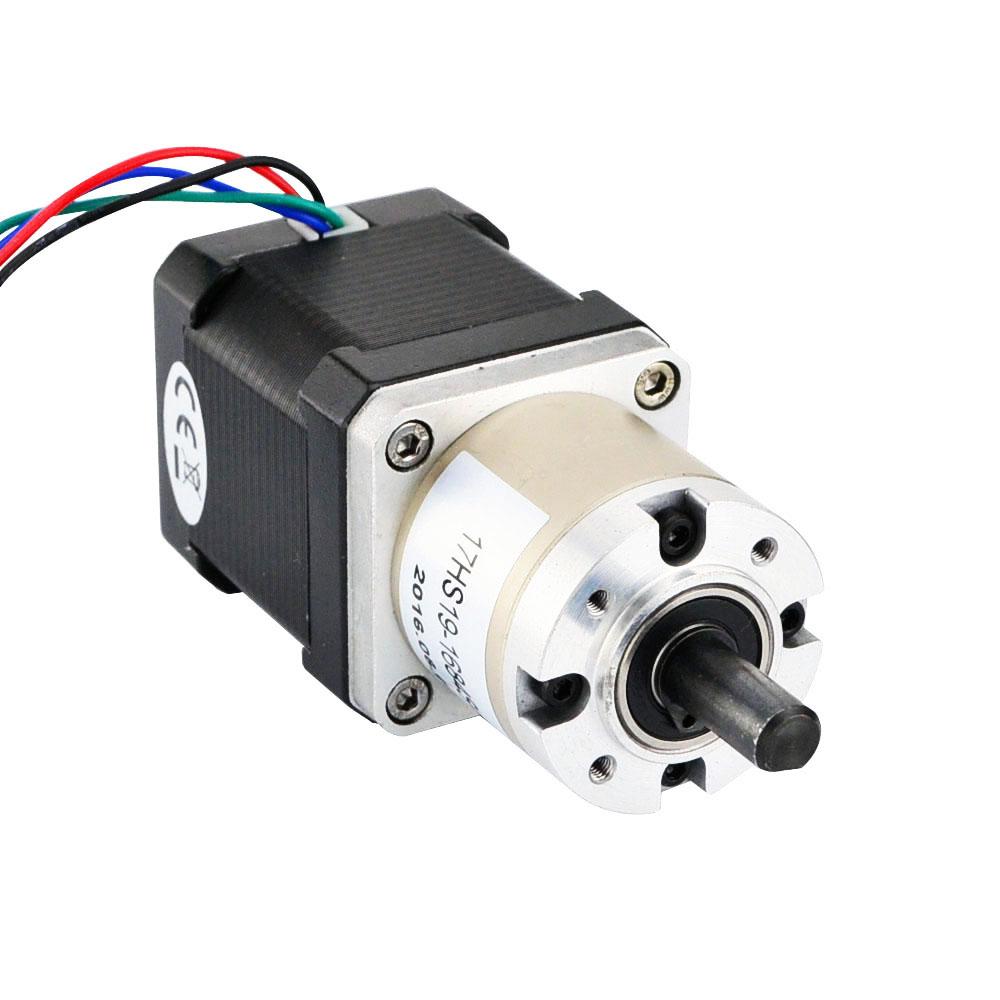

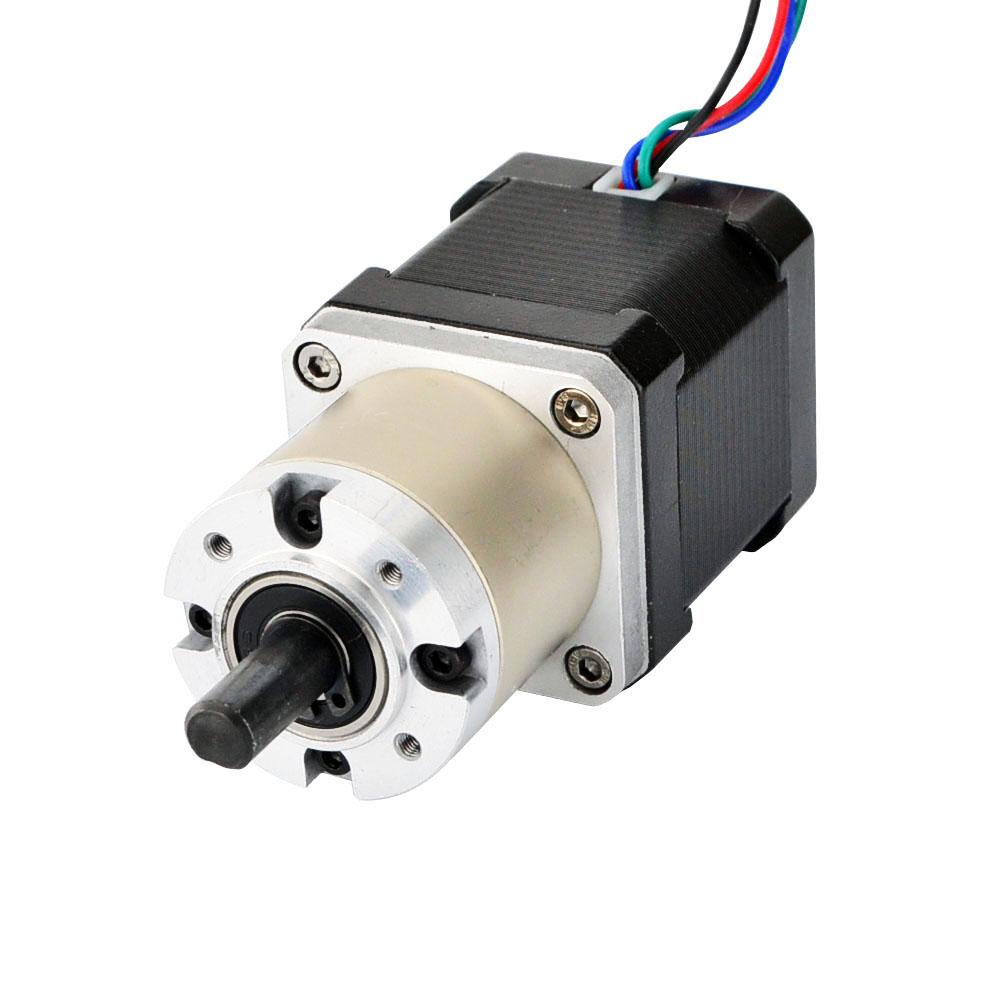

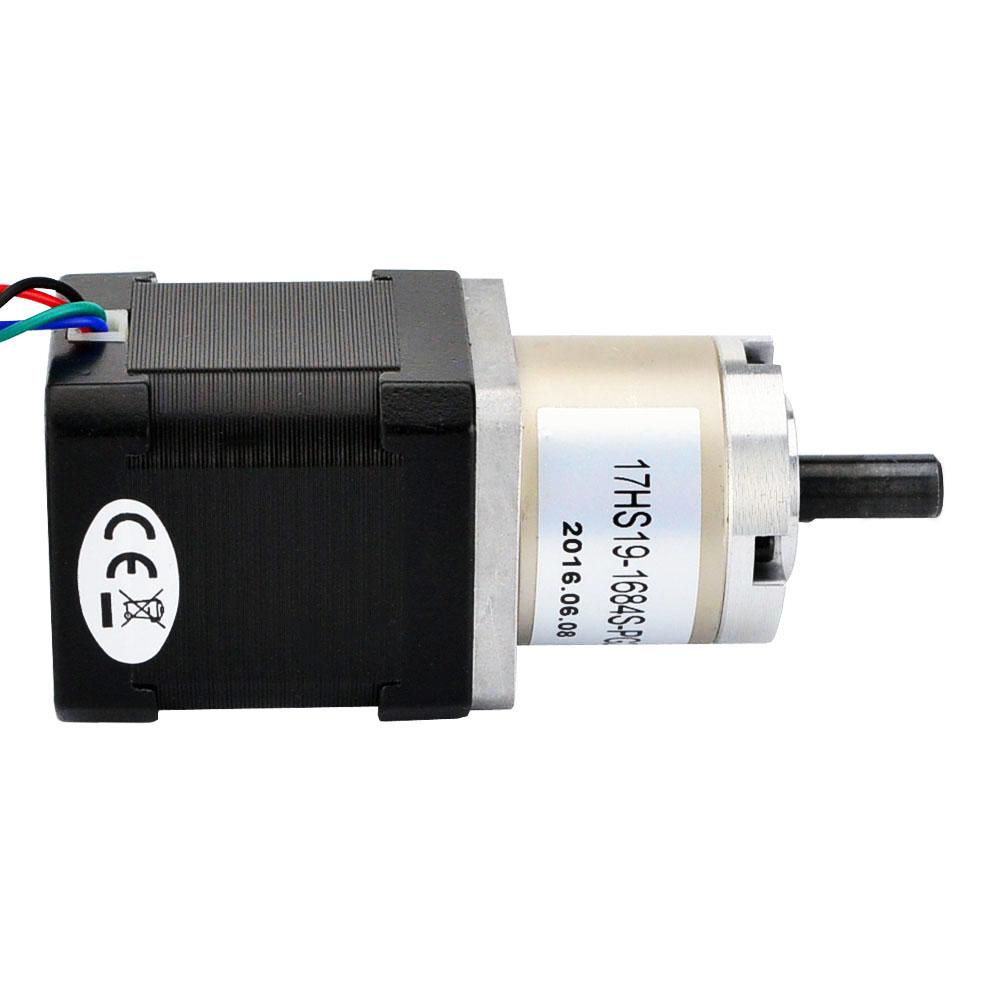

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 27:1 Planetary Gearbox
Motor paso a paso Nema 17 con cuerpo de 48 mm y corriente nominal de 1,68 A. Integra una caja de engranajes con una relación de transmisión de 26.85: 1. Es una buena solución para aplicaciones que tienen espacio limitado y necesitan baja velocidad y/o par elevado.
COD: 17HS19-1684S-PG27
Peso: 0.570 Kg
Disponibilidad: Sin Stock
ARS 112192.00
El producto no está disponible para la venta en este momento
Características
Electrical Specification:
- Manufacturer Part Number: 17HS19-1684S-PG27.
- Motor Type: Bipolar Stepper.
- Step Angle: 0.067 deg.
- Holding Torque without Gearbox: 44Ncm(62.31oz.in).
- Rated Current/phase: 1.68A.
- Phase Resistance: 1.65ohms.
- Voltage: 2.8V.
- Inductance: 2.8mH ± 20%(1KHz).
Gearbox Specifications:
- Gearbox Type: Planetary.
- Gear Ratio: 26.85: 1.
- Efficiency: 81%.
- Backlash at No-load: <=1 deg.
- Max.Permissible Torque: 3Nm (425oz.in).
- Moment Permissible Torque: 5Nm (708oz.in).
- Shaft Maximum Axial Load: 50N.
- Shaft Maximum Radial Load: 100N.
Physical Specifications
- Frame Size: 42 x 42mm.
- Motor Length: 48mm.
- Gearbox Length: 35mm.
- Shaft Diameter: Φ8mm.
- Shaft Length: 20mm.
- D-cut Length: 15mm.
- Number of Leads: 4.
- Lead Length: 500mm.
- Weight: 570g.
Connection:
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Gearbox Specification |
|
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 81% |
| Gear Ratio | 26.85:1 |
| Gearbox Length(mm) | 35 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 300 |
| Max. Permissible Torque(oz.in) | 424.8 |
| Moment Permissible Torque(Ncm) | 500 |
| Moment Permissible Torque(oz.in) | 708.1 |
| Shaft Maximum Axial Load(N) | 50 |
| Shaft Maximum Radial Load(N) | 100 |
Motor Specification |
|
| Inductance(mH) | 3.2 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.8 |
| Rated Current(A) | 1.68 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 52 |
| Holding Torque w/o Gearbox(oz.in) | 73.6 |
| Motor Length(mm) | 48 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
Physical Specification |
|
| Weight(g) | 600 |
Resources:
- Full Datasheet: 17HS19-1684S-PG27.pdf
- Torque Curve: 17HS19-1684S-PG27_Torque_Curve.pdf
