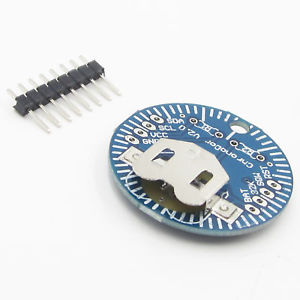

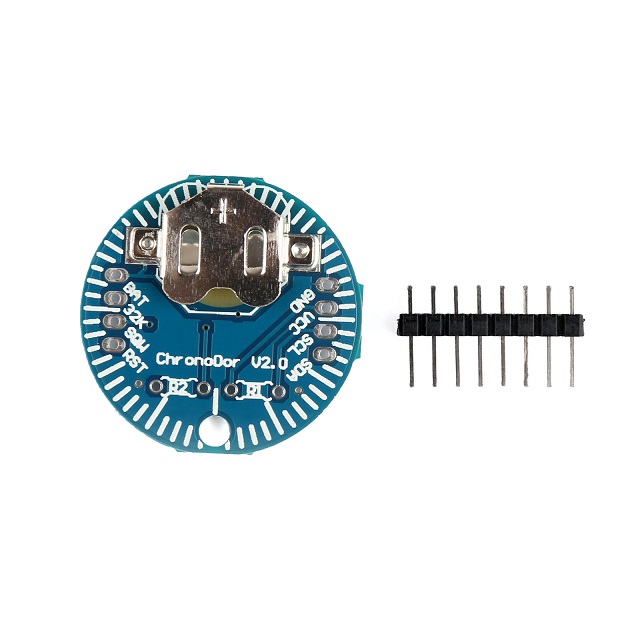

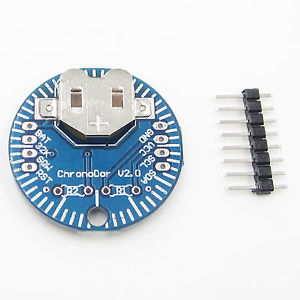

I2C DS3231SN Real Time Clock Module

I2C DS3231SN Real Time Clock Module

El DS3231 es un reloj en tiempo real (RTC) con interfaz I2C de bajo costo y extremadamente preciso que integra un oscilador (TCXO). El módulo incorpora una batería que le permite seguir operando de forma autónoma cuando la alimentación principal del mismo es interrumpido. Compatible con Arduino.

COD: HTHR0214-160A

Peso: 0.004 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5179.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:



  • Can provide for arduino libraries and routines.

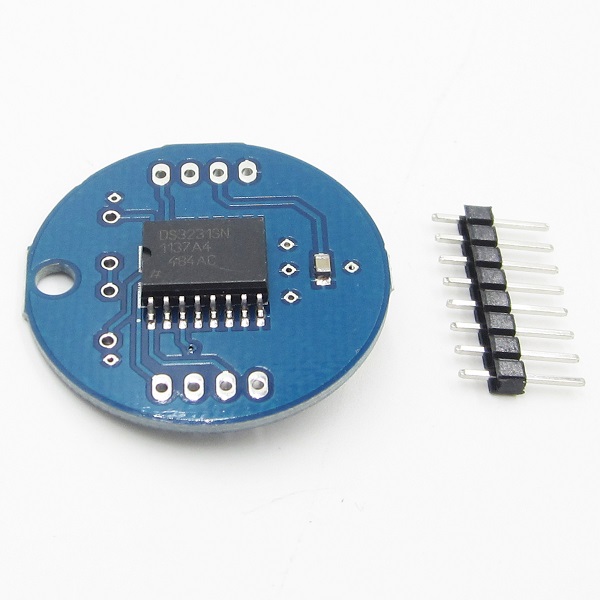

  • Use DS3231SN precision clock chip, built 32.768 crystal.
  • Can provide precise year, month, day, hour, minute, second, in the morning and afternoon data.
  • You can output 1Hz signal, a second output signal.
  • You can use the CR1220 coin cell holding travel time.
  • The pull-up resistor R1 R2 own welding on the I2C bus.
  • Small size 3cm in diameter.
  • Pin spacing 22.86mm.



Specifications:



  • Color: Blue.
  • Size: diameter 3cm.
