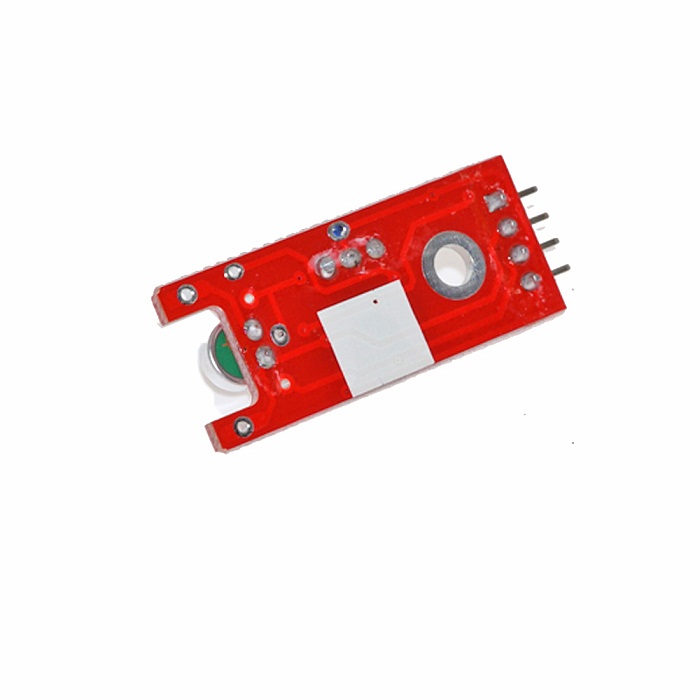

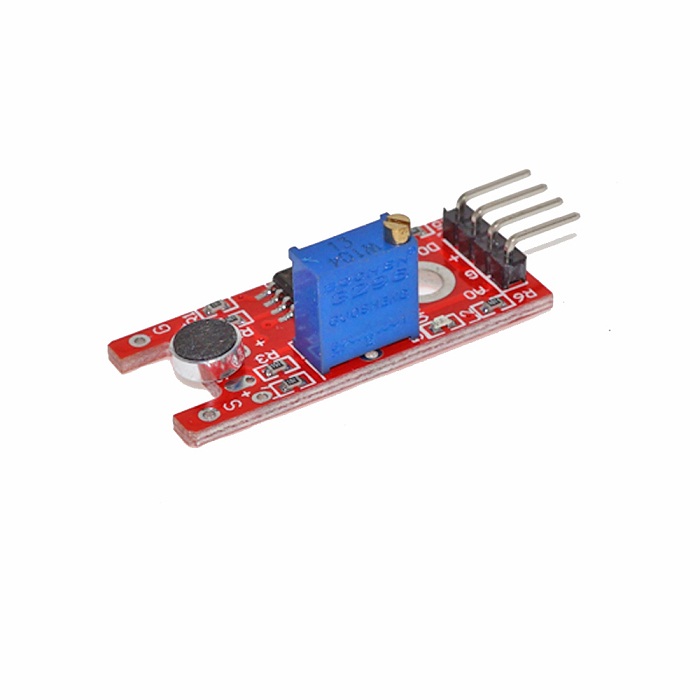

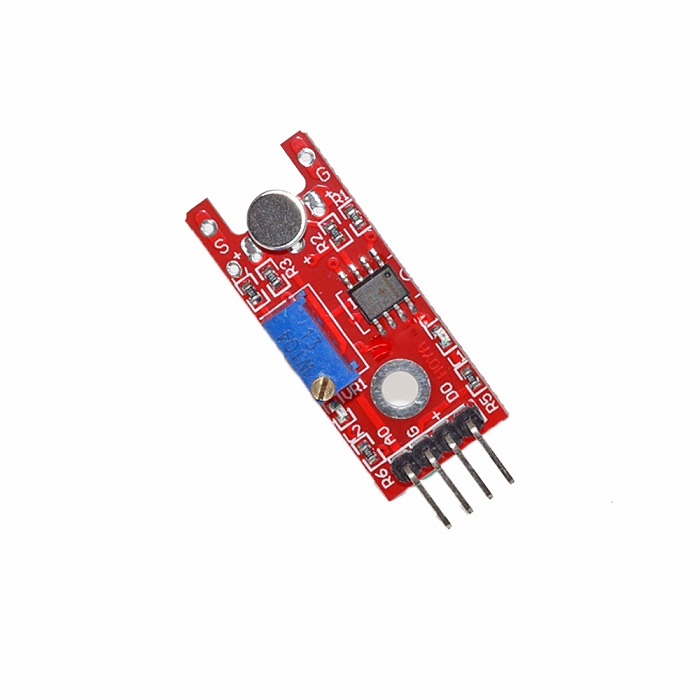

Sound Microphone Sensor Module for Arduino

Sound Microphone Voice Sensor Module Open Source for Arduino

Sensor de sonido KY-038 con salida analógica y digital. Posee preset para ajuste de umbral.

COD: FUT3135

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 463.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description:


Open Source Red Microphone Voice Sound Sensor Module For Arduino

Description
porduct name
Microphone Voice Sensor Module
Main Features
This is microphone voice sound sensor module for (For Ardu)
Model: KY-038
Adopt LM393 main chip
Electric condenser microphone
Features Single channel signal output
Low level output signal used for sound control light
Great module for sound alarm system
Working voltage: DC 4-6V
specifications
AO: analog output sensor
GND: ground
VCC: Power supply input range: 3V-24V.
DO: Digital Output (comparator output)
Two red LED indication: POWER and SENSOR.
POWER: Power is off. SENSOR: When the microphone
senses sound reaches a certain value, this LED light
Product weight
20g
size
32mm*17mm*8mm
Package Contents
1 xMicrophone Voice Sensor Module
