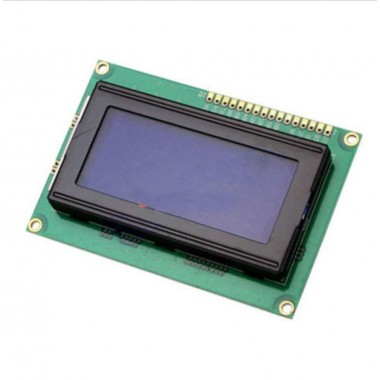

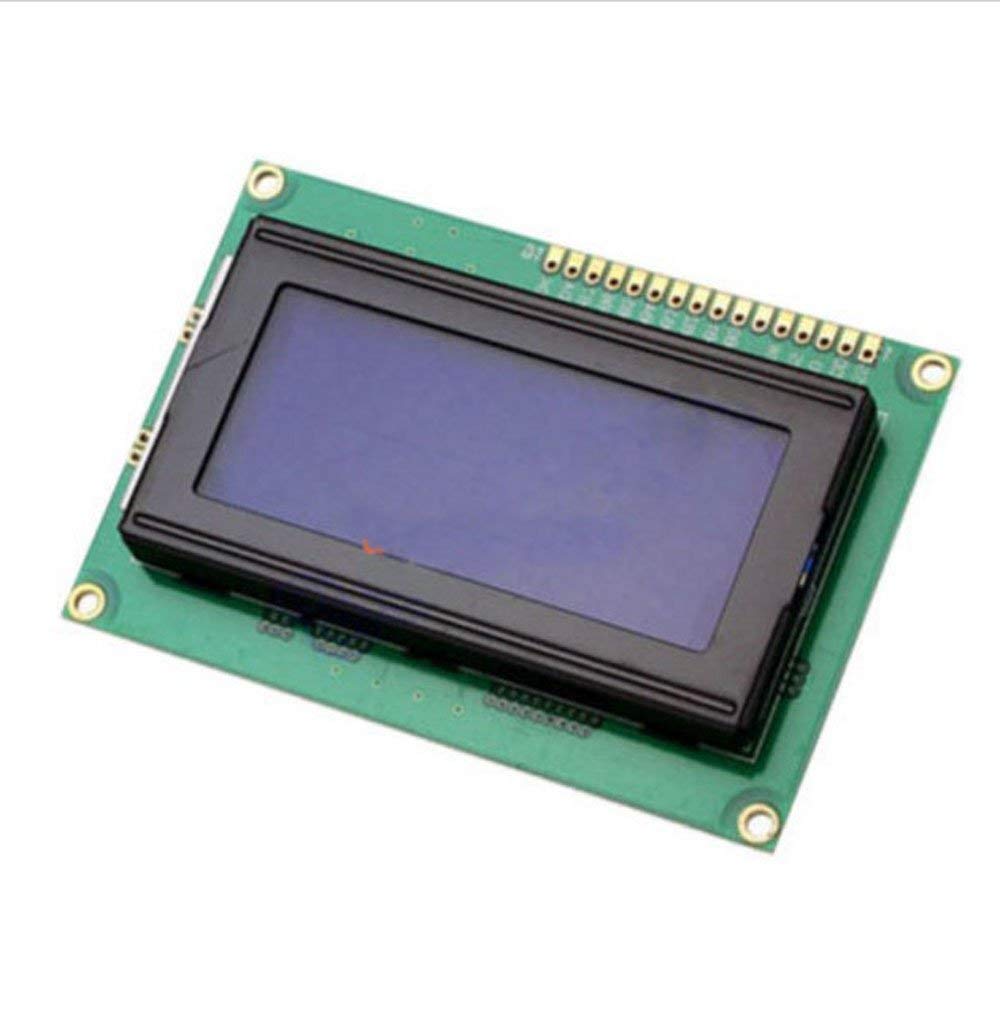

1604 Character LCD Module - Blue White
Display LCD de 16x4 caracteres con backlight azul.
COD: HTHR0409
Peso: 0.058 Kg
Disponibilidad: En Stock
ARS 15964.00
El producto no está disponible para la venta en este momento
Características
Features:
- Display: 40×2 Characters.
- Outline: 87.0x60.0x14.0.
- VA: 61.8x25.2.
- Controller: SPLC780D.
- Character: 2.95x4.75.
- Driver: 1/16.
- Backlight: Blue.
- Gross Weight (kg): 0.0700.
- Outline Dimension: 87.0(W) x60.0 (H) x 12.5(T) mm.
- Visual Area 61.70x25.20mm.
- Active Area 56.20x20.80mm.
- Dot (Pixel) Size: 0.55x0.55mm.
- Dot Pitch: 0.60x0.60mm.
- IC Package COB , IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 , Interface 6800 4-bit Parallel.
- Backlight Color blue Color.
- Backlight Current (Typ) 45mA.
- Power Supply(Typ) 5.0V.
- Supply Current for LCM(Max) 1800uA.
- Operating Temp: -20 C~70C.
- Storage Temperature: -30 C ~ 80 C.
