1602 LCD USB Mini Drive Board, RPI Driver Free

1602 LCD USB Mini Drive Board, RPI Driver Free

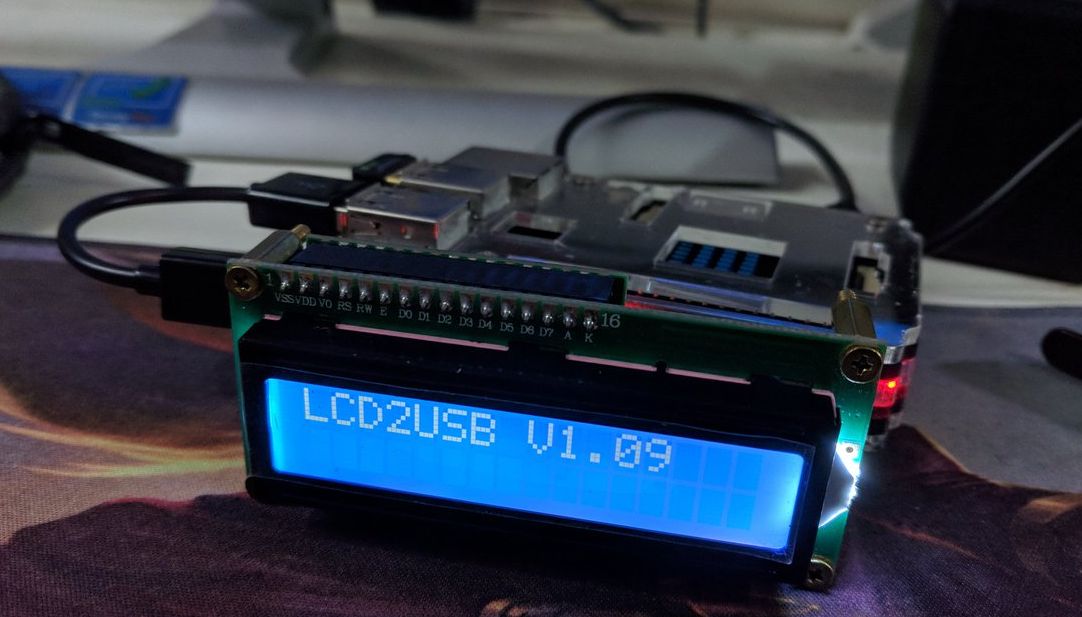

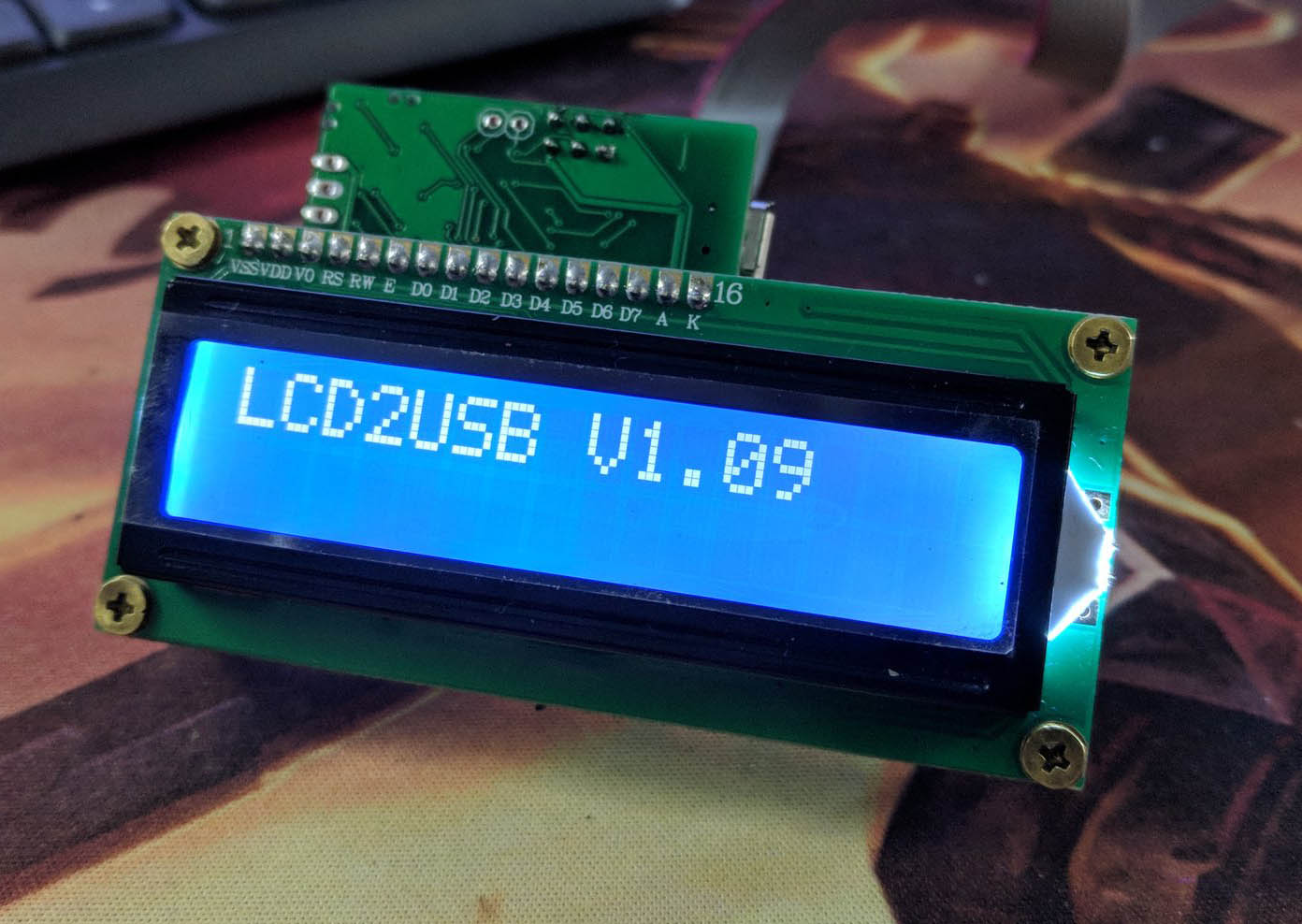

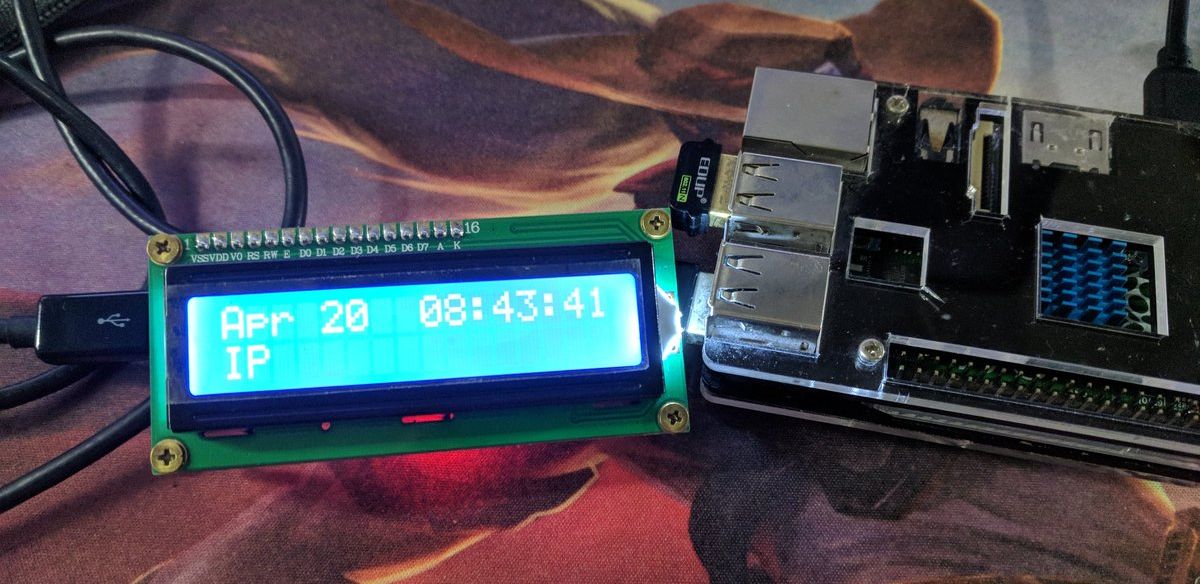

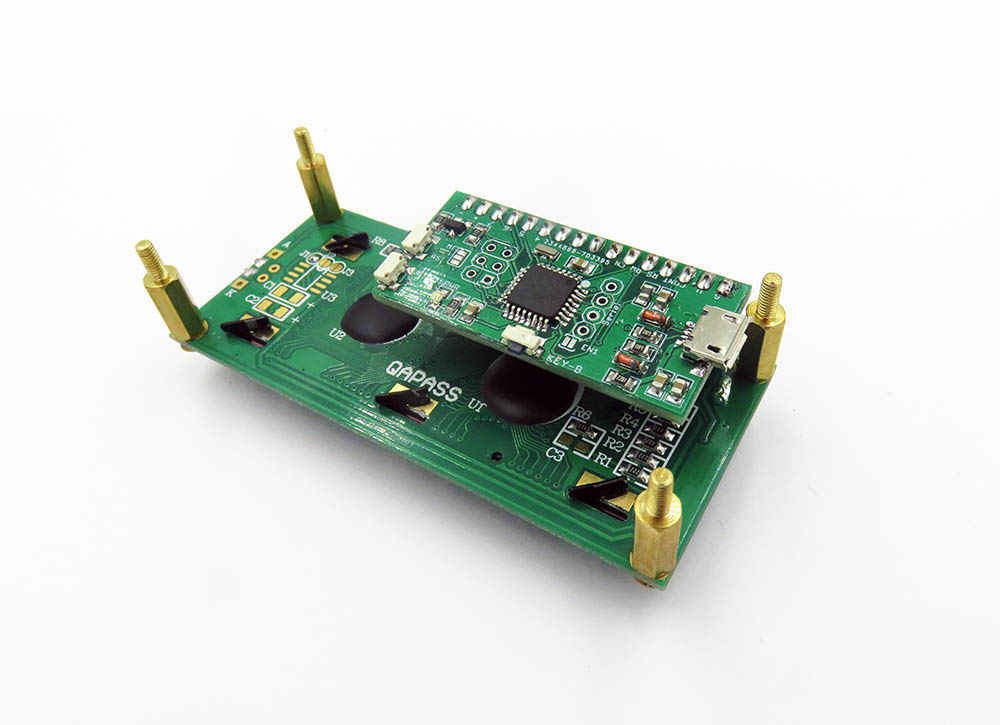

Controla un display LCD (1602) desde tu Raspberry Pi a través de su puerto USB con esta pequeña placa adaptadora. Incluye tira de 16 pines hembra para soldar y cable USB a microUSB. No incluye el display, el cual puede adquirirse por separado.

COD: TROILC1073

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1026.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Description:

  • Based on LCD2USB project, simplified and minimium board design for only 1602 LCD
  • Based on VUSB technology, can receive data input directly via microUSB port.
  • Preflashed with LCD2USB firmware.
    • Driver free on raspberry pi system – install python module by command “sudo pip install lcd2usb”. Should be also possible for many linux based projects.
    • On windows, need install libusb32 driver. Can use demo in project github to test.
    • Save your RPI a lot of IOs.
  • Also two detectable input buttons, generally called key-a and key-b on board.
  • Lead out serial UART debug port, but not used by default firmware.
  • More demo code for python in linux please see on this page.
  • Package

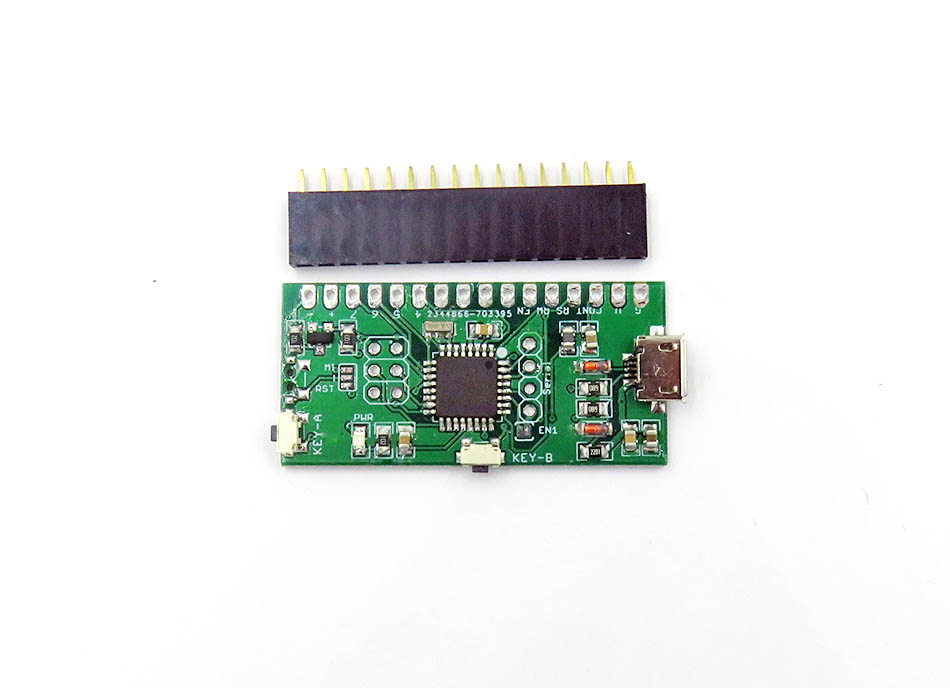

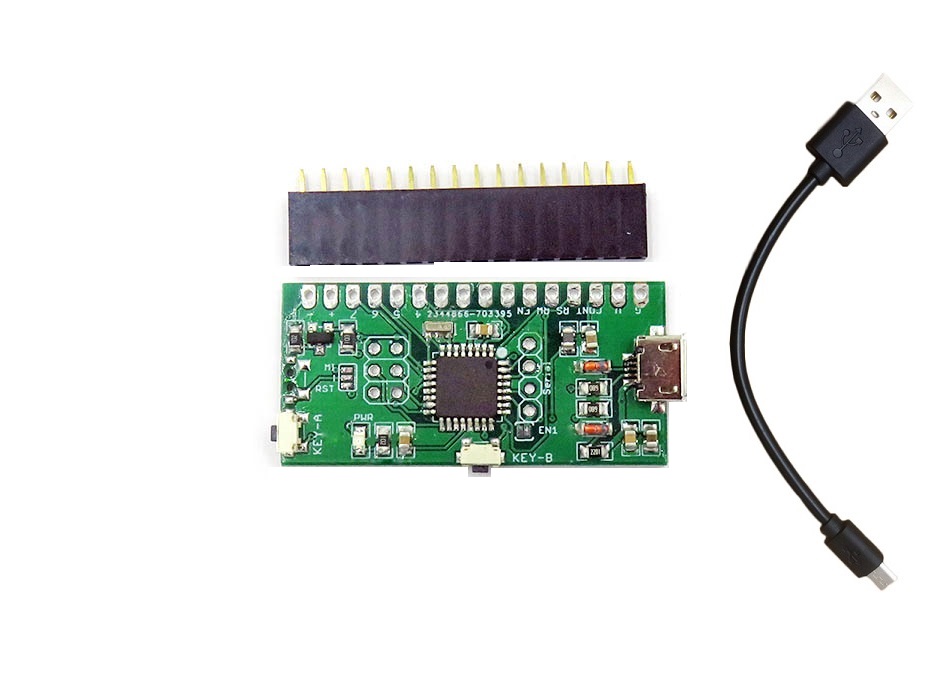

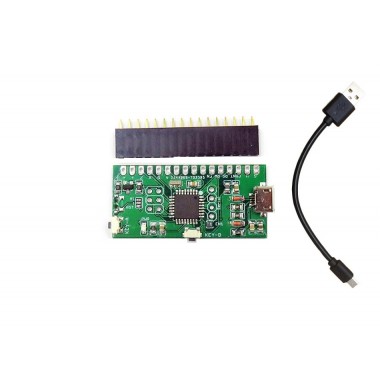

    • Include main board, 16P pin female header not pre-soldered.

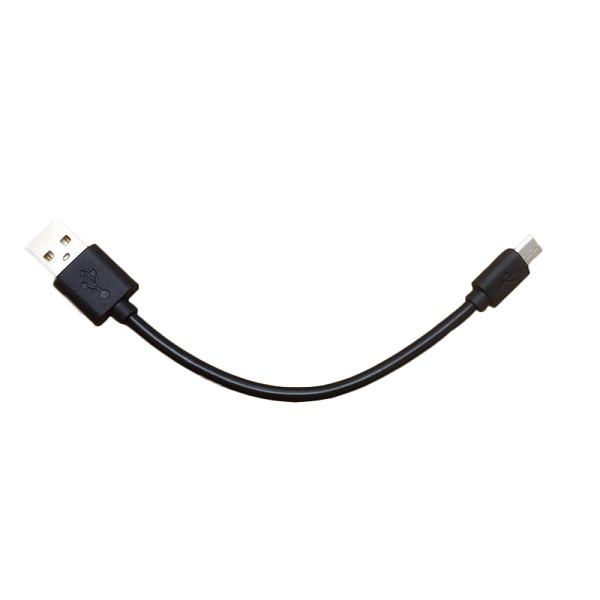

    • From 2018 April, 20th, include a short handy USB cable, super good and well tested.

Display Link:

https://www.openhacks.com/page/productos/id/54#.W9dgwXszZhE
