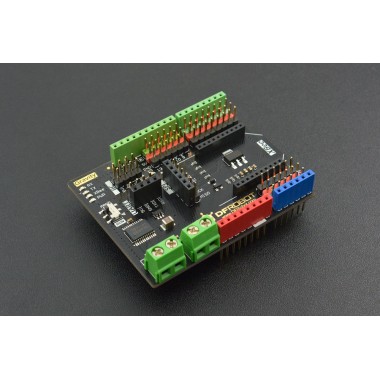

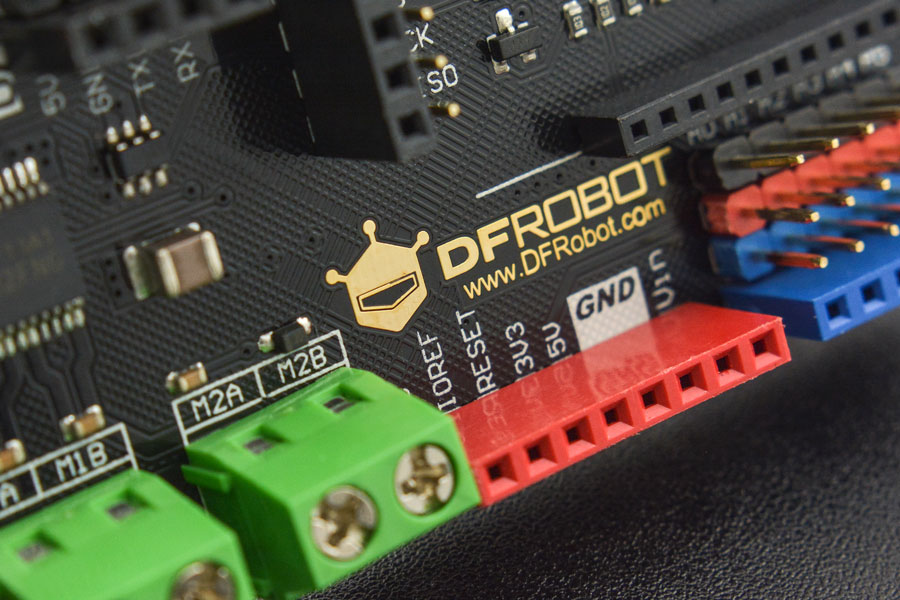

Gravity: IO Expansion & Motor Driver Shield

Gravity: IO Expansion & Motor Driver Shield

Shield para control de motores DC diseñado para ser conectado a Arduino UNO R3. Ofrece compatibilidad con sensores Gravity e integra un controlador de motor dual TB6612FNG. También tiene un socket XBee, una interfaz I2C y un puerto UART, lo que facilita enormemente el conexionado con dispositivos externos.

COD: DFR0502

Peso: 0.036 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 55458.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION:

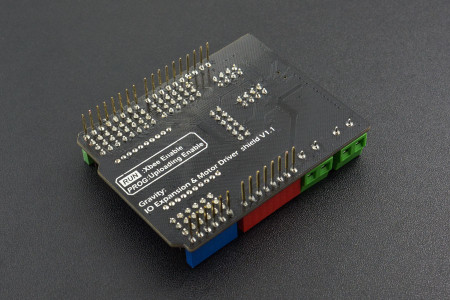

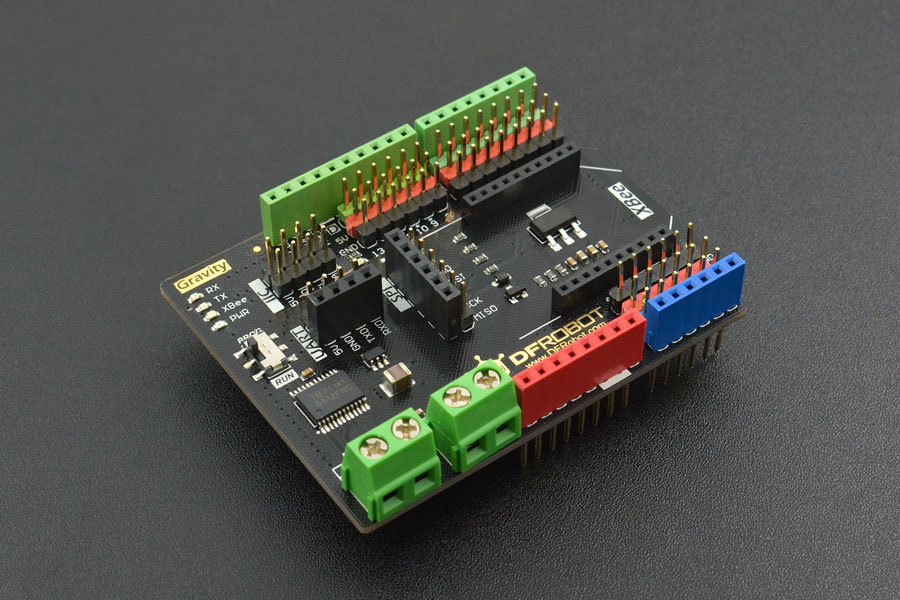

 Gravity IO Expansion Shield with Motor Driver is a new product designed for Arduino Boards. It combines IO Expansion Shield and DC Motor Driver Shield, equipped with Gravity sensor interface and TB6612FNG dual motor driver. It also has XBee socket, I2C interface and UART port, makes the connections more convenient.

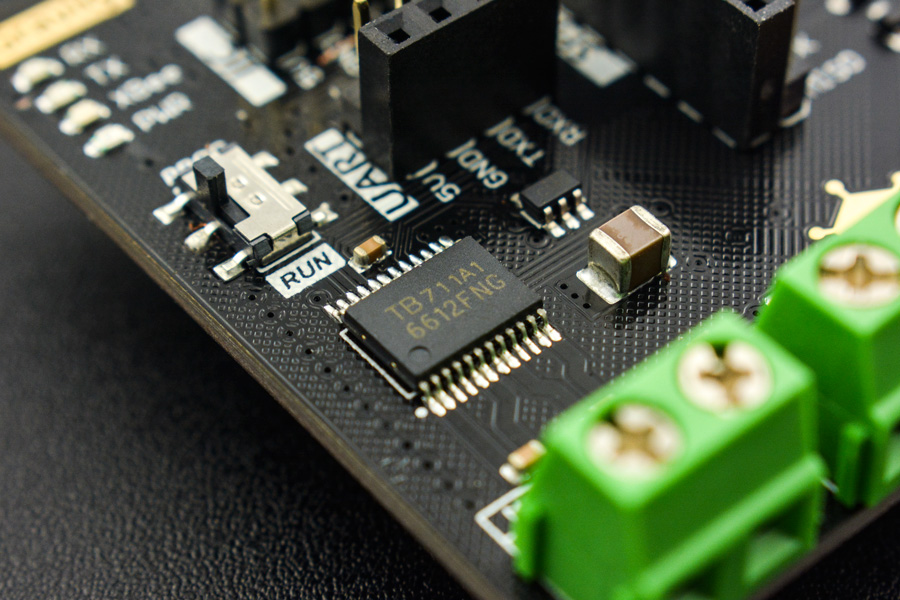

With TB6612FNG dual channel motor driver IC, the shield can drive 2x1.2A DC motors at the same time. It supports PWM speed control, each channel can output 1.2A continuous current and the peak current can reach to 3.2A. It is compatible with majority micro DC motors in the market. It is a solid choice for small intelligent robot controls, convenient and cost-effective.





FEATURES:

  • Compatible with Arduino UNO R3 Pinmap.
  • Gravity-3Pin interface, plug & play, esay to use.
  • Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee compatible.
  • Program download switch will avoid serial occupancy during Arduino UNO/Mega downloading.
  • 2x1.2A TB6612FNG DC motor driver (power from Vin port).





SPECIFICATION:

  • Digital interface: 14.
  • Analog interface: 6.
  • IIC interface: 2.
  • SPI interface (compatible with Arduino UNO R3): 2.
  • Serial port: 1.
  • XBee Slot: 1.
  • Output Current: 1.2A single channel continuous driving current.
  • Start/ Peak Current: 2A (continuous pulse)/ 3.2A (monopoles).
  • Input Voltage: 12V (peak value).
  • Occupying Pins: D4, D5, D6, D7 (caution: the pin is occupied when control the motor).

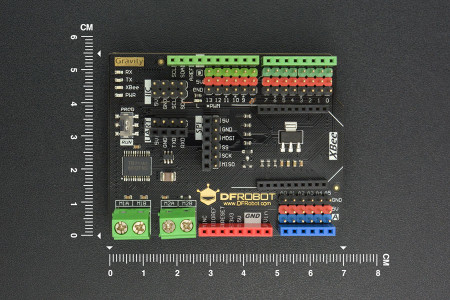

  • Size: 68.5mm×53.3mm (2.7 inch×2.1 inch).
  • Weight: 36g.





DOCUMENTS:
