Productos
IP Camera WDR IMX123+Hi3516D With Motorized Zoom Lens
Cámara IP CMOS de 4 Megapixels con soporte ONVIF. Integra una lente varifocal con distancia focal de 2.7mm a 13.5mm. Posee autofoco y zoom motorizado. Cuenta con tecnología H.264, y WDR (Wide Dynamic Range). Funciona a 30 fps.
COD: SIPE123DML27135
Peso: 0.200 Kg
Disponibilidad: Sin Stock
ARS 223154.01
El producto no está disponible para la venta en este momento
Características

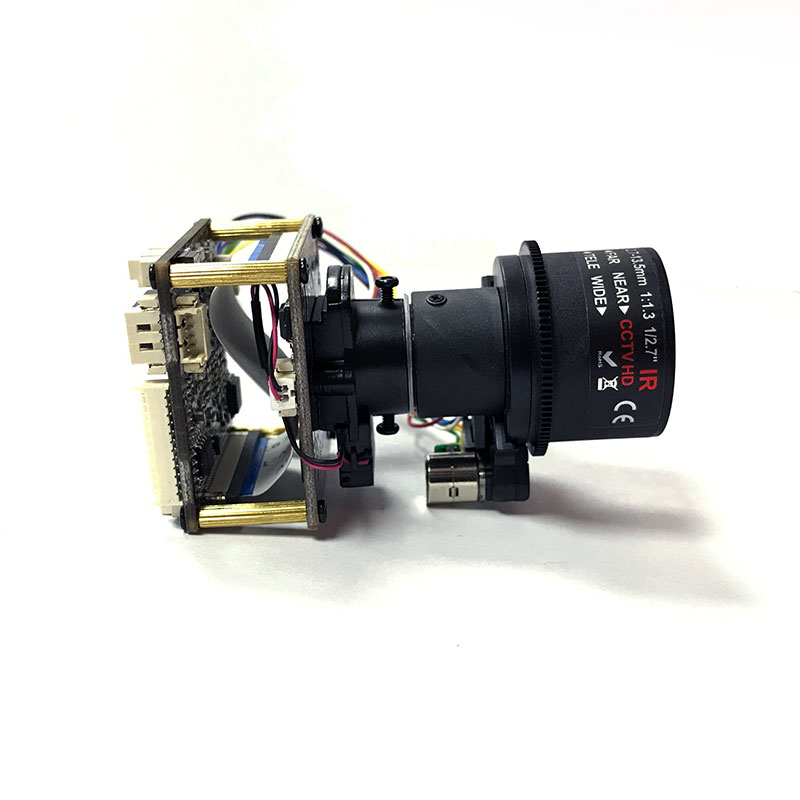

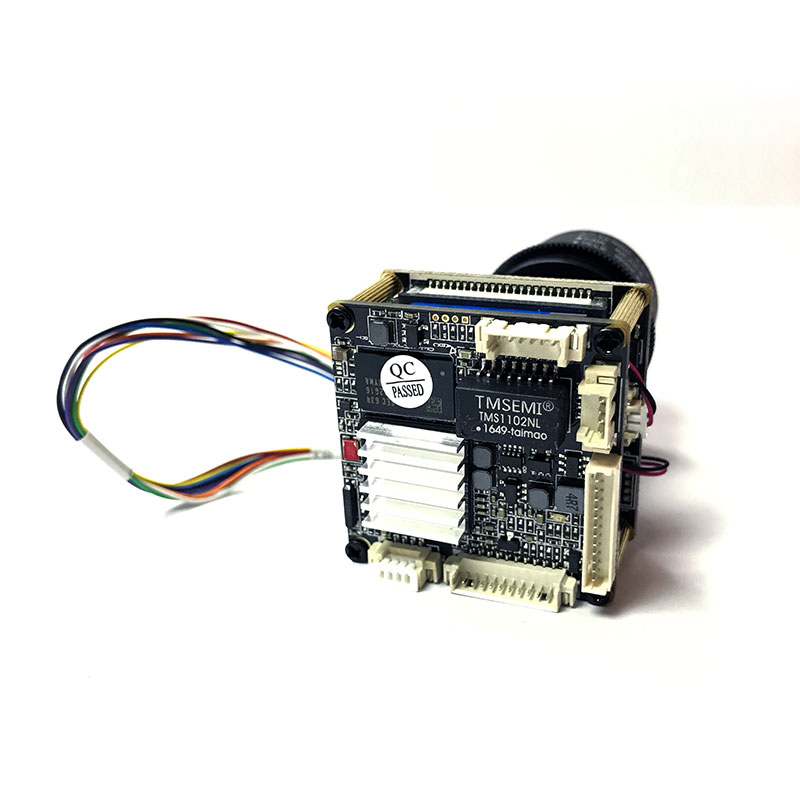

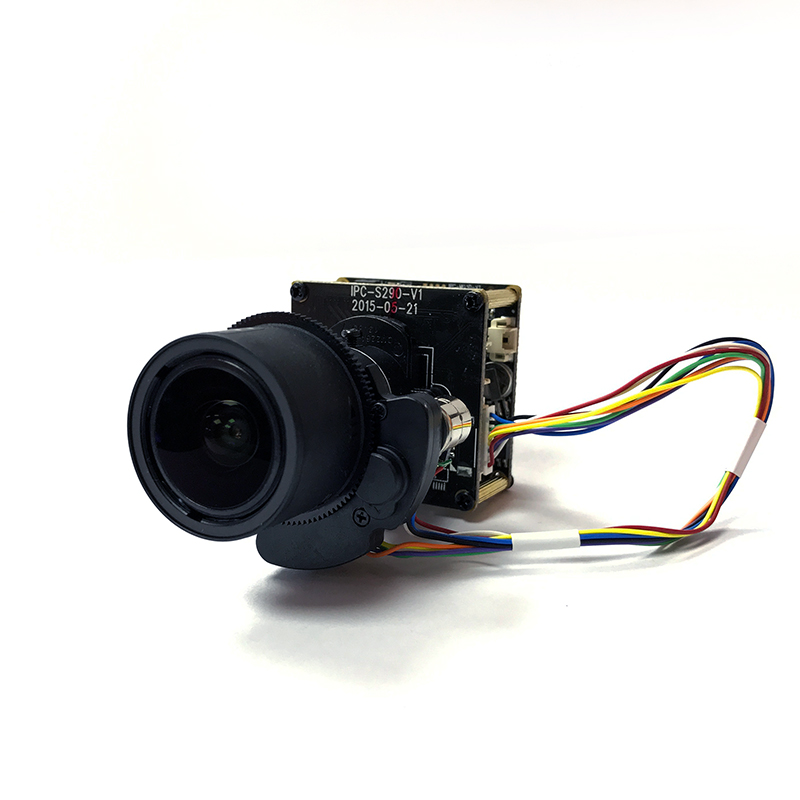

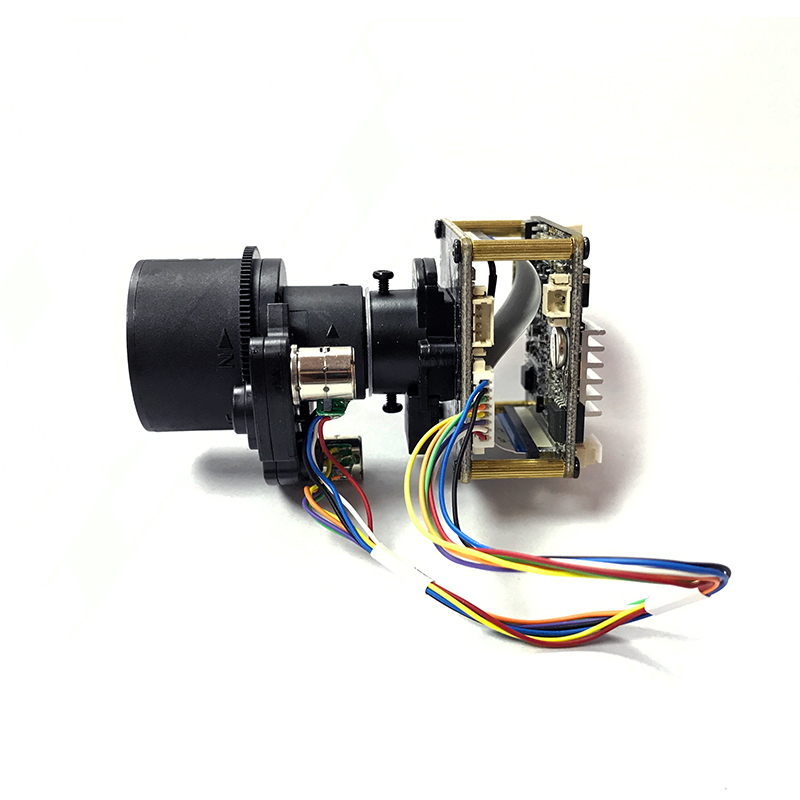

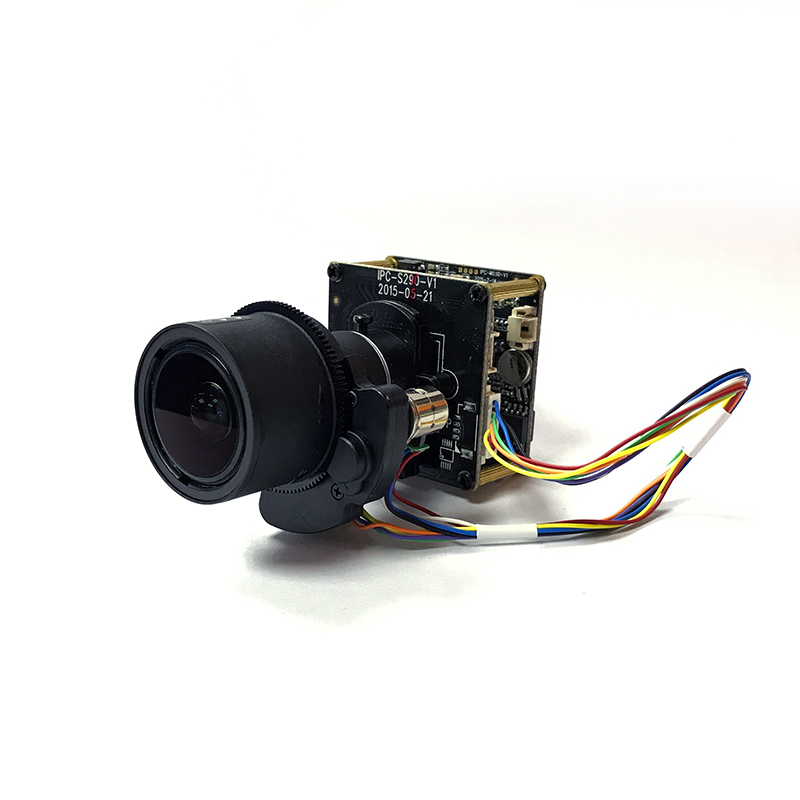

CCTV Camera Module (WDR IMX123+Hi3516D,With 2.7-13.5mm Motorized Zoom Lens
SIP-E123DML-27135
| Model | SIP-E123DML-27135 |
| Camera Type | Low Light H.265 3MP WDR IP Camera Module |
| Camera | |
| Image Sensor | 1/2.8" 3.21M-Effective Pixel Color CMOS Image Sensor IMX123 |
| DSP | Hisilicon 3516D |
| Effective Pixels | 2065 (H) X 1553 (V) approx. 3.21M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | WDR >120db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Lens | |

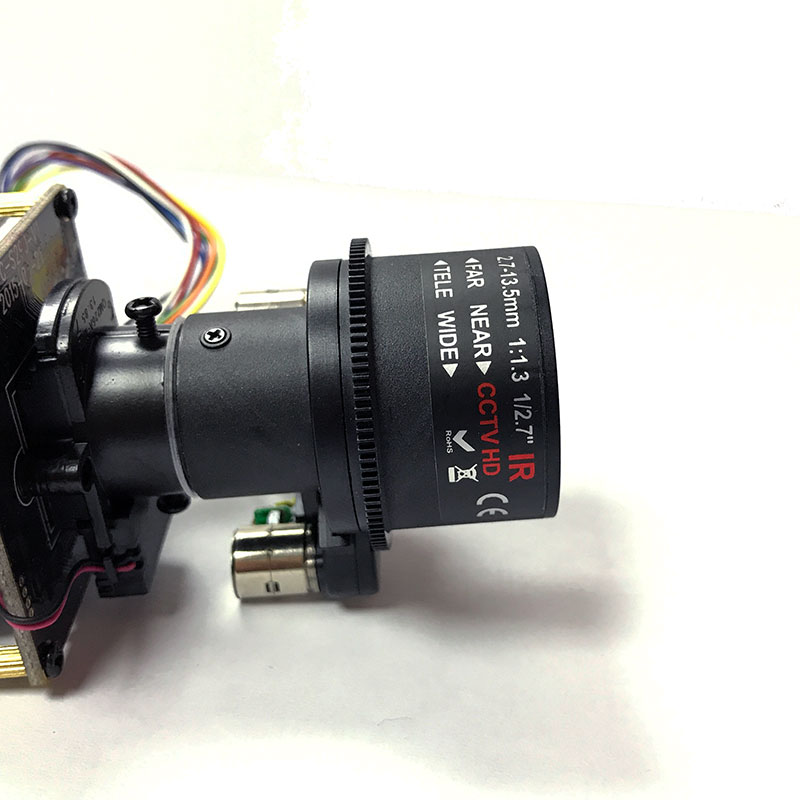

| Lens Type | 1/2.7" 4MP ø14 2.7-13.5mm motorized focus auto zoom lens |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream:2048X1536, 1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional |
| RS485 | 1ch |
| USB | 1ch (Support 32G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Optional function# | |
| Memory Card# | Support Max 32G TF Card,1ch alarm output |
| WIFI # | 802.11b/g/n |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
| #Remark: WiFi,POE,TF Card functions are optional,If need,please consult with us. | |
http_api_2018-7-12.pdf (2006 Kb)
