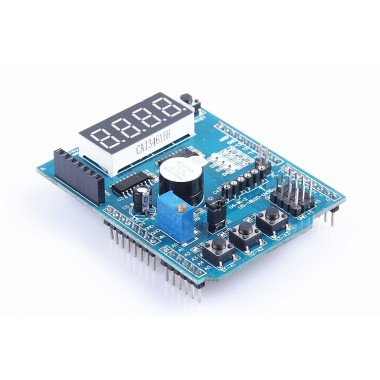

Multi-function shield for Arduino

Multi-function shield for Arduino

Shield multifuncional para Arduino. Su diseño permite conectar fácilmente sensores de temperatura, de distancia y de movimiento, módulos de reconocimiento de voz, servos y módulos Bluetooth y WiFi, etc. Integra buzzer, display de 4 dígitos, potenciómetro, pulsadores, etc. Apropiado para fines educativos y de investigación o experimentación.

COD: HTHR0214-74A

Peso: 0.027 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 694.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product description:

This is an open-source code base and Simple I/O platform. Can be used to complete the development of electronic components such as Switch or Sensors or other controllers , LED, stepper motor or other output device . Bluetooth, wireless interfaces, voice module , voice recognition module can be used for wireless communication experiment servo interface, easy to drive servos infrared detection interface, easy and infrared docking realization of human traffic statistics , etc.



Features:

  • Compatible with Arduino 2009, UNO, LEONARDO, 2560 and other controllers.
  • 4 LED lights (LED indicator to know the importance of doing in the actual project, with this indicator can work directly with the program status indicators for easy debugging.
  • 3296 Precision adjustable potentiometer, analog input port (can be used to control LED brightness, turn the steering angle, digital voltage, etc.).
  • Four digital (using 74HC595 driver provincial IO learning SPI), you can do digital display test (can display temperature, voltage, counter value, etc.).
  • Three separate buttons, a reset button, you can do key experiments (HMI).
  • Name: Arduino multifunction expansion board.
  • Size: 69 * 54 * 11mm (L * W * H).
  • Net weight: 27g.


Uses include:

  • The buzzer sound can be used for Sound experiments.
  • Bluetooth, a wireless interface, voice module, voice recognition module, can be used for wireless communication experiments.
  • Servo interface, easy to drive steering.
  • Infrared detection interface to facilitate docking and infrared, to achieve human traffic statistics.
  • DS18B20 temperature sensor interface, you can do temperature measurement experiment. (Not including DS18B20).
  • LM35 temperature sensor interface, temperature measurement can be done experiment (not including LM35).
  • Integrated infrared receiver, can fit any infrared remote control experiment (not including the integrated receiver).


Package Included:

  • 1*Arduino Multi-function Shield.

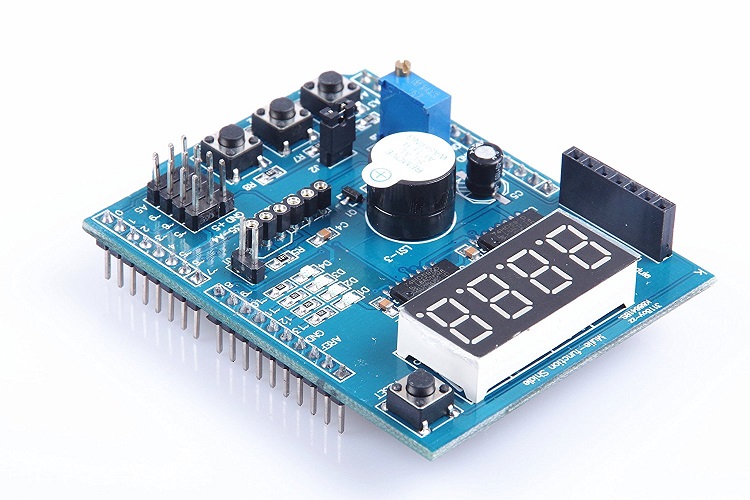

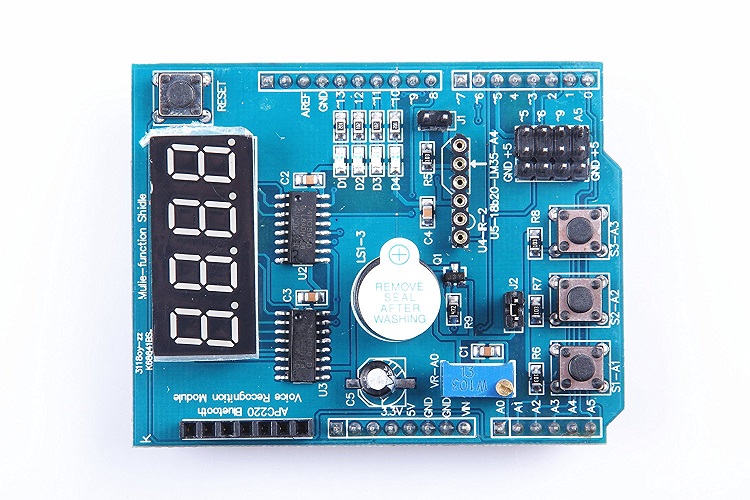

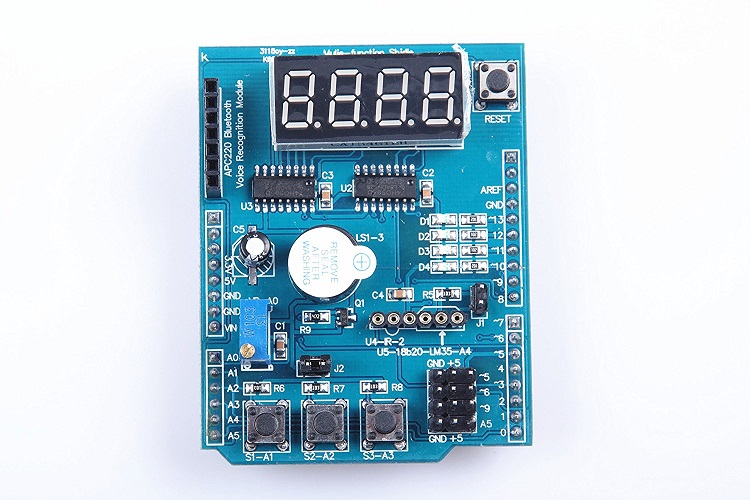

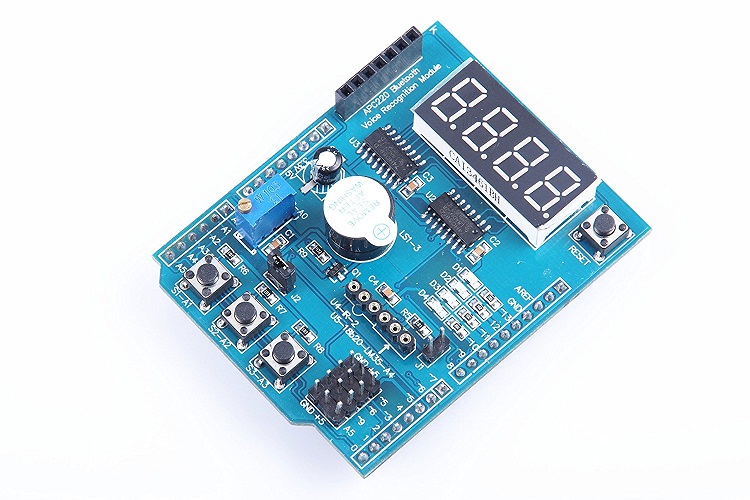

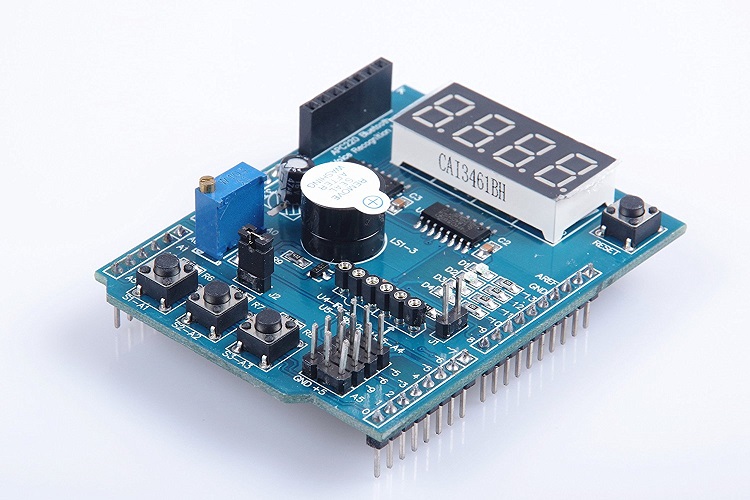

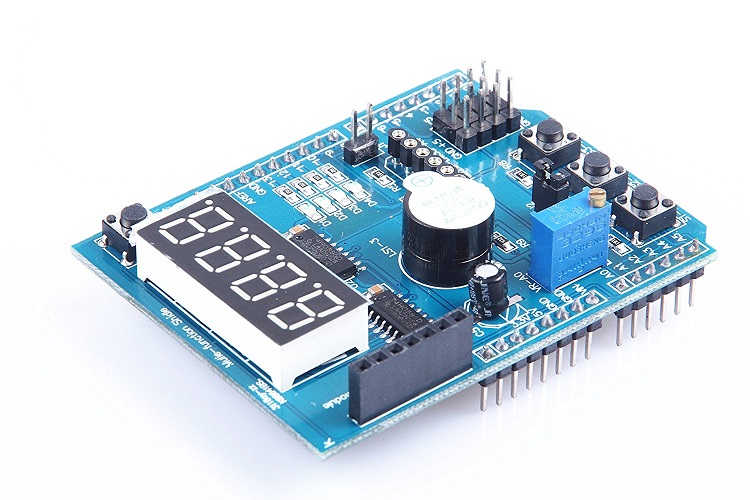

Galería de Imágenes
