Antenna Kit, GSM/GPRS, 2.4G, GPS/GNSS Type

Antenna Kit, GSM/GPRS, 2.4G, GPS/GNSS Type

Kit de 3 antenas muy utilizadas en placas GPS/GNSS/GSS, tales como la ED20, SIM808, A9G, etc.

COD: TRONAN1022

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 781.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

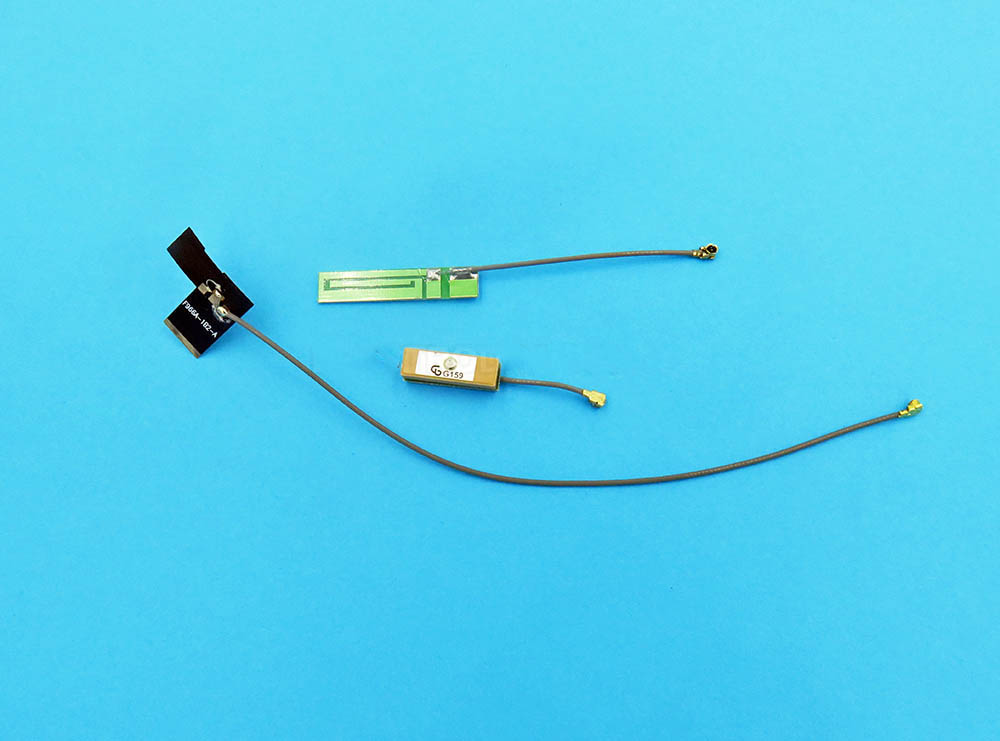

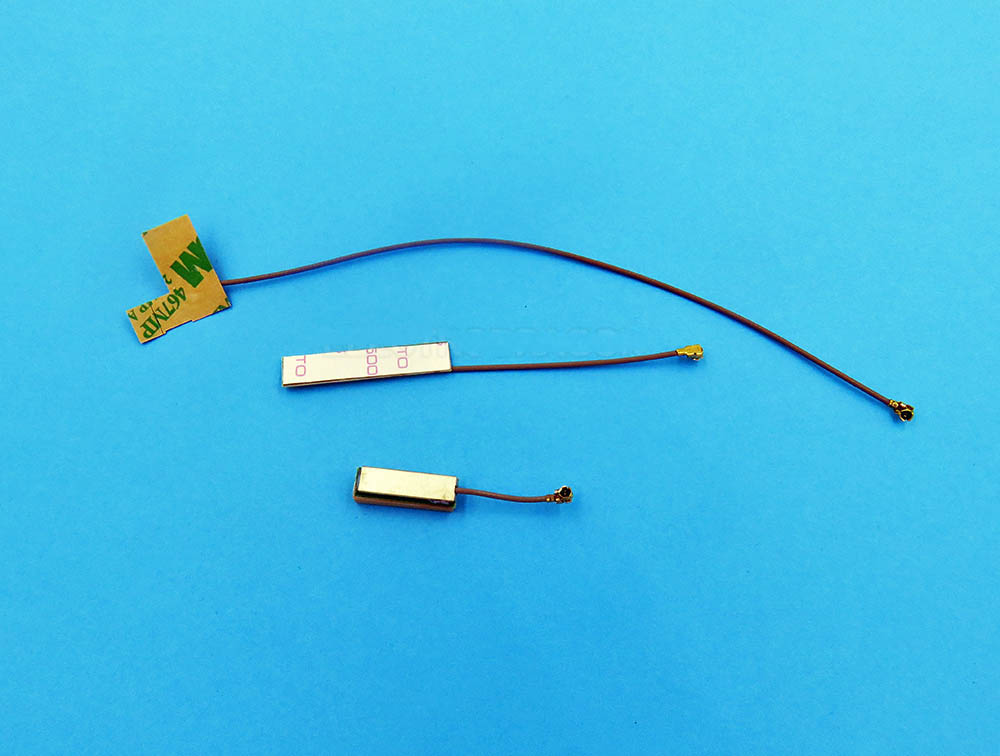

This is an antenna package for GSM/GPRS, 2.4G Bluetooth, and GPS/GNSS board.



1pcs 1306-type GSM antenna (green):

  • Frequency: 824~960/1710~1990MHz GSM/GPRS.
  • Polarization: Linear.
  • VSWR: <3.0.
  • Gain: 2dBi.
  • Impedance: 50Ω.
  • PCB Dimension: 47*7.6*1.2mm.
  • Cable: RF1.13/RF1.37.
  • Connection: IPEX.
  • Mounting Method: Adhesive.
  • Standard PCB quality: FR4, 1.6mm, etc.
  • Cable length is 10CM, see the PCB dimension in attached pictures.



1pcs laptop 2.4G FPC antenna for wifi, bluetooth, etc. (black):



  • Inner omni soft aerial for laptop wifi bluetooth with standard IPEX interface.
  • Equipped with 3M adhesive can be installed firmly on the device ensure stable wireless signal performance.
  • Working Frequency: 2400-2500MHz, S.W.R.:2.0, Gain:4.5dBi(typical), Impedance: 50ohm
  • Panel Size:42 X 12mm/1.65 X 0.47inch(L*W).
  • Cable Length: 13cm/0.51inch.



GPS GNSS Ceramic Antenna Build-in, GB165 (Brown):

  • Model: GPSH165N.
  • Antenna Size: 6x20x6mm.
  • Ceramic Size: 6x20x4mm Small size and light weight.
  • Frequency: 1561mhz / 1575.42mhz.
  • Fixed way: IPX 1st.
  • Line length: 2.5cm.
  • Impedance: 50 ohms.
