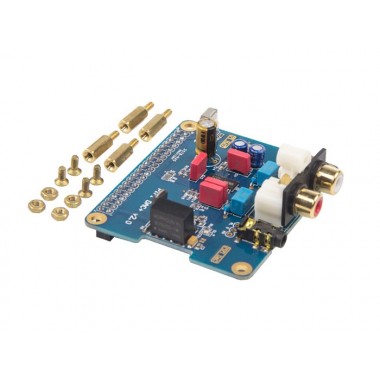

Raspberry pi B+/2B HIFI DAC

Raspberry pi B /2B HIFI DAC

Placa de sonido HIFI para Raspberry Pi, desarrollada para ofrecer una excelente calidad de audio. Para ser utilizada en Raspberry Pi B+/ 2B /3. La placa incluye 2 canales RCA y un jack de salida de 3.5 mm. Basada en el chip PCM5122.

COD: SE114990303

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 3368.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

HIFI DAC+ Digital Audio Card Pinboard designed For Raspberry PI 2 Model B +, adopt high-end DAC chip PCM5122 of TI Company. You can setup internet HIFI player by Volumio or xbmc system.





Features:

  • Using PCM5122 DAC chip from Burr-Brown Corporation, with 32-bit, 384kHz PCM interface, I2S data format.
  • Dual Gold-plated RCA jacks, keep fantastic conductive properties!
  • Gold-plated 3.5mm line out jack (Not for your earphones, it's for audio power amplifiers only!)
  • Special designed power source system by U-geek, isolating DAC power source part from the Raspberry Pi power source system, keeps the current noise away, gives you crystal clear sound.
  • High quality U-geek Designed PCB - check out our other products and you'll know what I mean!
  • Please check out the following resisters and capacitors that we used on this DAC+ -
  • we choose the best quality components that are usually used on professional HiFi devices
  • and that's where your good audio quality comes from:
    1. VISHAY resister (made in Czech).
    2. ELNA RBP2 capacitor (made in Japan).
    3. WIMA MKS2 capacitor (made in Germany).
    4. ERO KP1830 capacitor (made in Germany).
    5. Nichicon FG series capacitor (made in Japan).
    6. IR remote interface.



Specification:

1.Sampling Frequency:384KHz.
2.Resolution (Bits) :16-32.
3.Digital Audio Interface :I2S.
4.SNR :120dB.
5.THD:-93dB.
6. Dynamic range :112dB.
7.Supports Raspberry Pi B+, Raspberry Pi 2 Model B.





Documents:

HIFI DAC+ Digi+ in Volumio

HIFI DAC+ Digi+ in XBMC

HIFI DAC+ Digi+ in Koli/OpenElec

HIFI DAC+ Digi+ in RuneAudio

File:PiFi User Guide.pdf





Download:

http://volumio.org/

http://raspberrypiwiki.com/download/HIFI/





Technical Details:

Dimensions 120mm x 80mm x 24mm
Weight G.W 50g
Battery Exclude



https://www.seeedstudio.com/s/Raspberry-pi-B%2B-2B-HIFI-DAC-p-2801.html

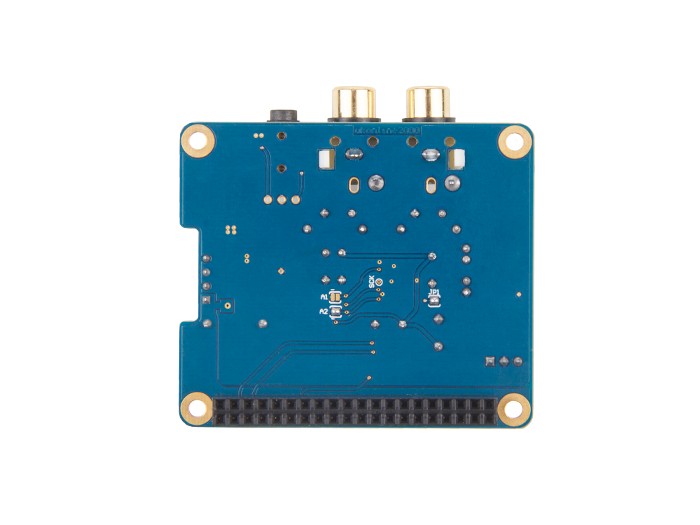

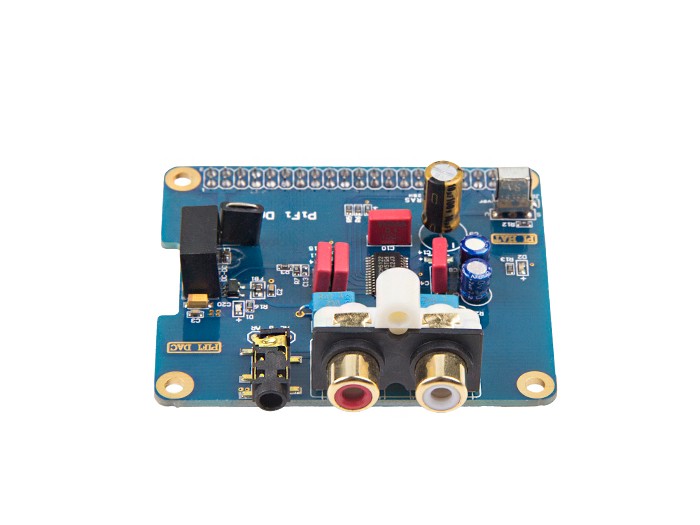

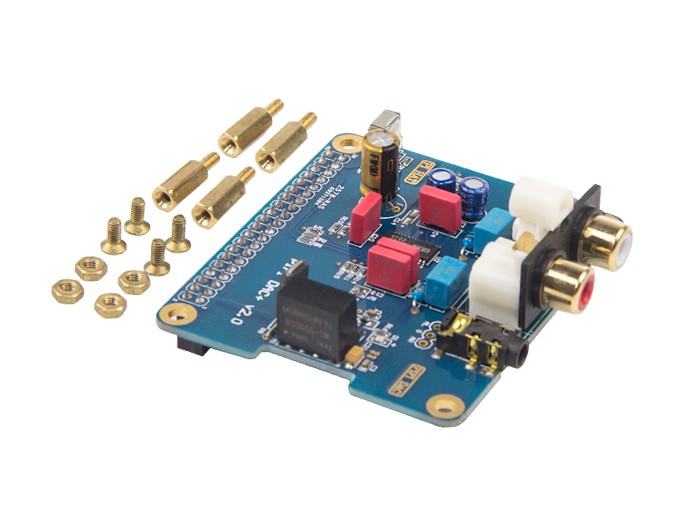

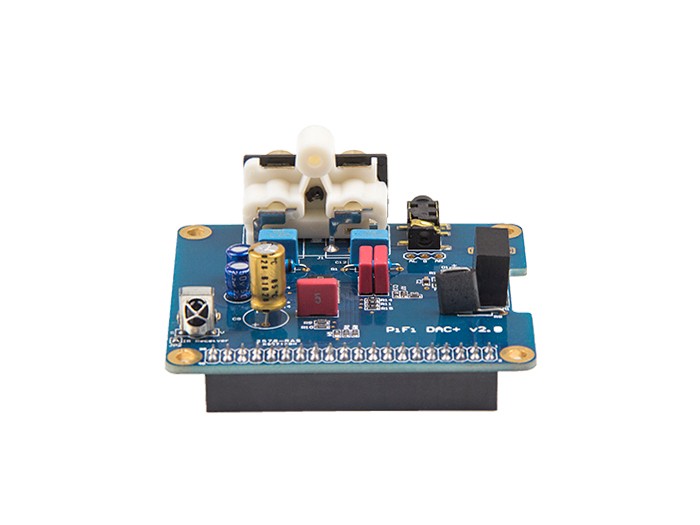

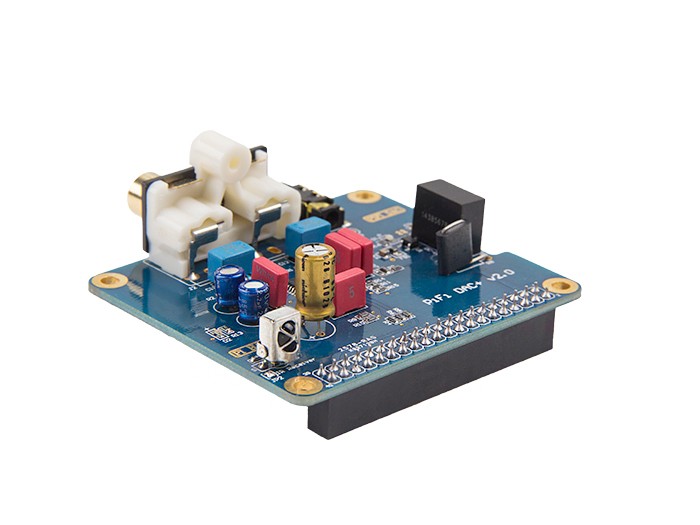

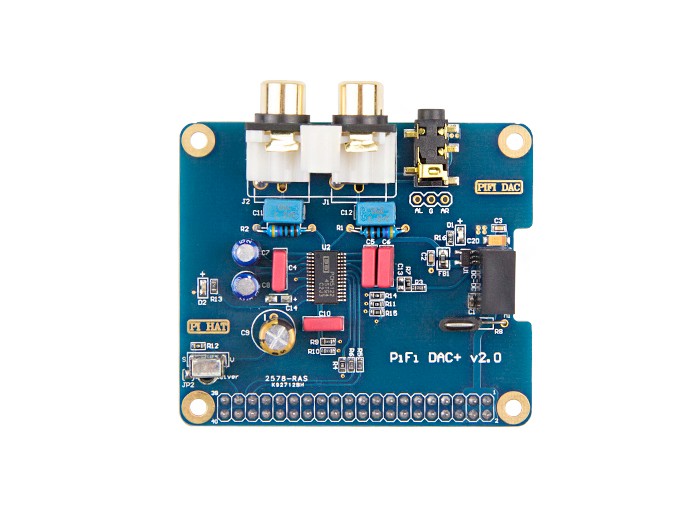

Galería de Imágenes
