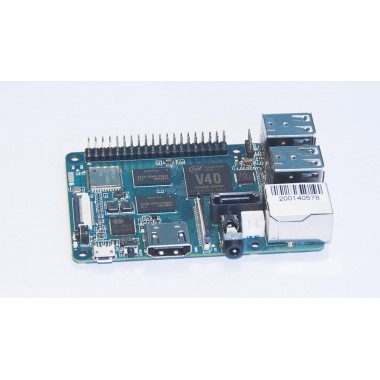

Banana PI BPI-M2 Berry

Banana PI BPI-M2 Berry

La Banana PI BPI-M2 Berry es una potente mini computadora que tiene la particularidad, a diferencia de otros modelos, de ser compatible con cualquier accesorio para Raspberry Pi 3. Posee una CPU quad-core cortex -A7 V40, una GPU MALI-400 MP2 @ 500MHz, con 1GB DDR3 SDRAM, Wifi y Bluetooth integrado. Integra además puertos HDMI, SATA y USB.

COD: SINOBPIM2BY

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 13033.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

What is Banana Pi M2 Berry?

Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner V40 SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a micro-USB power port, and last but not least, a SATA port..
Also being a member of the Banana Pi family, the M2 Berry is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the V40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.



Documentation:

http://www.banana-pi.org/downloadall.html



Key Features:

  • Quad Core ARM Cortex A7 CPU V40.
  • 1GB DDR3 SDRAM.
  • WiFi (AP6212) & Bluetooth onboard.
  • SATA Interface.




M2 Berry Specifications:

CPU quad-core cortex -A7 V40
GPU MALI-400 MP2 @ 500MHz
Memory 1GB DDR3 SDRAM (shared with GPU)
Storage Support MicroSD Card(up to 64GB)/SATA
Onboard Network 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
WiFi 802.11 b/g/n (AP6212)
Bluetooth BT4.0 (AP6212)
Video In CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz
Video Out HDMI 1.4 1080P60
MIPI DSI for RAW LCD panels
Audio Out 3.5 mm Jack and HDMI
Power Source 5V 2A Micro USB
USB Ports 4x USB 2.0, USB OTG(Micro USB)
Buttons Reset button, Power button, U-boot button
GPIO 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
LED Power status Led and RJ45 Led
IR Onboard IR receiver
OS Android and Linux etc.OS
Dimensions 92mm x 60mm
Weight 45g

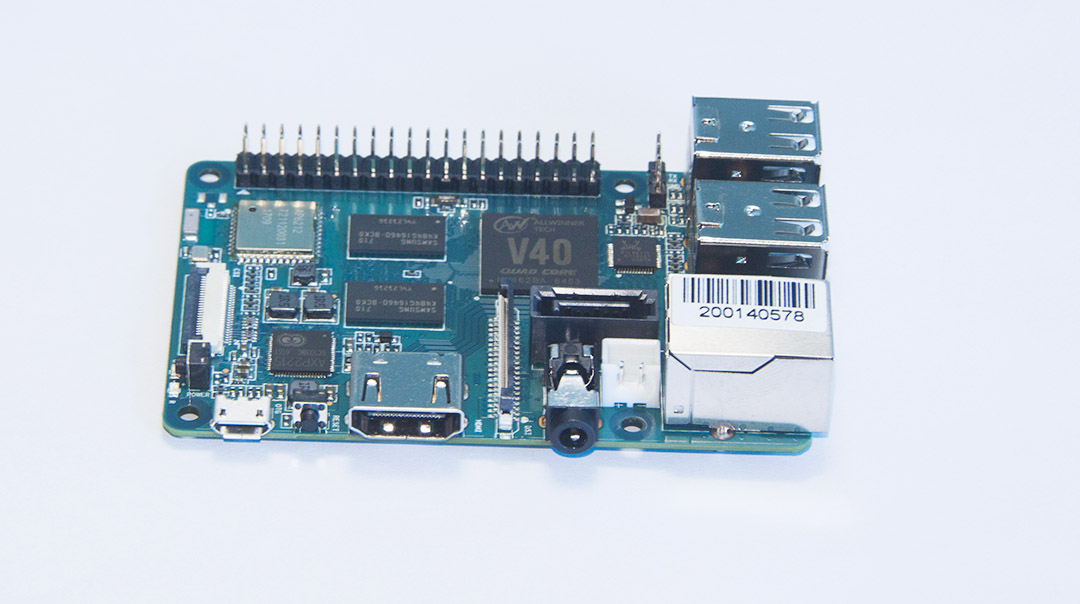

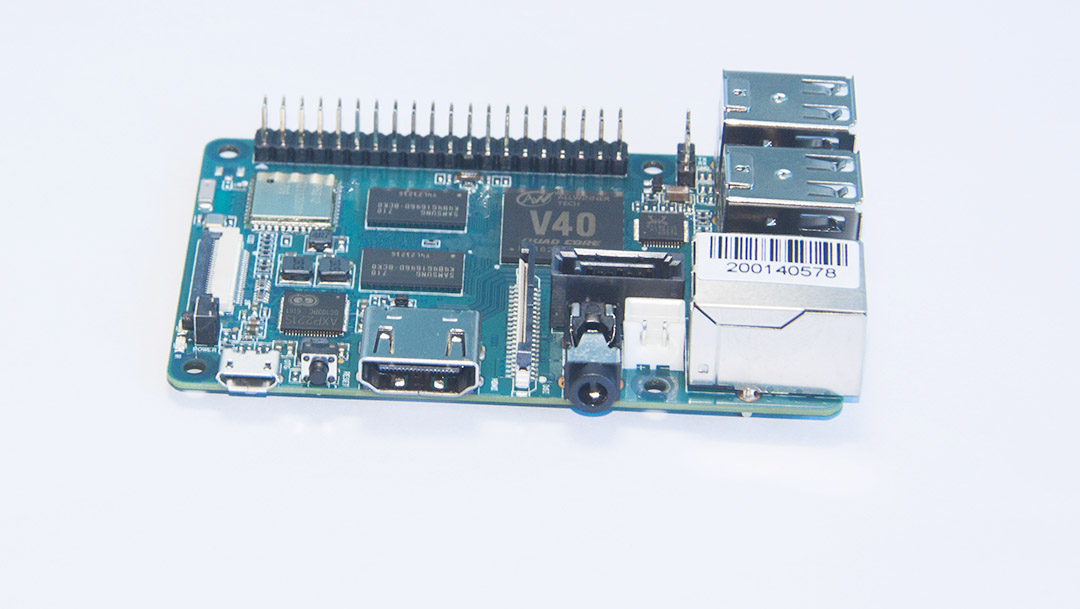

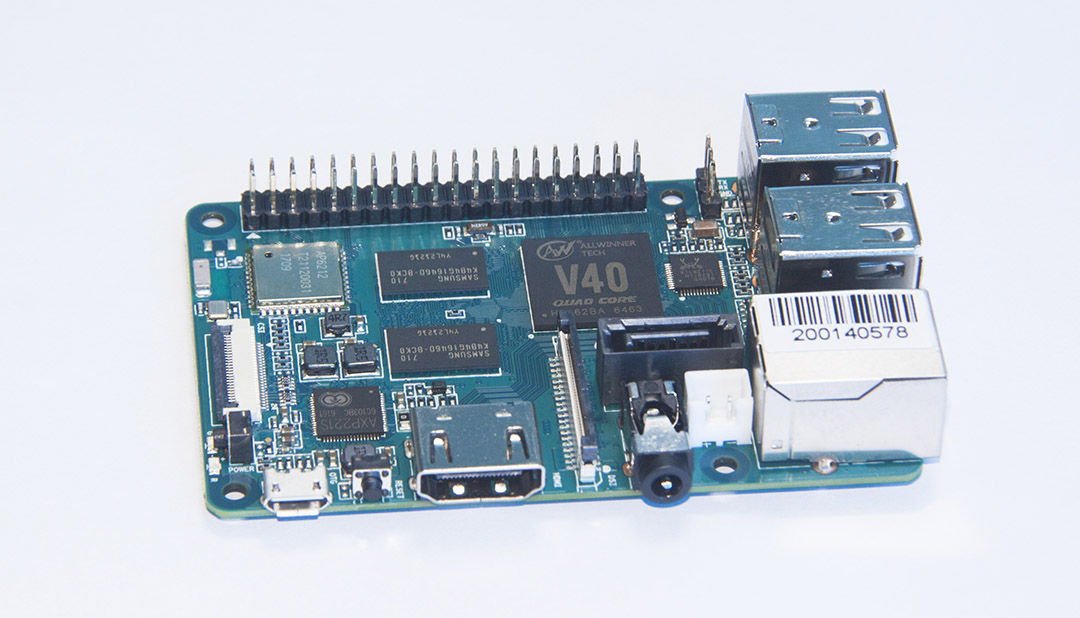

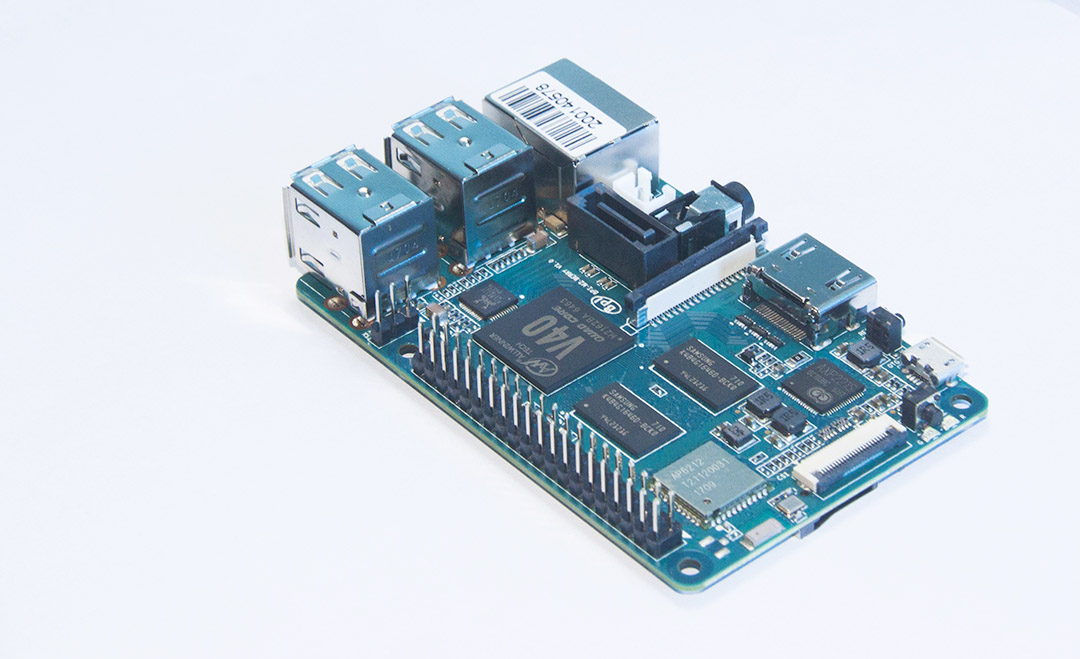

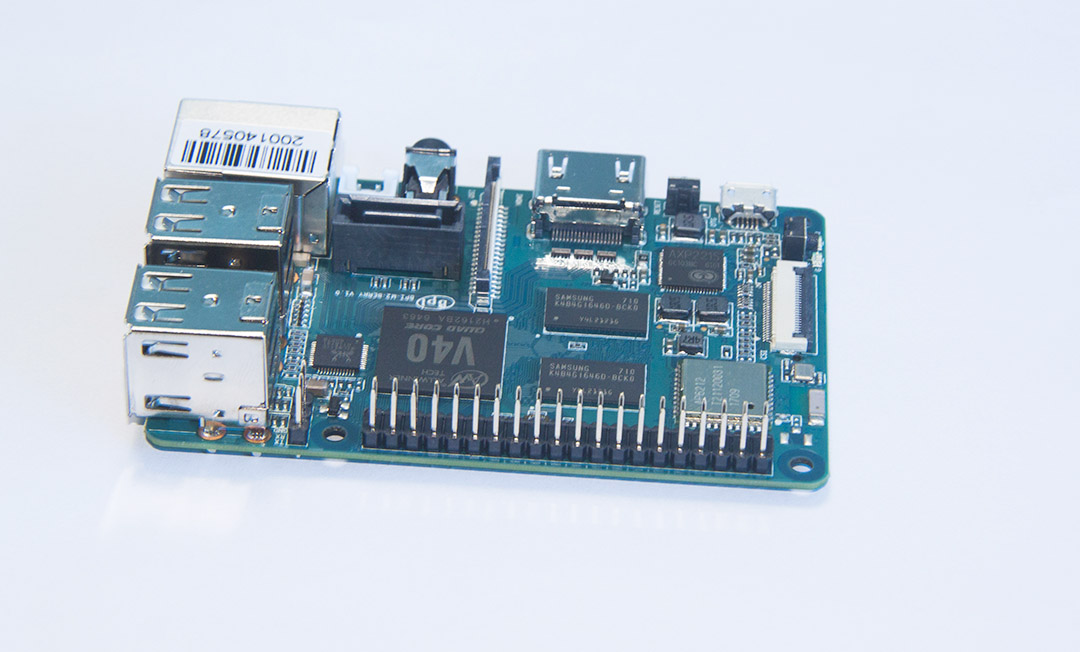

M2 Berry:

M2 BERRY GPIO:
