Solar Panel Unit - 5V/220mA/1.1W/PET

Solar Panel Unit - 5V/220mA/1.1W/PET

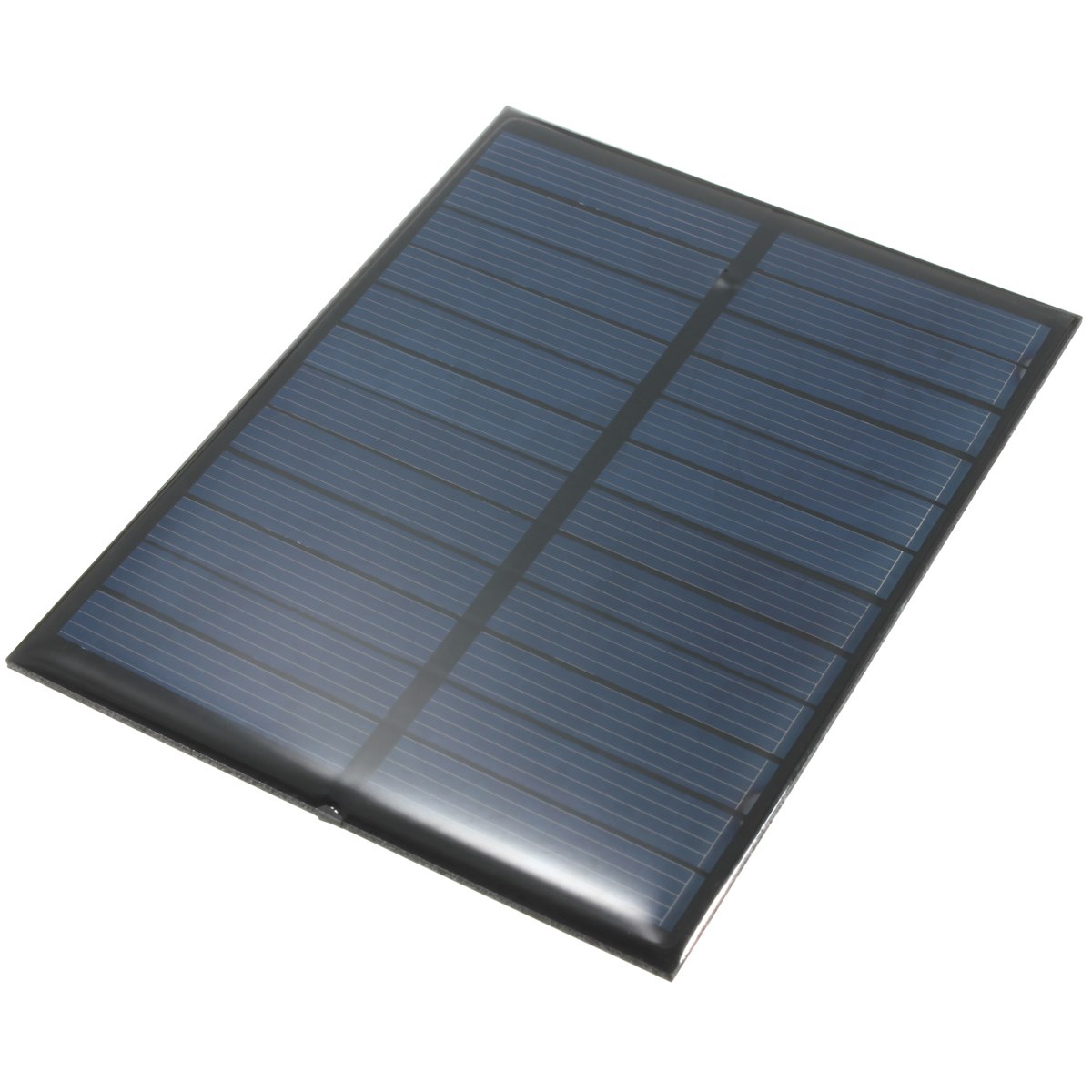

Panel solar de 5V y 1.2 Watts de alta transmitancia, laminado con PET. Resistente a la corrosión. Su rigidez y demás propiedades físicas lo convierten en un producto ideal para ser utilizado en ambientes externos. Puede ser conectado en serie o paralelo con otras unidades del mismo tipo.

COD: TROOPS1008

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 684.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This is a very common type solar panel unit, Poly-Silicon type, common rate of power transformation 17% under current technology availability.



PET laminated Board:

  • 5V 220mA, 1.1W, 110*80*2 mm
  • This technique that has less stiffness but can work on bigger size.

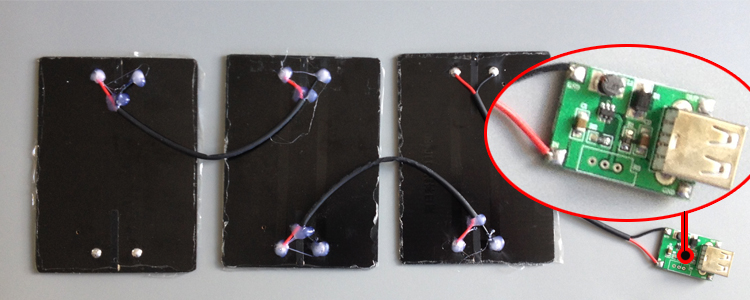

This is a unit of solar panel, serial connection can increase the volt and parallel connection can increase the current. So for example type 2, you can parallel connect 4-5 pcs to  easily charge your cell phone; if you want to charge on 12V storage battery, two unit should be serial connected. See our tutorial at http://www.electrodragon.com/build-a-simple-solar-panel-charger/



Note:

  • The measurement of voltage and current are taken at the peak of the sunlight strength.
  • Simple package from factory delivery;
  • If the board comes with protective plastic film, you need to remove it to get best performance.
  • Can work with a lot of power module here.
