Acelerometro de 3 Ejes ADXL362

Triple Axis Accelerometer Breakout - ADXL362

Módulo acelerómetro de 3 ejes, con salida digital e interfaz SPI, basado en el circuito integrado ADXL362 de Analog Devices.

COD: SFSEN11446

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 63799.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description: We've been using and selling Analog Devices' ADXL accelerometers for a good while now, and now we've found another great part in the series! The ADXL362 is a complete 3-axis acceleration measurement system that operates at extremely low power consumption levels. It measures both dynamic acceleration, resulting from motion or shock, and static acceleration, such as tilt. It's easy to communicate with the ADXL362 over SPI and built-in digital logic even enables autonomous operation for "wake-on-shake" operation.

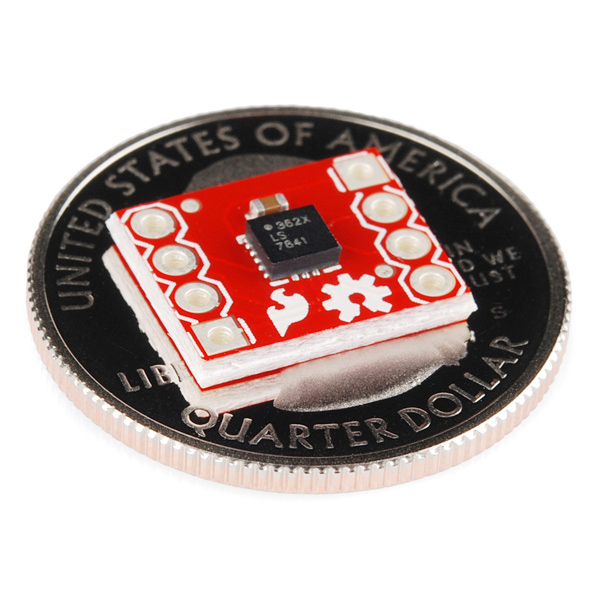

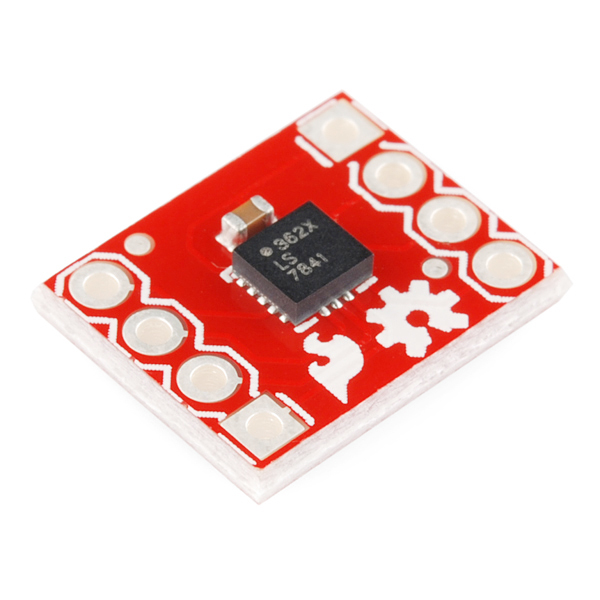

We think this is a really cool device, so we spun up a breakout board! Now you can add low-power-consumption motion sensing to your next project!

Features:

  • 3-Axis: ±2, ±4, ±8
  • Ultralow Power
  • SPI Digital Interface
  • High Resolution: 1 mg/LSB
  • Low Noise Down to 175 μg/√Hz
  • Wide Voltage Range: 1.6 V to 3.5 V
  • Adjustable Threshold for Motion Activation
  • Measurement Ranges Selectable via SPI Command
