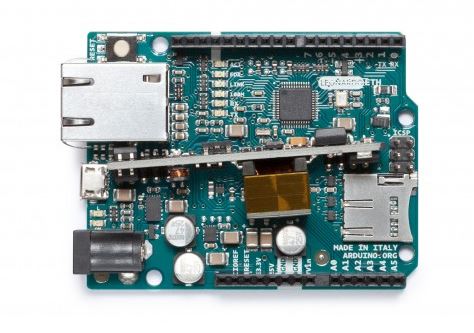

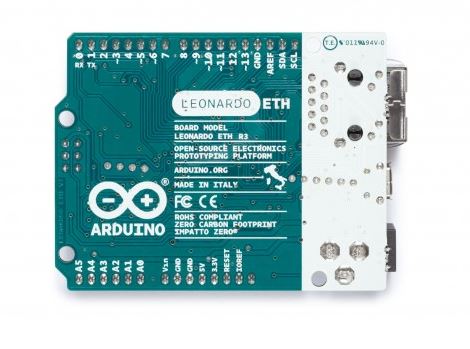

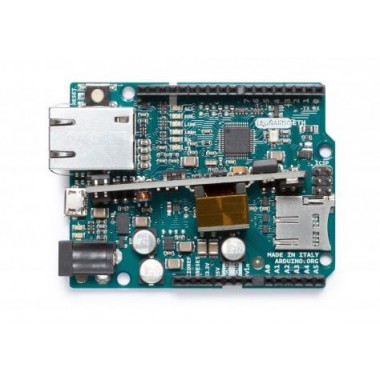

Arduino Leonardo ETH Board with POE

Principal

Placa Arduino Leonardo que integra conexión ethernet y Power Over the Ethernet (POE )

COD: A000023

Peso: 0.048 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6899.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Arduino Leonardo Ethernet board is based on the ATmega32U4 microcontroller and the new Wiznet W5500 embedded Ethernet controller. The board also has Power Over Ethernet Module. The board has 20 digital I/O pins (7 can be used as PWM outputs and 12 as analog inputs). Additional features include a 16MHz xtal oscillator, RJ45 connection, micro USB connector, power jack, ICSP header, and a reset button.


The Power Over Ethernet (PoE) module is designed to extract power from a conventional twisted pair Cat.5 ethernet cable. The PoE module features an input voltage range of 36 to 57V, overload and short circuit protection, 12V output, high efficiency DC/DC converter, 1500V isolation, and is IEEE802.3af compliant.

The Leonardo ETH differs from the preceding Ethernet board in that the ATmega32u4 has built-in USB communication, eliminating the need for an external USB-to-serial converter. This allows the Leonardo ETH to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

  • PoE Module
  • Based on an ATmega32U4 microcontroller
  • Flash memory 32KB
  • SRAM 2.5KB
  • EEPROM 1KB
  • Operating voltage 5V
  • 7x PWM Channels
  • Can be programmed with Arduino software
  • Automatic (software) reset
  • USB overcurrent protection
