CJMCU-ADS1015 Mini 12bit High Precision Analog-to-Digital Converter ADC

CJMCU-ADS1015 Mini 12bit High Precision Analog-to-Digital Converter ADC

Placa de expansión que dispone de 4 entradas analógicas simples (o 2 diferenciales) de 12 bit de resolución. Se comunica con microcontroladores que posean I2C. Útil cuando se requiere de mayor resolución ADC o bien si se necesitan más entradas analógicas de las que dispone el microcontrolador. Compatible con Arduino.

COD: HTHS0230

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 9211.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter.

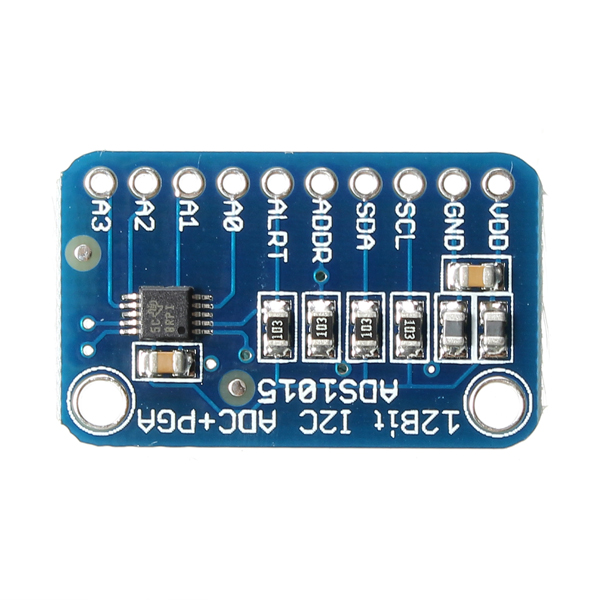

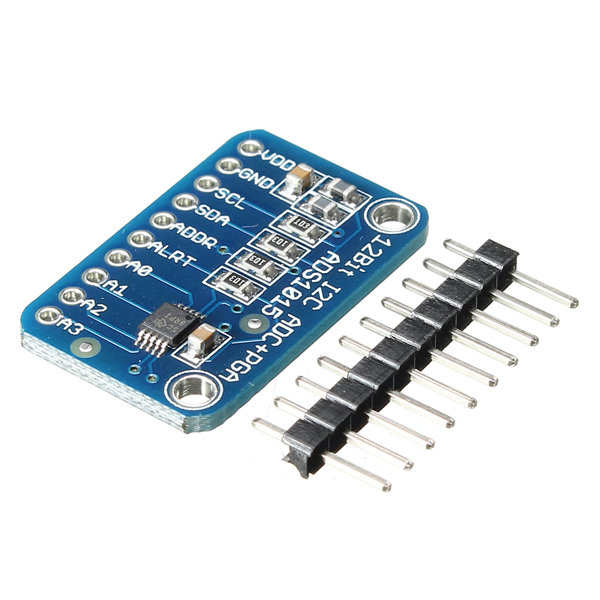

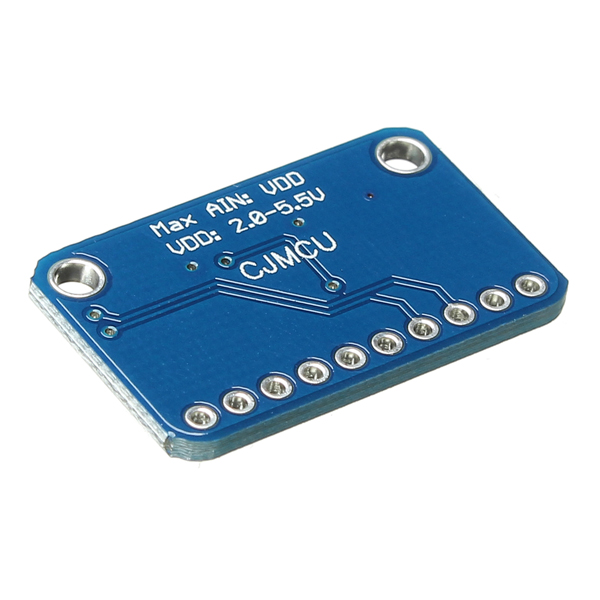

The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs.


Package included:

1 x Analog-to-Digital Converter.
