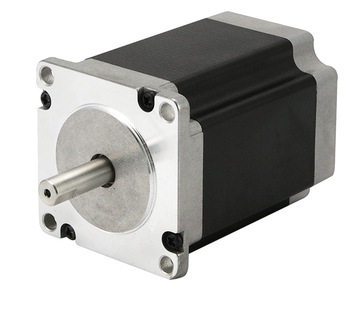

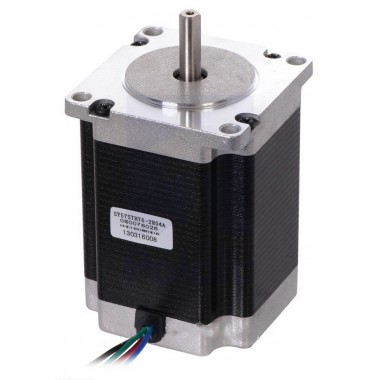

Stepper Motor Nema23 19kg 1.9nm 57STH76-2804A
Motor paso a paso NEMA 23 (57STH76-2804A) de alto torque (19 kg/cm). Ideal para sistemas CNC como cortadoras láser, grabadores o impresoras 3D. Tiene un ángulo de paso de 1.8º (200 pasos por vuelta).
COD: HTHR0742
Peso: 1.016 Kg
Disponibilidad: Sin Stock
ARS 60198.00
El producto no está disponible para la venta en este momento

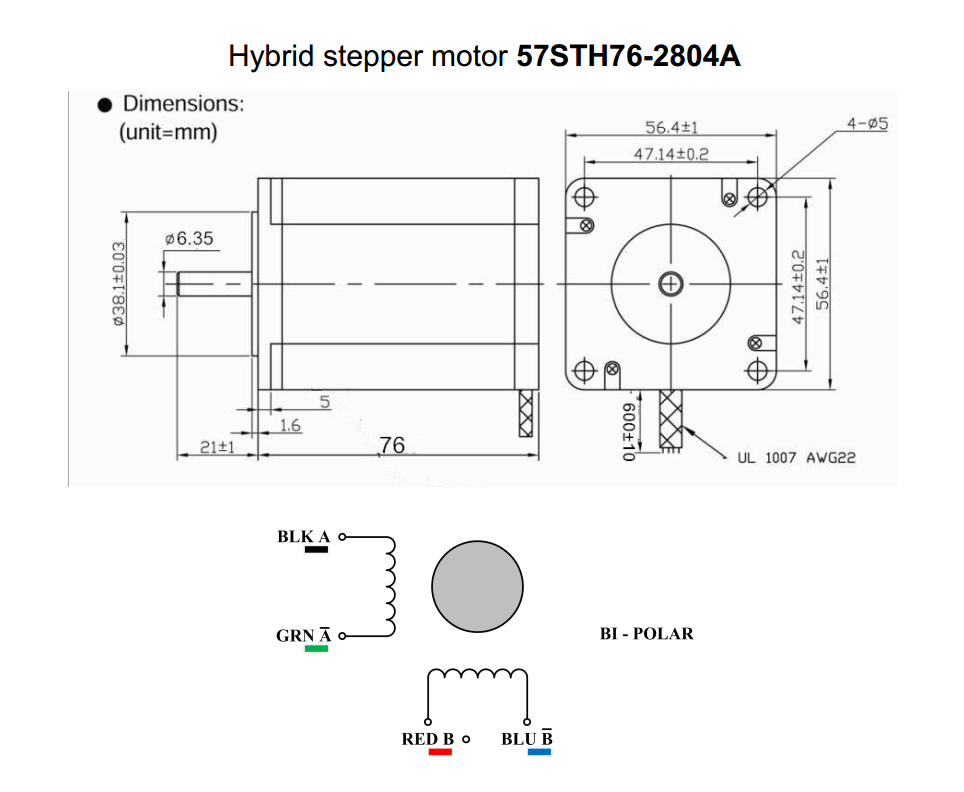

Características
Description:
- Model Number : 57STH76-3004A.
- Step angel : 1.8 degree.
- Phase voltage : 3.0V.
- Phase Current : 3.0A.
- Phase resistance : 1.0ohm.
- Phase inductance : 3.5mH.
- Holding torque : 1.89N.m 270 OZ IN.
- Weight : 1,016 Kg.
- Motor length : 76mm.
Technique Parameters:
|
Items |
Specifiction |
|
Step Angel |
1.8 degree |
|
Step Angel Accuracy |
±5% |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80°C Max |
|
Ambient Temperature |
-20°C~+50°C |
|
Insulation Resistance |
100MΩ Min., 500VDC |
|
Dielectric Strength |
500VAC for one minute |
|
Shaft Radial Play |
0.02Max (450g-load) |
|
Shaft Axial Play |
0.08Max (450g-load) |
Nema 23 series 57STH series stepping motors :
|
Model No. |
Step |
Volt/Phase |
Current/ Phase |
Resis/Phase |
Induct/ phase |
Hold Torque |
Lead wire |
W |
L |
|
|
|
V |
A |
Ω ±10% |
mh ±20% |
N.cm |
|
Kg |
mm |
|
57STH41-2006A |
1.8 |
2.8 |
2 |
1.4 |
1.4 |
50 |
6 |
0.45 |
41 |
|
57STH41-2804A |
1.8 |
2 |
2.8 |
0.7 |
1.4 |
50 |
4 |
0.45 |
41 |
|
57STH56-2006A |
1.8 |
3.6 |
2 |
1.8 |
2.5 |
90 |
6 |
0.7 |
56 |
|
57STH56-2804A |
1.8 |
2.5 |
2.8 |
0.9 |
2.5 |
126 |
4 |
0.7 |
56 |
|
57STH76-2006A |
1.8 |
4.5 |
2 |
2.25 |
3.6 |
189 |
6 |
1 |
76 |
|
57STH76-2804A |
1.8 |
3.2 |
2.8 |
1.13 |
3.6 |
189 |
4 |
1 |
76 |
Applications:
- CNC machine: engraving machine, milling machine, coiling machine, sparking machine, wire-electrode cutting and so on.
- Electronic equipment : up-coiler, stripping machine, lithum battery production equipment, dispensing machine and so on.
- Packaging equipment: filling machine, fixed length cutting machine, tissue paper machine, paper diaper equipment and so on.
- Textile equipment: flat knitting machine, hosiery machine, embroidery machine, spinning machine, knitting machine and so on.
- Printing machine: screen printing machine, pad printing machine and so on.
- Laser equipment: carving machine, cutting machine, labeling machine and so on.
Hoja de Datos (481 Kb)
