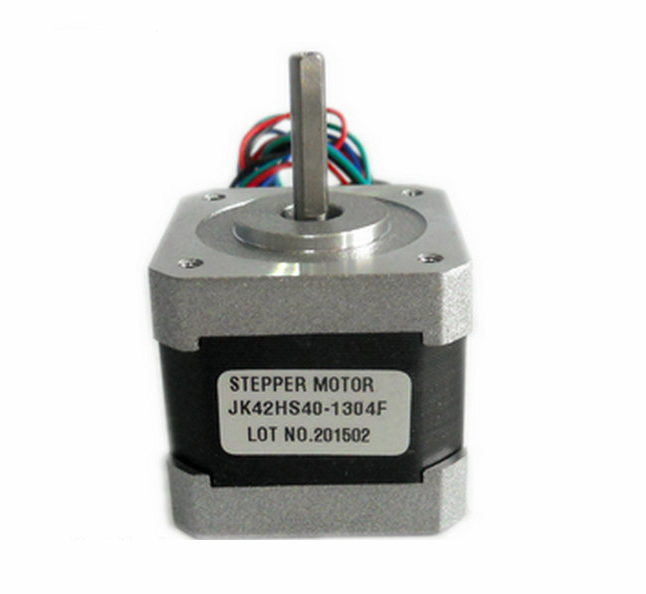

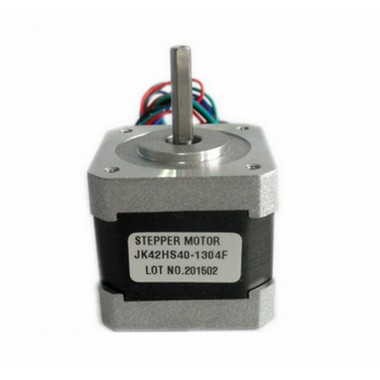

Stepper Motor Nema17 JK42HS40-1304F

Stepper Motor Nema17 6kg JK42HS40-1304F

Motor paso a paso bipolar NEMA17 con un ángulo de paso de 1.8º. Se alimenta con 3.4 Voltios.

COD: HTHR0741

Peso: 0.290 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 28000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This is a generic 2 phase Nema17 hybrid stepper motor. It has a stepping angle of 1.8° and can complete a full circle in 200 steps. This motor has 2 phases and it is recommend to supply 1.3 amps per each phase. The dimension of the motor is 42 by 40mm with a shaft diameter of 5mm. Commonly used for Prusa type 3D printers.



Please note the wiring is listed as the following:

  • Black and Green Is phase 1 A+ and A-
  • Red and Blue is Phase 2 B+ and B-





Specifications:

  • Stepping Angle: 1.8°
  • Motor Length: 40mm
  • Motor Width: 42mm
  • Current per Phase: 1.3Amps
  • Resistance per Phase: 2.5Ω
  • Inductance per Phase: 5mH
  • Holding Torque: 4 kg/cm
  • # of wires: 4
  • Rotor Inertia: 54g/cm^2
  • Weight: 0.28kg
  • Axial Length: 24mm
  • Axial Width: 5mm





 Applications:

  • Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.



Electrical Specifications:



Model No.

Step Angle

Motor Length

Current
/Phase

Resistance
/Phase

Induc
/Phase

Holding Torque

# of Leads

Detent Torque

rot

inerc

Mass

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HS28-0604

1.8

28

0.6

8

10

1.2

4

130

27

0.15

JK42HS34-1304

1.8

34

1.3

2.4

2.8

2.8

4

160

34

0.22

JK42HS34-1704

1.8

34

1.7

1.2

1.8

2.8

4

160

34

0.22

JK42HS34-0404

1.8

34

0.4

30

35

2.8

4

160

34

0.22

JK42HS34-0406

1.8

34

0.4

30

18

2.1

6

160

34

0.22

JK42HS40-1704

1.8

40

1.7

1.5

2.8

4.0

4

220

54

0.28

JK42HS40-1304

1.8

40

1.3

2.5

5.0

4.0

4

220

54

0.28

JK42HS40-1206

1.8

40

1.2

3.2

2.8

2.8

6

220

54

0.28

JK42HS40-0406

1.8

40

0.4

30

28

2.8

6

220

54

0.28

JK42HS48-1704

1.8

48

1.7

1.8

3.2

4.9

4

260

68

0.35

JK42HS48-1304

1.8

48

1.3

3.2

5.5

4.9

4

260

68

0.35

JK42HS48-2304

1.8

48

2.3

1.2

1.6

4.9

4

260

68

0.35

JK42HS48-0406

1.8

48

0.4

30

38

3.6

6

260

68

0.35








JKM NEMA17 1.8°42 Hybrid Stepper Motor Two Phase 40MM/48MM
JKM NEMA17 1.8°42 Hybrid Stepper Motor Two Phase 40MM/48MM

Package included:
1x 40MM/ 48MM Stepper Motor
