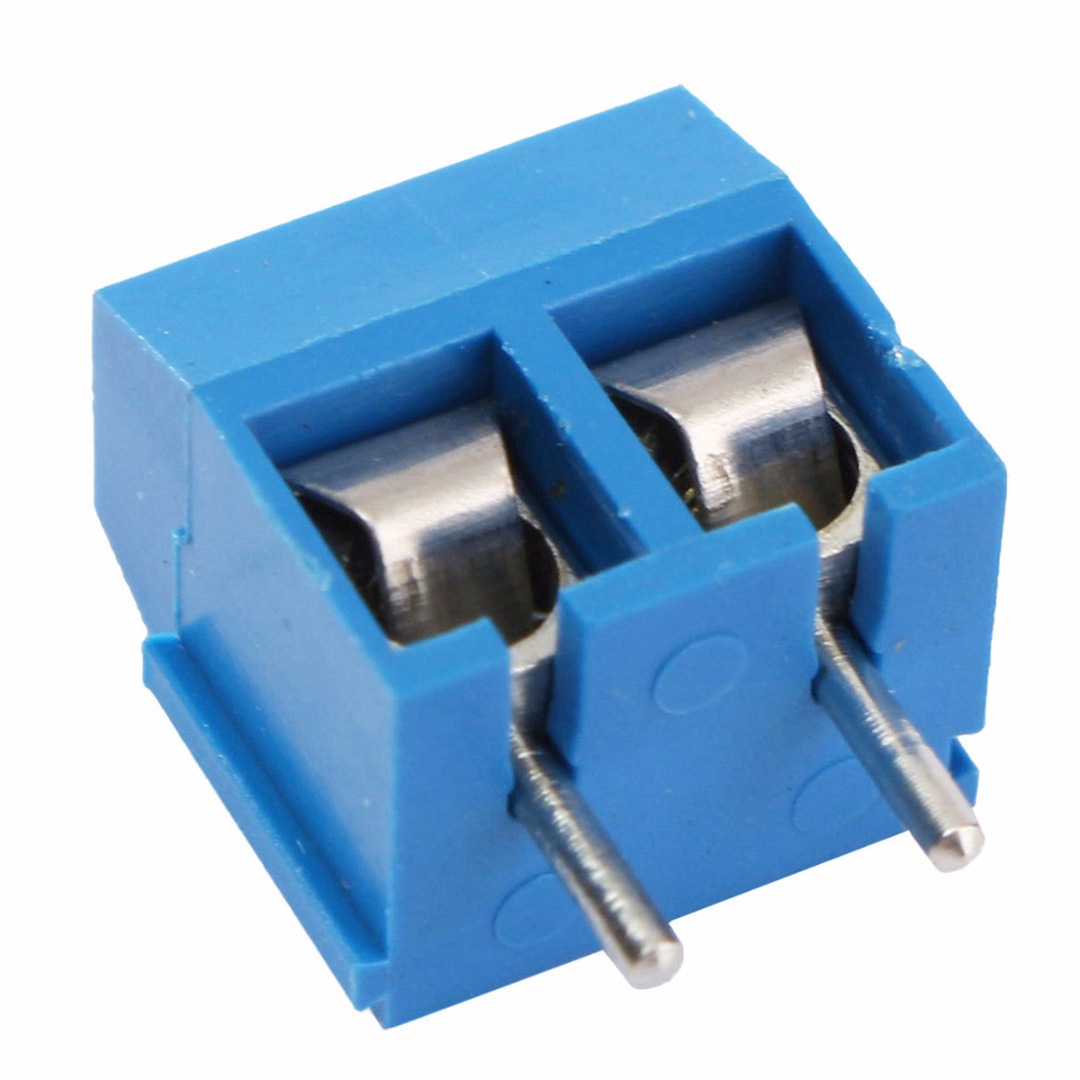

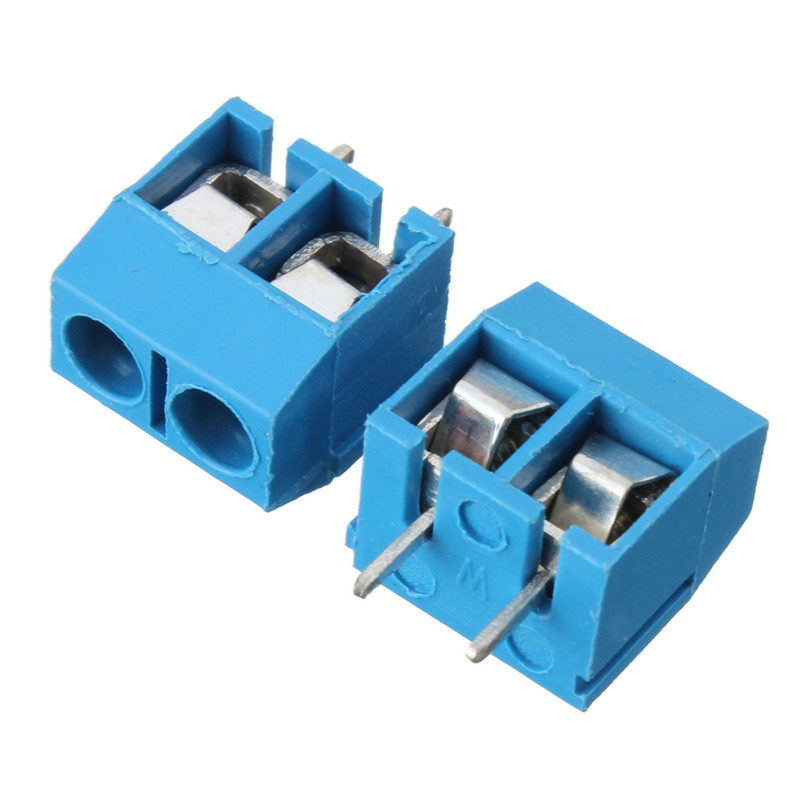

KF301-2P 2 Pin Screw Terminal Block Connector 5mm Pitch
Bornera de 2 pines de 5.08mm. Para montaje en placa.
COD: HTHR0309-25-U
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 337.00
El producto no está disponible para la venta en este momento
Características
Features:
- Screws: M2.5 Steel Zinc plated
- Wire Guard: Stainless Steel
- Pin Header: Brass, Tin plated
- Housing: PBT, UL94V-0
- Rated voltage: 300V
- Rated current: 16A
- Contact resistance: 20 mΩ
- Insulation resistance: 5000MΩ/DC1000V
- Withstanding voltage: AC1500V/1Min
- Wire range: 24-14AWG 2.5mm2
- Temperature range: -40ºC to +105ºC
- Strip length: 4.5mm to 5.0mm
Package Includes:
- 100pcs PCB Mount Terminal Block 2Pin 5.08mm
