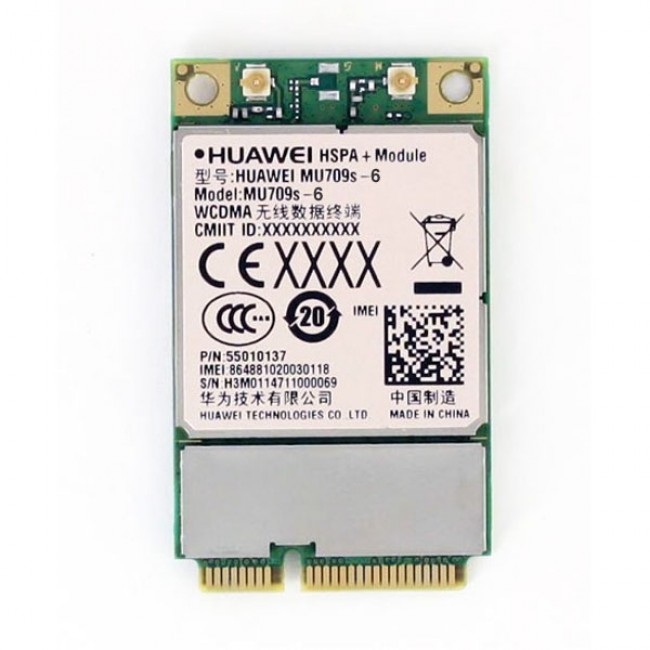

MU709S Huawei WCDMA HSPA+ 3G Module, MiniPCIe [Frequency] - MU709s-6 Mini PCIe (UMTS / HSPA + 850/1900/2100 MHz)

Huawei MU709s-6 mPCIe es un módulo HSPA de doble banda + funcionalidad 3G (850/1900 / 2100MHz) con una relación precio-rendimiento atractiva.

COD: TRONGS1067

Peso: 0.040 Kg

Disponibilidad: En Stock

ARS 19990.00

El producto no está disponible para la venta en este momento

Características

Description:

Huawei MU709s-6 mPCIe is a dual band HSPA+ module (850/1900/2100MHz) with an attractive price performance ratio. Top class performance allows data speeds up to 21 Mbit/s downlink and 5.76 Mbit/s uplink. With a temperature range between -40 - + 70 degrees Celsius it offers a wide usage range for most industrial environments. MU709 has an embedded TCP/IP stack, PCM Voice and firmware-over-the-air update features.

The Huawei MU709s-6 is the first wireless M2M module from Huawei with a Hisilicon chipset and the MU709 is pin-pin compatible with MU609 and ME909.

Features:

MU709s Mini PCIe is a variant version of MU709s.
Standard Mini PCIe package;
Provide high-quality voice and SMS functions;
Rich extension: FOTA, STK …
Built-in TCP / IP protocol stack;
Huawei extended AT command set …
Application: Car, security monitoring, tracking, mobile payment, industrial routers, industrial flat panel applications such as the preferred!

MU709s Mini PCIe is divided into two sub-models, based on the frequency band requirements of different shipping areas are as follows:

MU709s-2 Mini PCIe (UMTS / HSPA + 900 / 2100MHz), support Europe, China and other markets.
MU709s-6 Mini PCIe (UMTS / HSPA + 850/1900/2100 MHz), support for the corresponding Asia Pacific, Latin America and other markets.

Specification:

Power supply voltage: 3.0 V to 3.6 V (typical: 3.3 V).

Package: Mini-PCIe.

UMTS Bands:

B5 (850)
B2 (1900)
B1 (2100)

Manufacturer: Huawei

GSM/EDGE Bands:



: B5 (850)
B8 (900)
B3 (1800)
B2 (1900)

Form Factor:

mPCIe - full size

Technology: HSPA+

Antenna Interface: IPEX U.FL

GPS: No

GNSS technology

GPIO: No

Max DL Speed: 21.6 Mbps

Max UL Speed: 5.76 Mbps

Chipset:


: Hisilicon.
Balong 330.

Driver Support:



: Windows 7
Linux
Android
Windows
Windows 8

Interface:



2 Antenna connectors. PCIe interface.
USB 2.0 High speed. PCM Voice. SIM Interface (1.8V/3.0V).

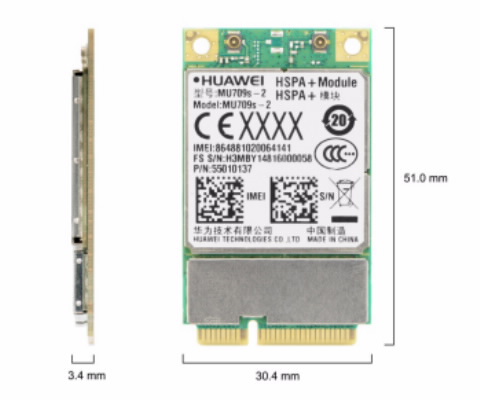

Length: 51 mm.

Width: 30.4 mm.

Height: 3.4 mm.



Weight approx: 12g.

Operating Temperature Range: -40 °C – 70 °C

Certification:

: IC
ANATEL
A-Tick
GCF
RoHS
CE
FCC
CE RED

Voice Call Support: Yes.

Voice call interface: Digital PCM signal input/output in socket.

SIM interface: Through miniPCIe connector.




Special Functions:

FOTA. Firmware update via USB. STK. Jamming Detection. Netscan. CMUX. SSL. eCall.
