Arduino Energy Monitoring Shield V2

Arduino Energy Monitoring Shield V2

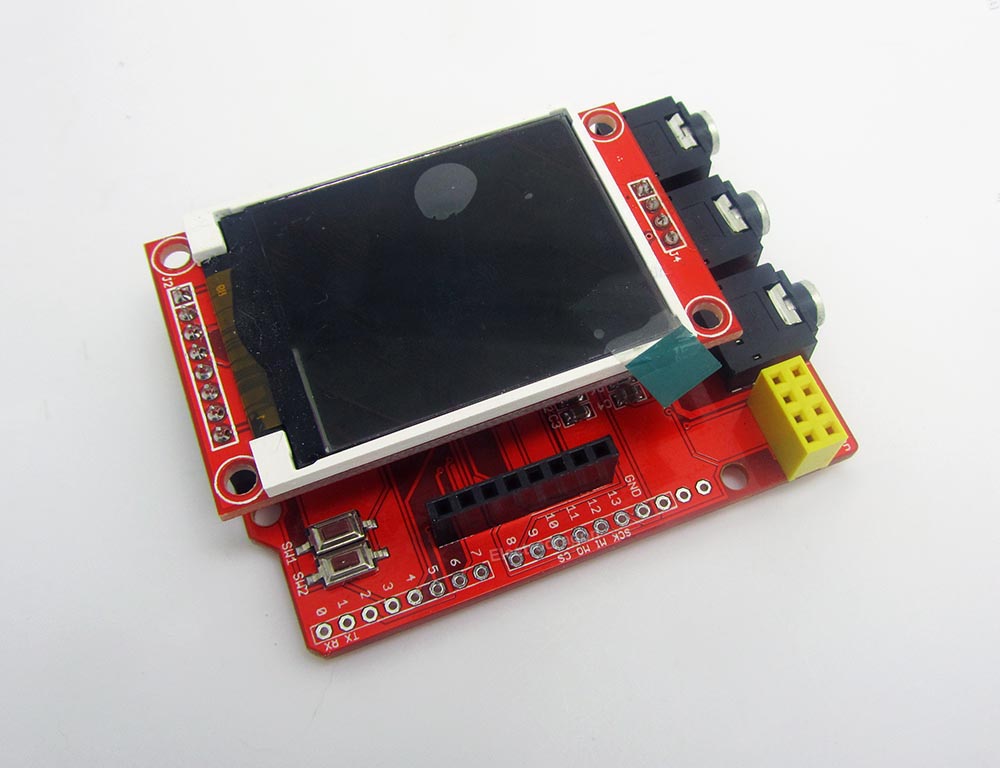

OFERTA POR RENOVACION DE STOCK!!! Módulo para monitoreo de corriente Alterna (AC) no invasivo, compatible con Arduino. Es capaz de monitorear el consumo de corriente de hasta 3 dispositivos (con sus respectivos sensores de corriente, no incluidos, pero que pueden adquirirse en OpenHacks), pudiendo mostrar la información a través de un display LCD TFT. Posee interfaz I2C. No se incluyen sensores ni display.

COD: TRODAS1010

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 12990.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

Based on this type of non-invasive AC current sensor, monitoring the energy consumption (AC Current Sensing).

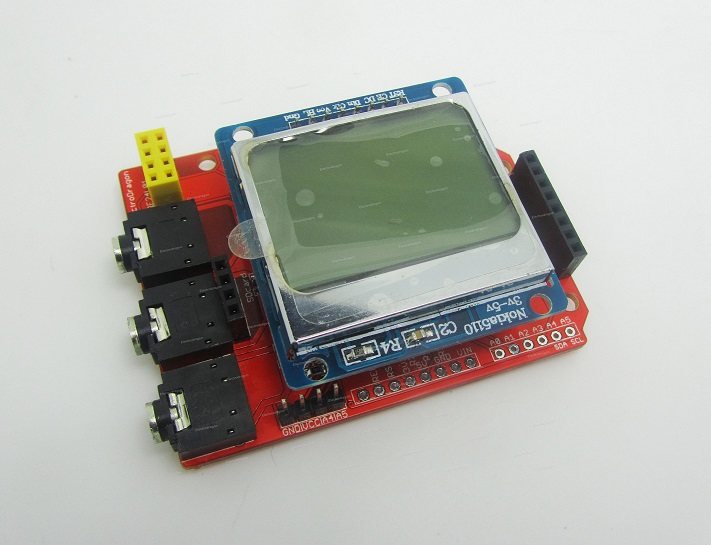

Supported Three Types of LCDs:

Supported Radio:

Other Resources:

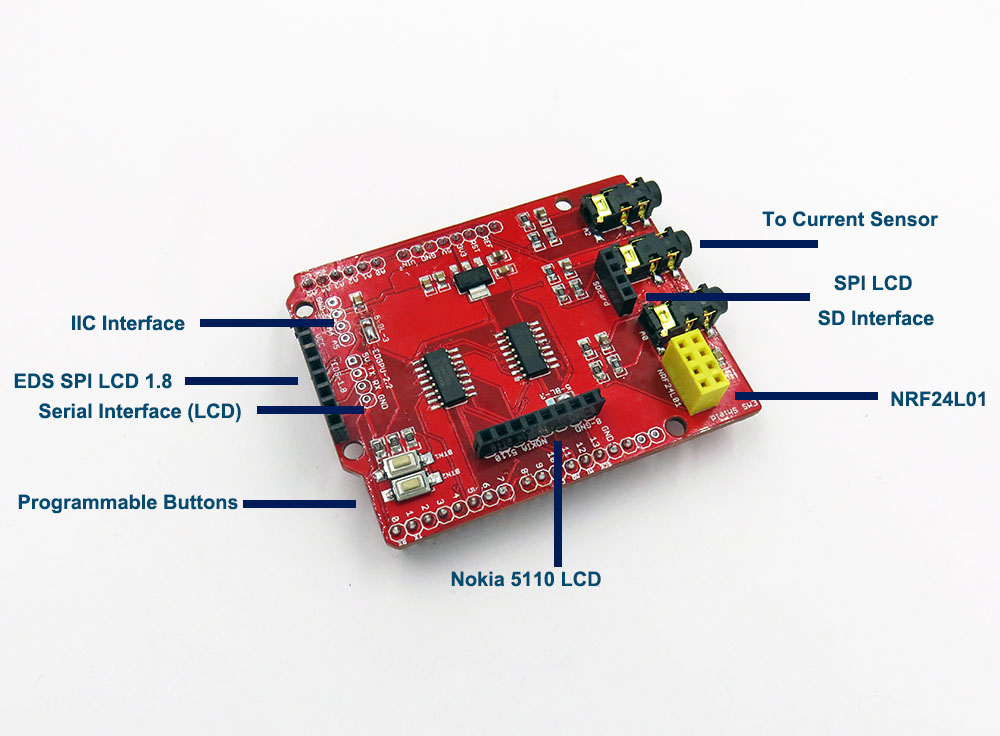

  • Two buttons to control (operate one analog pin).
  • On board four pins IIC interface, SDA, SCL, 5V, GND.
  • Fully compatible with Ethernet Shield (Wiznet 5100 + SD).
  • Occupied extra pins are listed on board, easy to find and use.

Documentation: Please see the demo code on this page.
