Antenna pack for ED20 Tracker Board, GSM GPRS GNSS BT3.0 IOT

ED20 Tracker Board, GSM GPRS GNSS BT3.0 IOT - Antenna pack

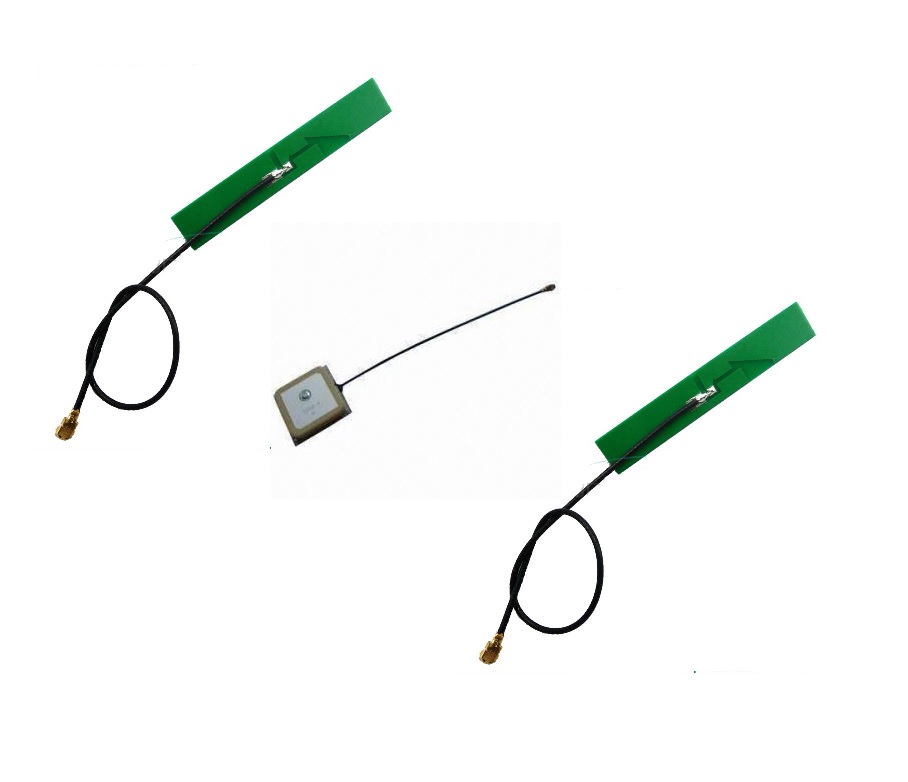

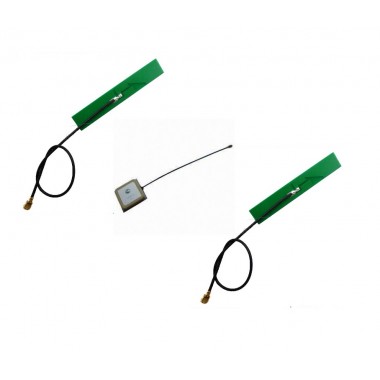

Pack de 2 antenas de tipo GSM/GPRS, y una de tipo GPS. Los rangos de frecuencias y características de cada una están descritos más abajo.

COD: TRONGS1064

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 10316.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:



1306 GSM/GPRS PCB Antenna:

  • Frequency 824-960/1710-1990/2010-2170MHz
  • S.W.R. <= 2.0
  • Antenna Gain 3.0
  • Impedance 50 Ohm
  • Cable Type O.D. 1.13 mm
  • Operation Temperature – 40 °C ~ + 65 °C
  • PCB Antenna: 35.00MM * 5.70MM * 0.70MM
  • Cable length100MM, total length 13CM
  • Interface form: one end of the IPX terminal (button), the other end of the circuit board for direct welding, in order to prevail
  • Back side tape, directly tape it to fix.



1407 2.4G PCB Antenna:

    • Frequency 2371 -2483 MHz
    • S.W.R. <= 2.0
    • Antenna Gain 3.0 /4.0
    • Impedance 50 Ohm
    • Cable Type O.D. 1.13 mm
    • Operation Temperature – 40 °C ~ + 65 °C
    • Storage Temperature – 40 °C ~ + 80 °C
    • PCB Dimension:48MM*7.5MM*1.0MM
    • Cable Dimension: 100MM Total length 14.5CM
    • This product is mainly used for notebook built-in, Bluetooth, wireless modules, and other series for the frequency of related products.
    • Back side tape, directly tape it to fix.



GPS Antenna:

  • Total size of antenna PCB: 13*13*6.5MM.
  • Compact size for buid-in use.
  • IPEX connector cable, length 10CM.
  • Center Frequency-MHz: 1575.42MHz±3.
  • Bandwidth -MHz: ±5.
  • Peak Gain >3dBic  Based on 7×7cm ground plane.
  • Gain Coverage >-4dBic at –90°ï¼œ0<+90°(over75%Volue).
  • Polarization: RHCP.
  • LNA Gain: 20dB Typical.
  • Noise Figure: 1.5dB.
  • Filter Out Band: Attenuation (f0=1575.42 MHZ).
    • 7dB ï¼­in   f0+/-20MHZ.
    • 20dB ï¼­in  f0+/-50MHZ.
    • 30dB ï¼­in  f0+/-100MHZ.
  • DC Voltage:3V , 5V,  3V to 5V and so on   2.7V/3V/3.3V/5V/3~5V.
  • DC current: 5mA /10mA Max  20mA Max.
  • VSWR: ≤2.0.
