Driver motor paso a paso de alta corriente DRV8825
Driver motor paso a paso de alta corriente, basado en el integrado DRV8825, diseñado y fabricado por Pololu.
COD: P002132
Peso: 0.001 Kg
Disponibilidad: Sin Stock
ARS 34431.00
El producto no está disponible para la venta en este momento
Características
Overview
This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil (see the Power Dissipation Considerations section below for more information). Here are some of the driver’s key features:
- Simple step and direction control interface
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (mixed decay or slow decay)
- 45 V maximum supply voltage
- Built-in regulator (no external logic voltage supply needed)
- Can interface directly with 3.3 V and 5 V systems
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB

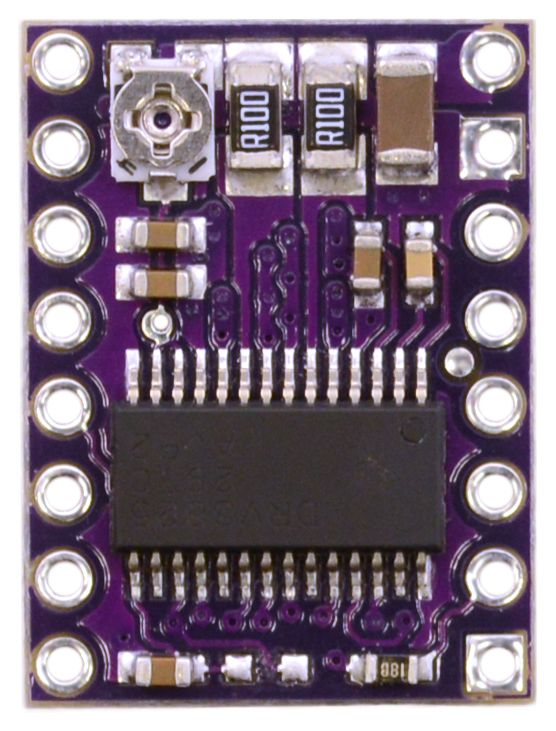

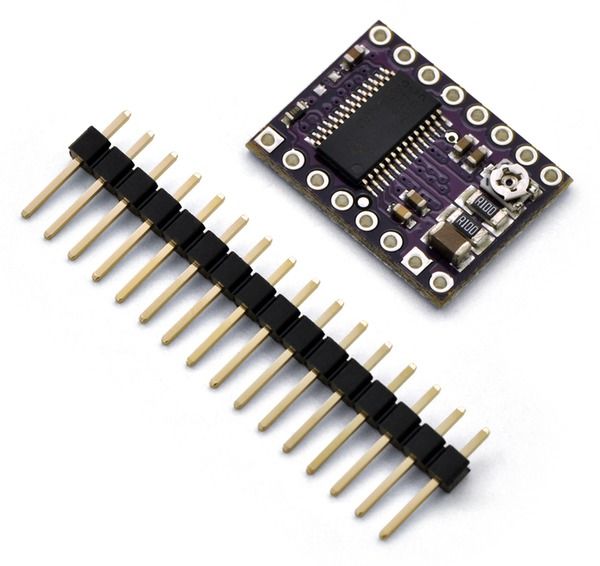

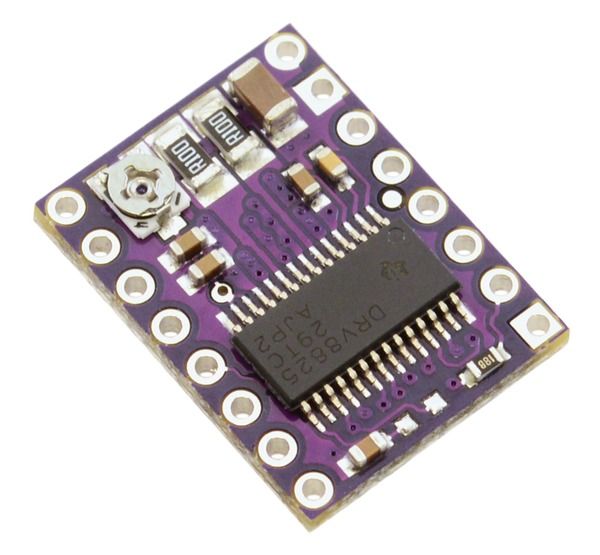

This product ships with all surface-mount components—including the DRV8825 driver IC—installed as shown in the product picture.
Texas Instruments DRV8825 stepper motor driver datasheet (743 Kb)
