Nema 17 JK42HS48-1684-08AF

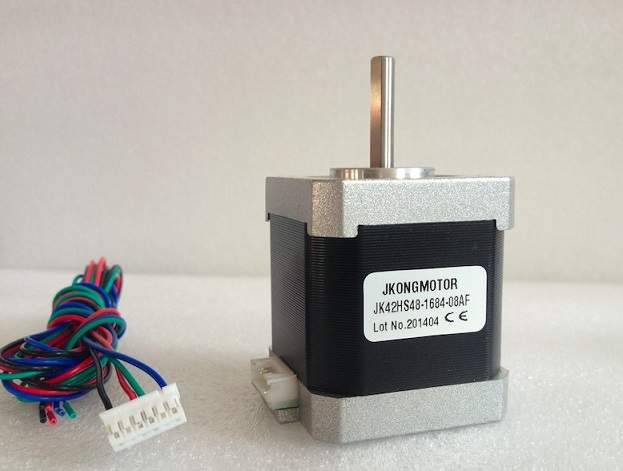

Shaft-Reversed Stepper Motor Nema 17 JK42HS48-1684-08AF

Motor paso a paso bipolar NEMA 17 de alto torque. Frecuentemente usado en Impresoras 3D, y Máquinas CNC.

COD: HTHR0214-50

Peso: 0.350 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 29191.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This is a shaft- reversed stepper motor that is frequently used in CNC machines and 3D printers.

The Advantages of step motors are low cost, high reliability, high torque at low speeds and a simple,  rugged construction that operates in almost any environment. They are typically digitally controlled  as part of an open loop system for use in holding or positioning applications.

This is a Nema 17 stepper motor with a 1.7 x 1.7 inch (43.2 x 43.2 mm) faceplate. The Nema 17 is  larger and generally heavier than for example a Nema 14, but this also means it has more room to  put a higher torque. However, its size is not an indication of its power.

Specifications:

  • 2 Phases.
  • Step Angle: 1.8±5% degree/phase.
  • Voltage: 4.2V DC.
  • Current: 1.2A/phase.
  • Resistance: 8.8±10% Ω/phase.
  • Inductance: 6.0mH±20 %( 1kHz 1V rms).
  • Lead style: AWG26 UL1007.
  • Comes with 70cm 4-Lead Wire.
  • Holding torque: 40N.cm Min.
  • Detent torque: 2.6N.cm Max.
  • insulation resistance:100MΩ Min (DC 500V).
  • Insulation class: B (130°C).
  • Rotor torque: 57g.cm 2.
  • 70cm long cable.
  • Package Size: 18cm x 14cm x 12cm (7.09in x 5.51in x 4.72in).
  • Package Weight: 0.37kg (0.82lb).
