Gravity: Analog Soil Moisture Sensor For Arduino
Sensor analógico capaz de medir la humedad del suelo, compatible con Arduino.
COD: DFSEN0114
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 15280.00
El producto no está disponible para la venta en este momento
Características
INTRODUCTION
A soil moisture sensor can read the amount of moisture present in the soil surrounding it. It's an ideal for monitoring an urban garden, or your pet plant's water level. This is a must have component for a IOT garden / Agriculture!

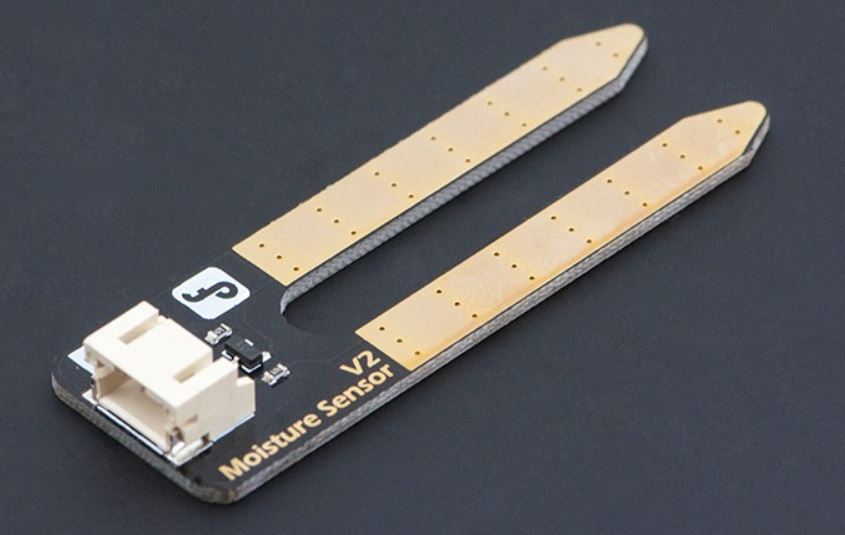

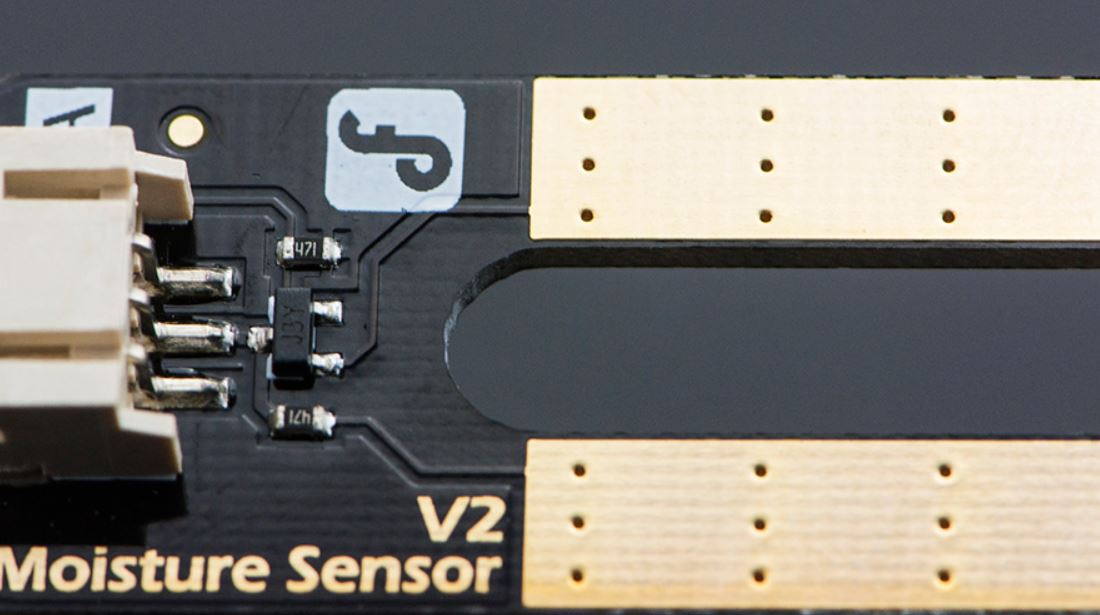

The new soil moisture sensor uses Immersion Gold which protects the nickel from oxidation. Electroless nickel immersion gold (ENIG) has several advantages over more conventional (and cheaper) surface platings such as HASL (solder), including excellent surface planarity (particularly helpful for PCB's with large BGA packages), good oxidation resistance, and usability for untreated contact surfaces such as membrane switches and contact points.

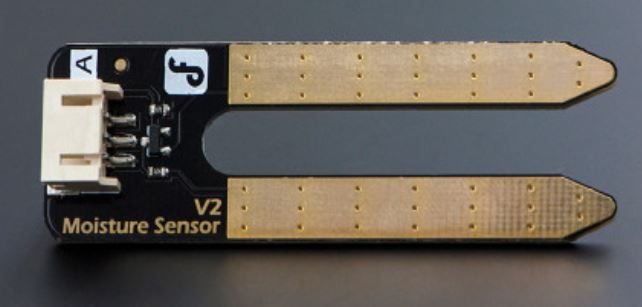

This soil moisture arduino sensor uses the two probes to pass current through the soil, and then it reads that resistance to get the moisture level. More water makes the soil conduct electricity more easily (less resistance), while dry soil conducts electricity poorly (more resistance). This sensor will be helpful to remind you to water your indoor plants or to monitor the soil moisture in your garden.
To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this sound senor connecting to your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.
SPECIFICATION
- Power supply: 3.3v or 5v
- Output voltage signal: 0~4.2v
- Current: 35mA
-

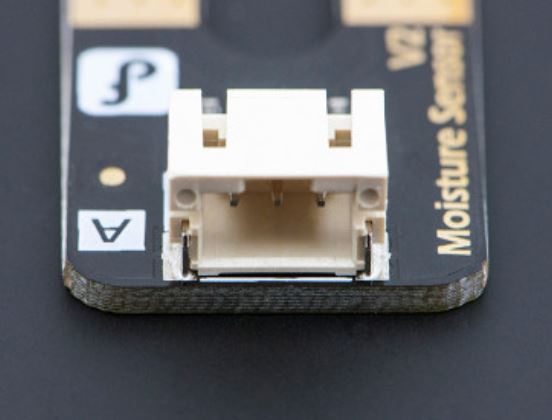

Pin definition:
- Analog output(Blue wire)
- GND(Black wire)
- Power(Red wire)
- Size: 60x20x5mm(2.36x0.79x0.2")
- Surface finish:Immersion Gold

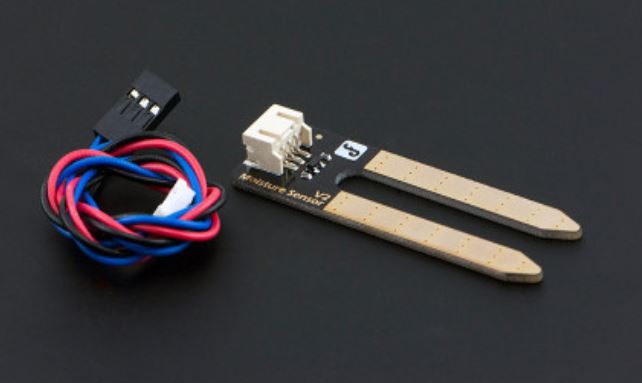

SHIPPING LIST
- Moisture sensor x1
- Analog Sensor Cable x1
moisture_sensor_schematic_xn.pdf (7 Kb)
moisturesample_r2.rar (0 Kb)
