15A Single DC Motor Driver

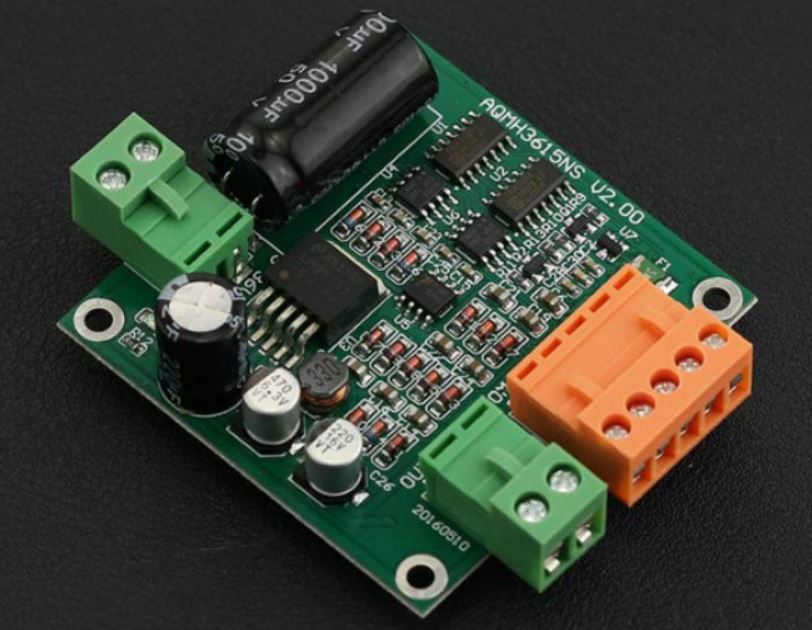

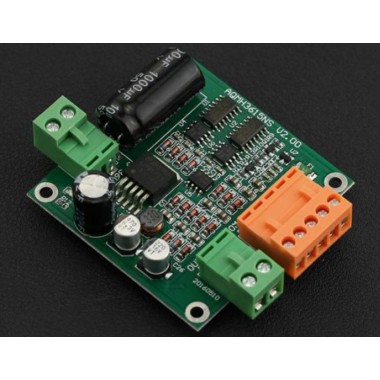

Principal

Pequeña pero potente placa driver para motores DC, que posee una corriente de operación continua máxima de 15A (se debe agregar un pequeño disipador). Voltaje de alimentación entre 12V y 36V.

COD: DFDRI0042

Peso: 0.042 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 710.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.



SPECIFICATION

  • Voltage supply: DC 12 ~ 36 V
  • Voltage supply limit: 6.5 ~ 40 V
  • Control signal Level (Compatible 3.3V/5V)
  • High: DC 2.0 ~ 5.5 V
  • Low: DC0 ~ 0.8 V
  • Maximum continuous operating current:
  • 12A (no heat sink)
  • 15A (with simple heat sink)
  • 20A (with Thick Heat Sink/ Cooling System)
  • Peak current: 110 A
  • Speed control: PWM
  • Minimum valid Pulse Width: 200 ns
  • Maximum Output Current @5V: 500 mA
  • Working Temperature: -25 ~ 85 °C
  • Mounting Hole: M3

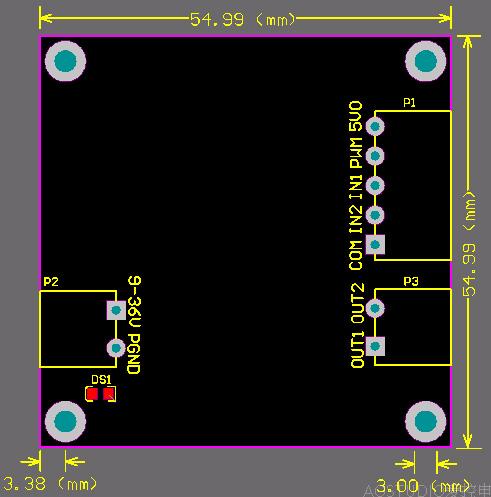

  • Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
  • Weight: 42g
