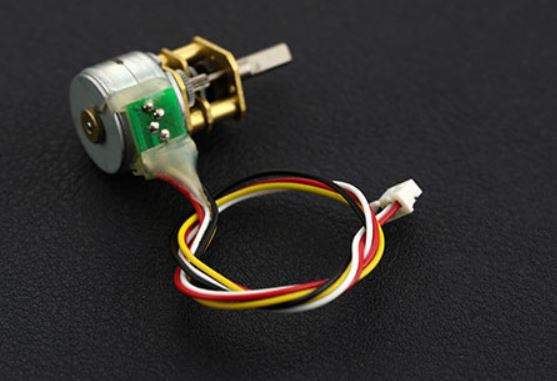

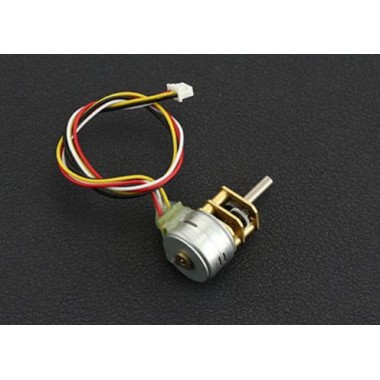

Micro Metal Geared Stepper Motor (12V 0.6kg.cm)

Principal

Pequeño motor paso a paso con una caja de reducción de 100:1. Se puede alimentar en un rango de 5-12 VDC. Ideal para impresoras 3d y aplicaciones que requieran precisión en el control de rotación.

COD: DFFIT0503

Peso: 0.014 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 15674.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

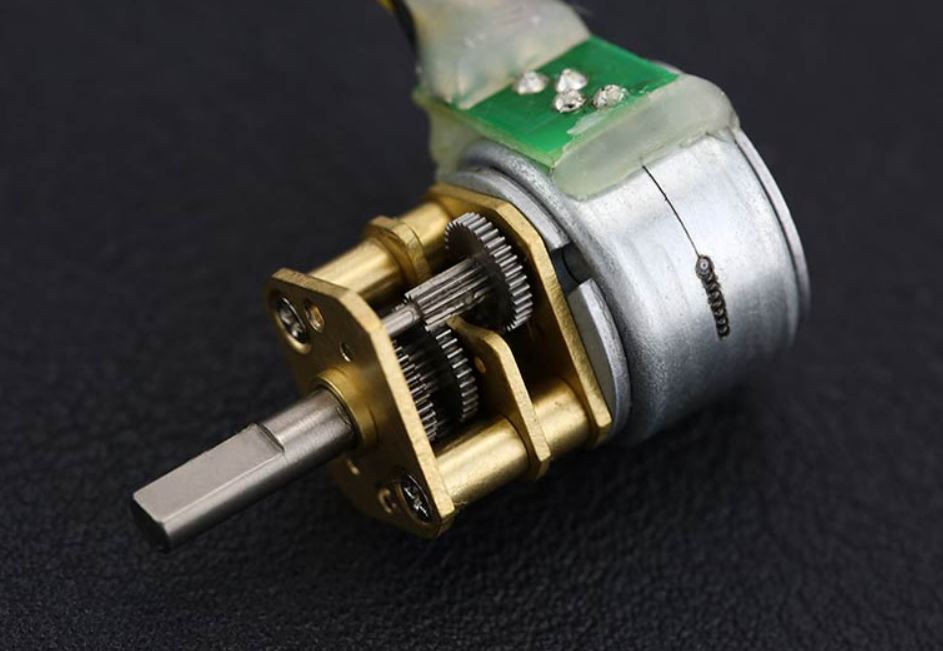

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for the 3D printers and applications which require precise rotation control.


Note: Please limit the motor current, or overlarge current will burn the motor.

SPECIFICATION

  • Stepper Motor:
  • Coil resistance: 30Ω±10%
  • NO. Of Phases: 2 PHASES
  • Step Angle: 18° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 6gf-cm min
  • Lead Out Torque: 10gf-cm max
  • Stepper Motor with Gear Box:
  • Step Angle: 18/100° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 0.5Kgf-cm min
  • Lead Out Torque: 0.8Kgf-cm max
  • Cable Length: 15cm
  • Weight: 14g
