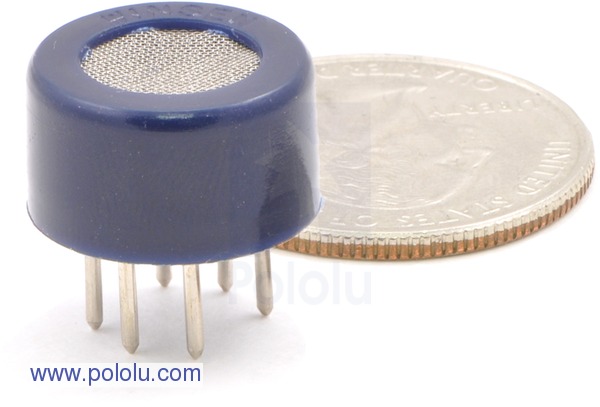

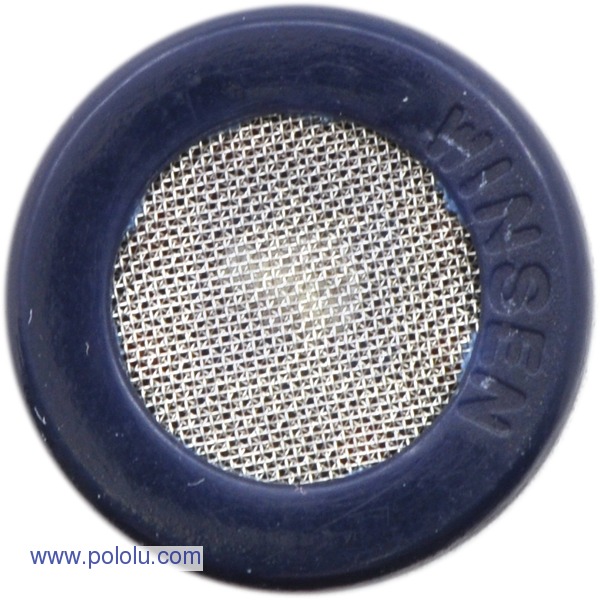

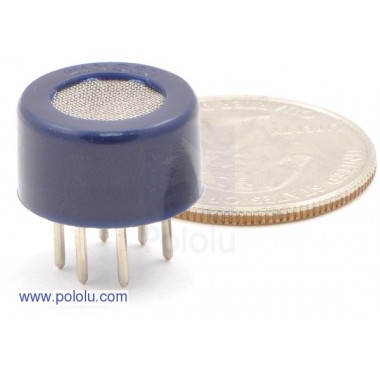

Sensor de vapores de alcohol MQ-3

Sensor de gas alcohol MQ-3

Sensor de vapores de alcohol MQ-3

COD: P001634

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 186.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This semiconductor gas sensor detects the presence of alcohol gas at concentrations from 0.04 mg/L to 4 mg/L, a range suitable for making a breathalyser. The sensor's simple analog voltage interface requires only one analog input pin from your microcontroller.

Overview

This alcohol gas sensor detects the concentration of alcohol gas in the air and ouputs its reading as an analog voltage. The concentration sensing range of 0.04 mg/L to 4 mg/L is suitable for breathalysers (the legal limit of breath alcohol concentration, or BrAC, in most US states is 0.08 grams per 210 liters, or 0.38 mg/L). The sensor can operate at temperatures from -10 to 50ºC and consumes less than 150 mA at 5 V. Please read the MQ3 datasheet for more information about the sensor.

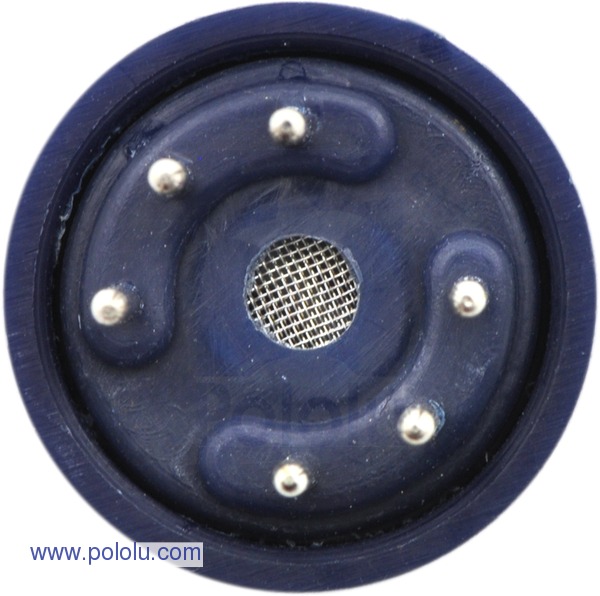

Connections

Connecting five volts across the heating (H) pins keeps the sensor hot enough to function correctly. Connecting five volts at either the A or B pins causes the sensor to emit an analog voltage on the other pins. A resistive load between the output pins and ground sets the sensitivity of the detector. Please note that the picture in the datasheet for the top configuration is wrong. Both configurations have the same pinout consistent with the bottom configuration.The resistive load should be calibrated for your particular application using the equations in the datasheet, but a good starting value for the resistor is 200 kO.
