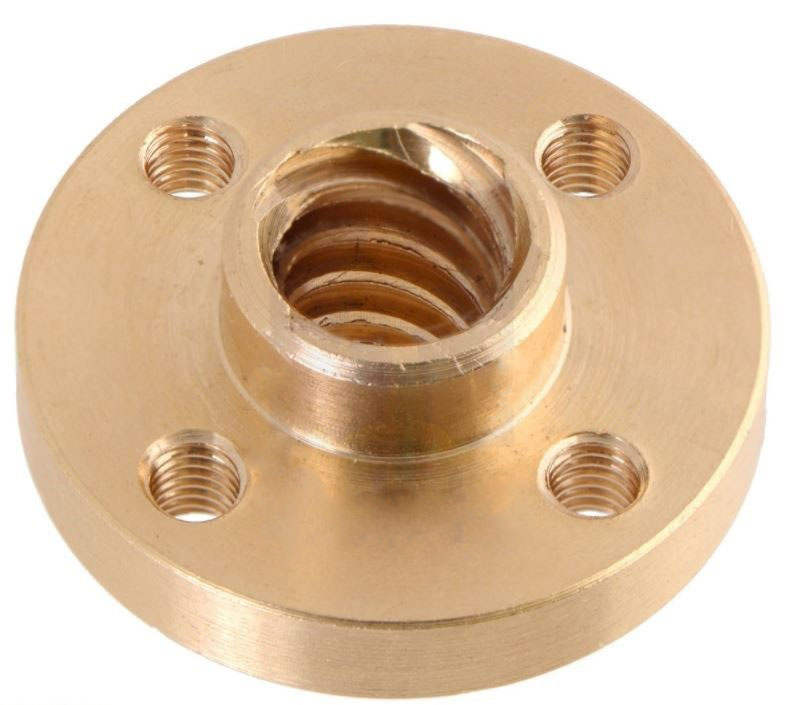

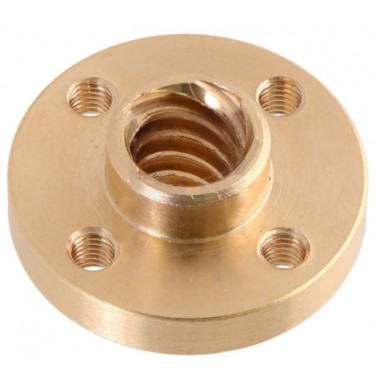

Traveling Nut for TR8x8(P2) Threaded Rods

Principal

Tuerca de desplazamiento y de material cobre, presenta 4 agujeros para tornillos M3. Está diseñada para usar con varillas roscadas Tr8 ×8(P2)

COD: P002688

Peso: 0.012 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 222.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

This copper alloy traveling nut (also known as a carriage nut) features a mounting flange with four holes threaded for M3 screws. It is intended for use with Tr8×8(P2)leadscrews, which are 8 mm-diameter rods with four independent trapezoidal threads spaced 2 mm apart. One full revolution of such a rod will result in a 8.0 mm linear displacement of the traveling nut.

Please note that the nut is not spring loaded, so changes in direction will result in loss of positioning precision due to backlash.

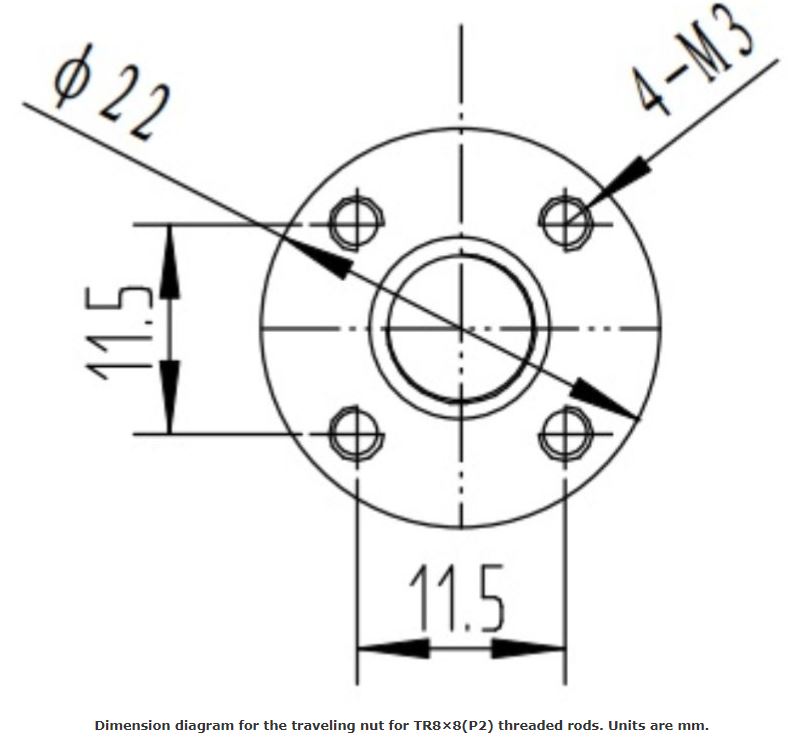

Dimensions for this nut are shown in the diagram below,  Units are mm:
