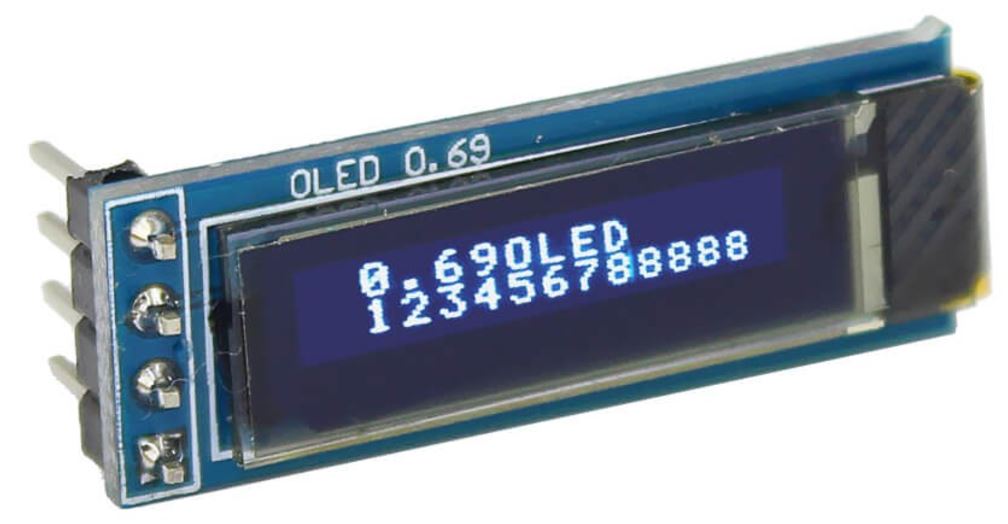

Display OLED I2C 0.69

Principal

Pantalla OLED de 0.69 pulgadas basada en el controlador SSD1306; posee interfaz I2C y tiene una resolución de 96x16 pixels azules. Se pueden usar con Arduino y Raspberry entre otros.

COD: EDLO16025O

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 290.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

This 0.69inch IIC OLED display is the graphic OLED display module made of 96x16 individual blue OLED pixels,diagonal is only 0.69 inch.The controller ic SSD1306, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 3-5V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.


Specifications

  • IC: SSD1306
  • Display type: OLED
  • Brightness(Typ):150cd/m2
  • Operating Temperature: -40℃~70℃
  • Contrast Ratio(Typ): 10000:1
  • Dimension:0.69 inch
  • Resolution:96*16
  • Voltage:3.0-5.5V
  • Interface:IIC
  • Light Color:blue

Package list

  • I2C 0.69"Blue OLED LCD Module for Arduino
