0.56 inch Dual Digit Numeric Display - Red (Common Cathode)

0.56

Display LED de 7 segmentos, 2 digitos, rojo, de cátodo común.

COD: EDDC05602C

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 15.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

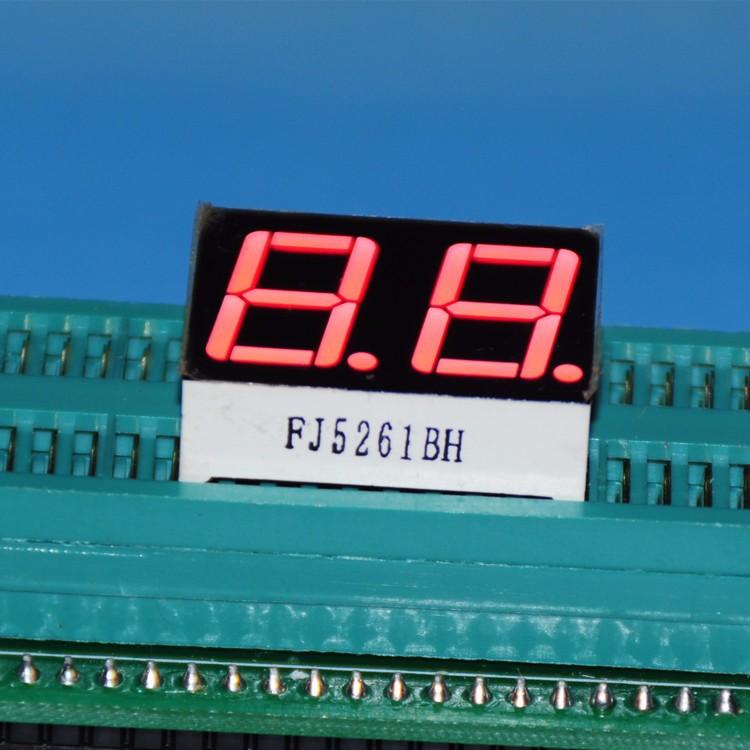

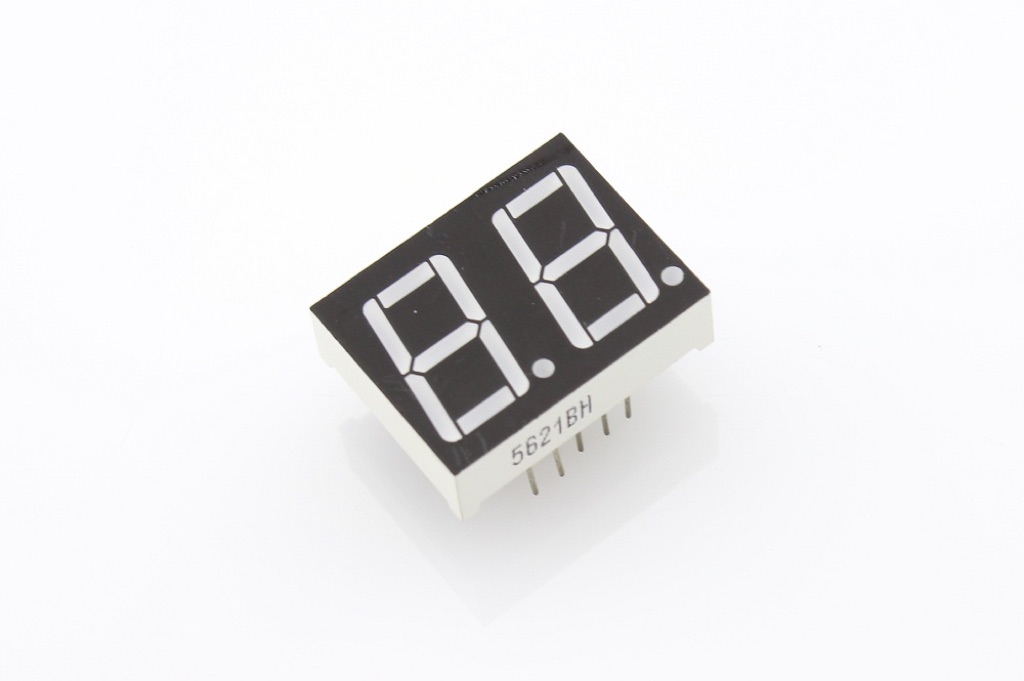

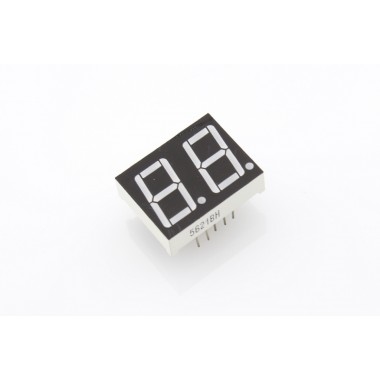

This is a basic, 2-digit 7-segment display - red in color. It's common cathode. The display features one decimal point per digit. The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. The hardware interface is ten (two rows of five) through-hole pins.


Overview:

This is a dual digit numeric display.Its digit height is 0.56" and it is common cathode. It releases red luster.



Features:

  • 0.56″ Digit Height.
  • Excellent Character Apperance.
  • Easy Mounting On P.C.B Boards Or Sockets.
  • I.C. Compatible.
  • Black /Gray Face, White Segment.





 Specification:





0.56

Digit2Emitted ColorNoPolarityCommon CathodeDigitron Size25 × 19 × 8mmPin Qty2 × 5Weight20 gModelIM120801008
