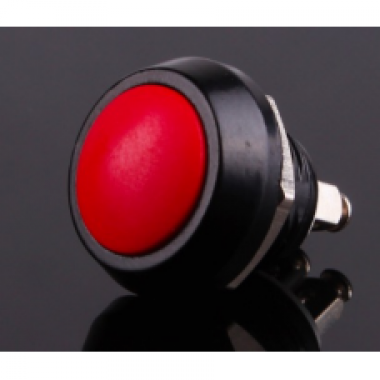

12 mm Electric Domed Head Momentary Push Button - RED

12 mm Electric Domed Head Momentary Push Button - RED

Pulsador plástico de panel de tipo normal abierto color ROJO. De tipo momentáneo, al dejar de presionarlo vuelve a su posición original.

COD: HTHR0589RU

Peso: 0.007 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1660.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Distinctive Features:

The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.



  • 1,000,000 cycles momentary
  • Anti-Vandal IK09/ Sealed IP65



Functions:

NO Function (normal open).

Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.

Model

V12-B-A



Terminal Type

Solder Terminals



Switching

No.1



Max. Switch Rating

2A/48VDC



Contact Resistance

≤50mΩ



Insulation Resistance

≥1000mΩ



Dielectric Strengh

2000VAC



Operation TEMP.

-20°c ~ +55°c



Mechanical Life

1, 000, 000 cycles



Electrical Life

200, 000 cycles



Contact Material

Silver Alloy



Panel Thickness

1~6mm



Torque

5~14Nm



Operation Pressure

5N



IP Degree

IP65



Material

Button

PBT



Body

Zn-Al alloy



Base

PBT



Head Color

RED
