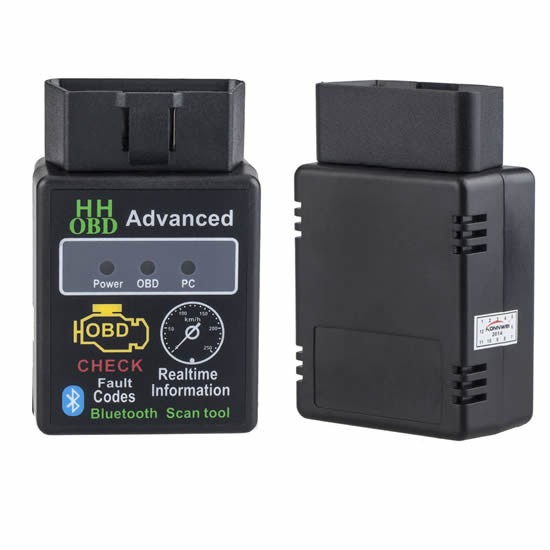

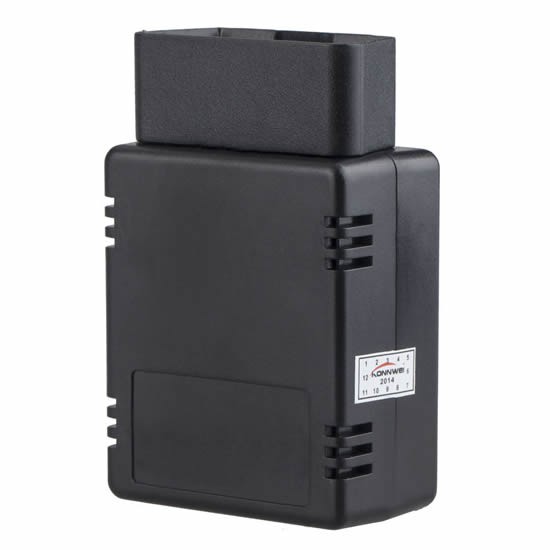

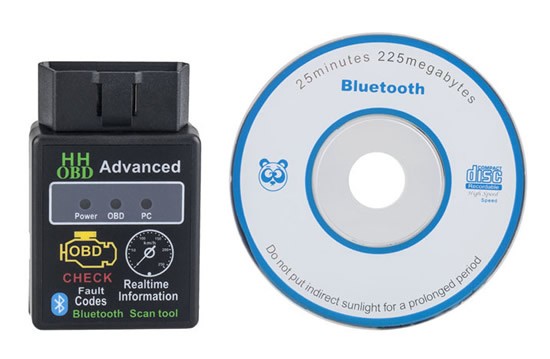

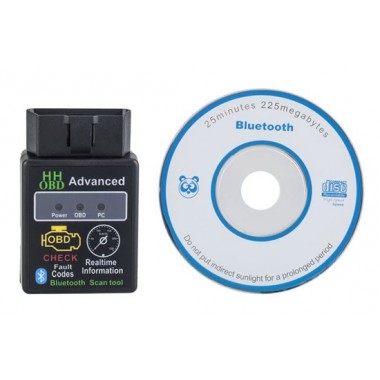

Bluetooth ELM327 Interface OBDII OBD2 Diagnostic Auto Car Scanner Scan tool

Bluetooth ELM327 Interface OBDII OBD2 Diagnostic Auto Car Scanner Scan tool

El escáner ELM327 OBD2 es la última herramienta de escaneo basada en PC. El HH Mini ELM327 Bluetooth Scan soporta todos los protocolos OBD-II. El protocolo de salida (conexión al ordenador portátil) es por USB. Es fácil de usar y muy útil para diagnosticar coches. El producto incluye un cd con programas compatibles con todos los sistemas operativos. ATENCION: Puede no ser compatible con algunos modelos de coches del Mercosur.

COD: HTHR0592

Peso: 0.042 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 18140.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION:



ELM327 Model Name: ELM327 G

Size: 70mm x 45mm x 25mm
Special Features: Bluetooth
Material Type: plastic
LED indicator: OBD Tx / Rx, RS232 Tx / Rx, Power
Net Weight:  0.01KG
Operating voltage: 12V
Software Update: No
Language: English
Car Maker: Audi, Australia Ford, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Daihatsu, Honda, Kia, Mazda, Peugeot, Porsche, Seat, Skoda, Smart, Tata, Toyota, Volvo, VW

HH OBD Mini ELM327 Bluetooth Scan Tool Best Features:
ELM327 OBD2 scanner is an  vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.
OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
To uninstall the program, simply delete the entire contents of the folder where the program resides.
The software supports four platforms - DOS, Windows, Android and IOS. This product is a non-oem, generic product.
Note: This device also can work with IOS system. DO not support win8,support computer system of 32bit

HH OBD Mini ELM327 Bluetooth Support OBD-II protocols as follows:
* ISO15765-4 (CAN)
* ISO14230-4 (KWP2000)
* ISO9141-2
* J1850 VPW
* J1850 PWM

HH OBD Mini ELM327 Bluetooth Specification
Device type: Car bluetooth read interface scanner
Interface type: Auto ELM327 V1.5 interface
Free software:
Scantool.net
GM Mode 22 Scan Tool by Terry
OBD Gauge for PalmOS and Pocket PC by Dana Peters
OBD Logger by Jonathan Senkerik
OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
obd2crazy.com
OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman
pyOBD by Donour Sizemore for MacOSX and Linux
RDDTC by Pete Calinski
Real Scan by Brent Harris
ScanTest for Pocket PC by Ivan Ganev aka a-ser
wOBD by WDT

HH OBD Mini ELM327 Bluetooth Features
Automatic
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)

- Works with all OBD-II compliant vehicles
- Wireless (Bluetooth)
- Software included for Palm, PDA
- Software included for Windows PC
- Software included for Windows Smartphone
- Supports ISO 9141, KWP2000
- Supports SAE J1850
- Supports CAN bus

HH OBD Mini ELM327 Bluetooth Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
