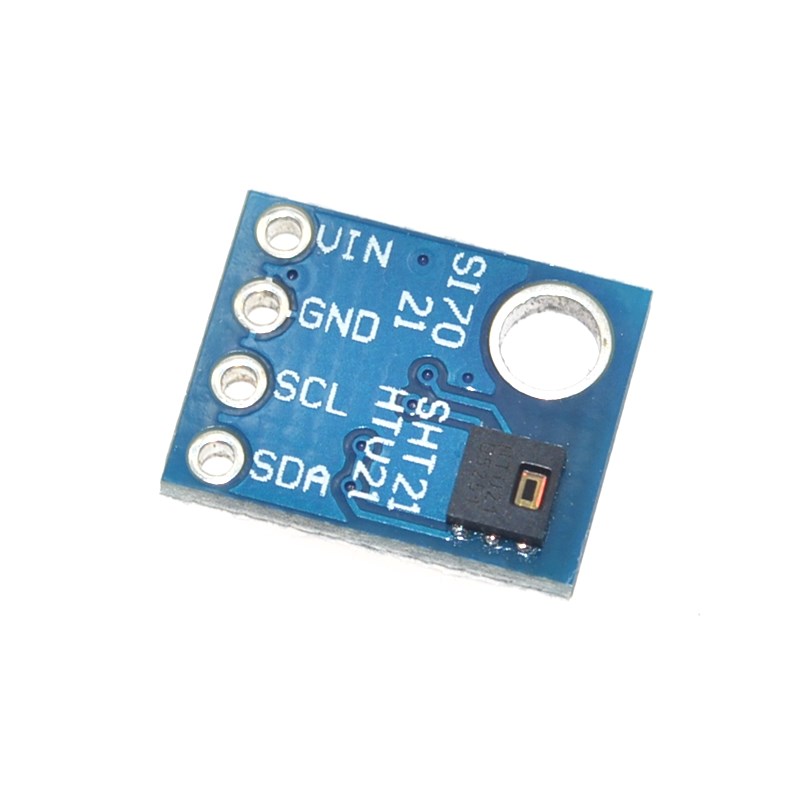

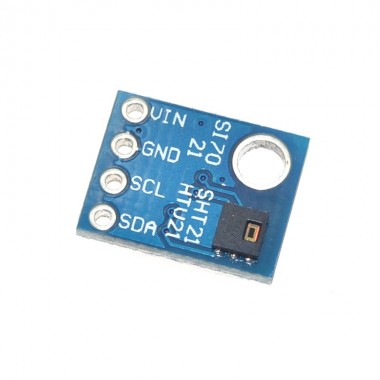

GY-21 Si7021 Industrial Humidity Sensor I2C
Sensor de humedad de alta precisión. Es compatible con Arduino y posee interfaz I2C. Para ser utilizado en múltiples aplicaciones. Puede ser alimentado con tensiones desde 1.9 a 3.6 voltios.
COD: HTHR0510
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 10581.00
El producto no está disponible para la venta en este momento
Características
Features:
- Precision Relative Humidity Sensor
- ± 3% RH (max), 0–80% RH
- High Accuracy Temperature Sensor
- ±0.4 °C (max), –10 to 85 °C
- 0 to 100% RH operating range
- Up to –40 to +125 °C operating range
- Wide operating voltage (1.9 to 3.6 V)
- Low Power Consumption 150 μA active current
- 60 nA standby current
- Factory-calibrated
- I2C Interface
- Integrated on-chip heater
- 3x3 mm DFN Package
- Excellent long term stability
- Optional factory-installed cover
- Low-profile
- Protection during reflow
- Excludes liquids and particulates
- Size: 1.3*1cm/0.51*0.39"
Applications:
- HVAC/R
- Thermostats/humidistats
- Respiratory therapy
- White goods
- Indoor weather stations
- Micro-environments/data centers
- Automotive climate control and defogging
- Asset and goods tracking
- Mobile phones and tablets
