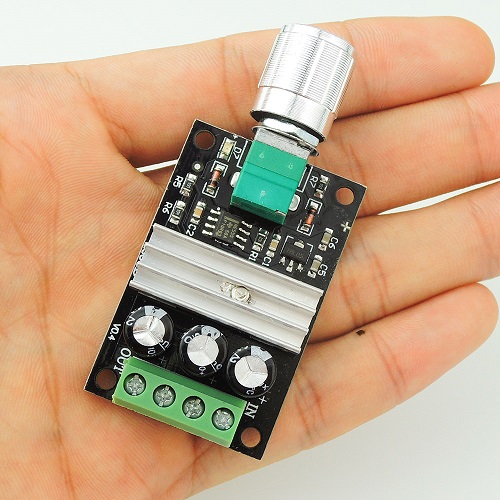

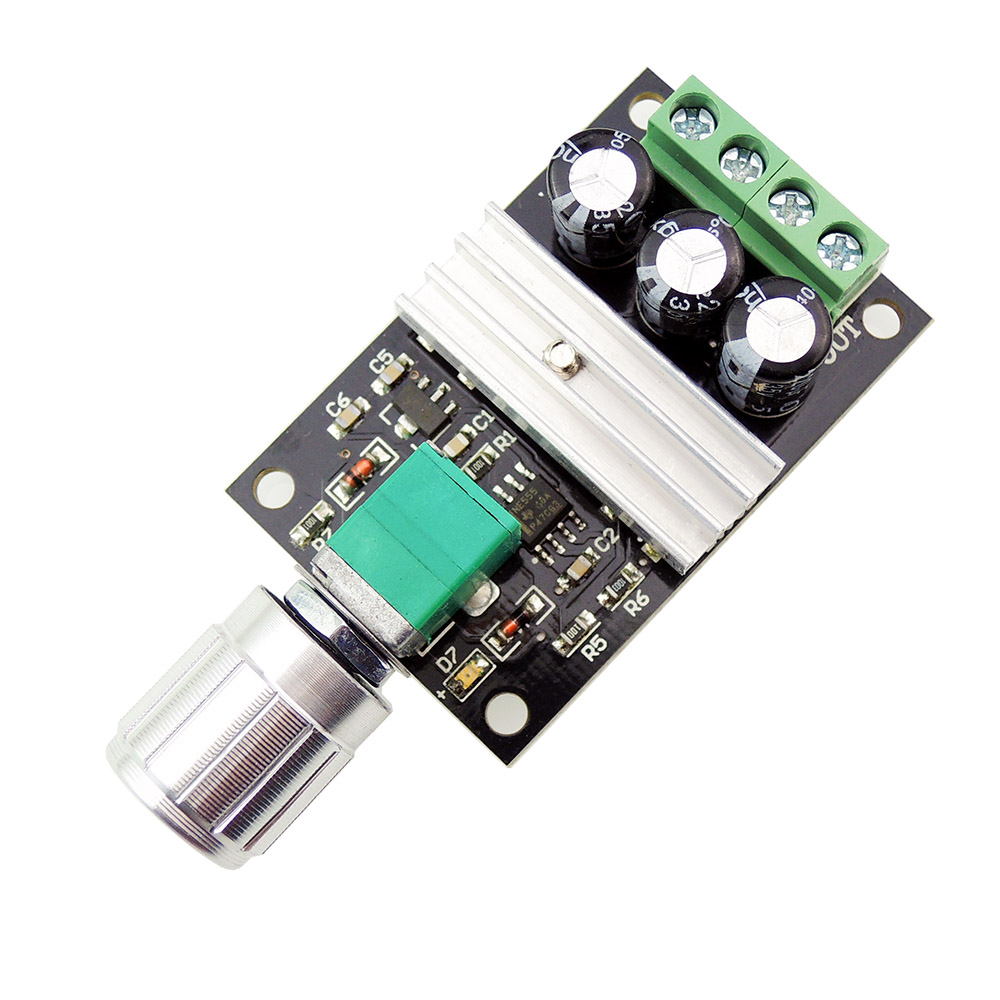

DC 6V - 28V 3A PWM Motor Speed Regulator

DC 6V - 28V 3A PWM Motor Speed Varible Regulator Controller Switch

Variador de velocidad mediante PWM para motores DC. El módulo posee un potenciómetro para regular la velocidad. Admite un rango de entrada de 6-28 voltios, con una corriente máxima de salida de 3A.

COD: HTHR0496

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 129.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
  • The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
  • The maximum continuous output current :3A.
  • Duty Cycle adjustable: 0%-100%
  • Input supply voltage: 6V-28VDC.
  • The maximum output power: 80W.



Operating instruction:

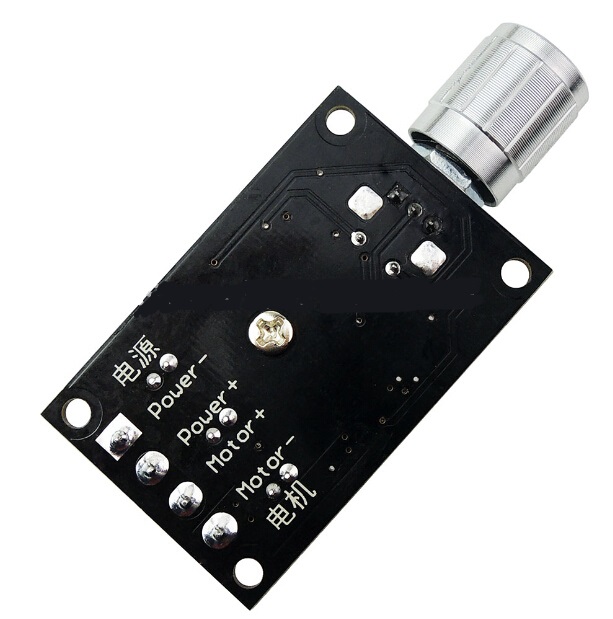

1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 6V-28V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.


Important Notes:


An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation.
The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes.

Package Includes :

*1X DC Motor Speed Control
