4.3cm*3.0cm*1.2cm
Productos

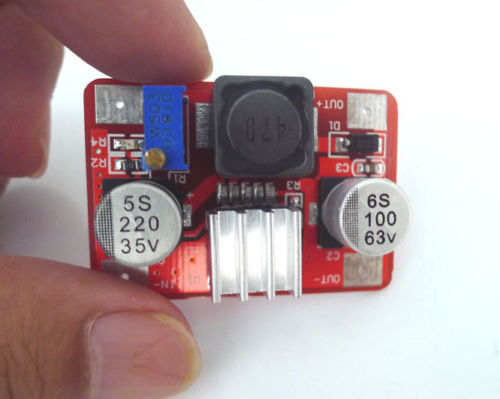

High Voltage DC-DC Boost 2A 5-56V
Fuente switching step-up (elevadora) de alta eficiencia. Admite tensiones de entrada tan bajas como 3.5 VDC, y permite obtener hasta 56 VDC a la salida, con una corriente máxima de entrada de 3A.
COD: HTHR0492
Peso: 0.030 Kg
Disponibilidad: Sin Stock
ARS 12326.00
El producto no está disponible para la venta en este momento
Características
Features :
- Modules nature: Non-isolated step-up (Boost)
- Rectification: Non-synchronous rectification
- Input voltage: 3.5V-35V
- Output voltage: 5V-56V (Must ensure that set the output voltage is higher than the input voltage)
- Input current: 3A (max), Rated current:2A
- Conversion efficiency: 90%
Dimension:
Applications:
- DIY a mobile power supply
- Boost charger
- Power supply for electronic equipment
Package
1 x DC-DC Boost Converter Step Up Voltage Adjustable Module (There is no User's Manual in the package.)
