DP83848 DP83848IVV Network Ethernet Module Stable Development Board Transceiver

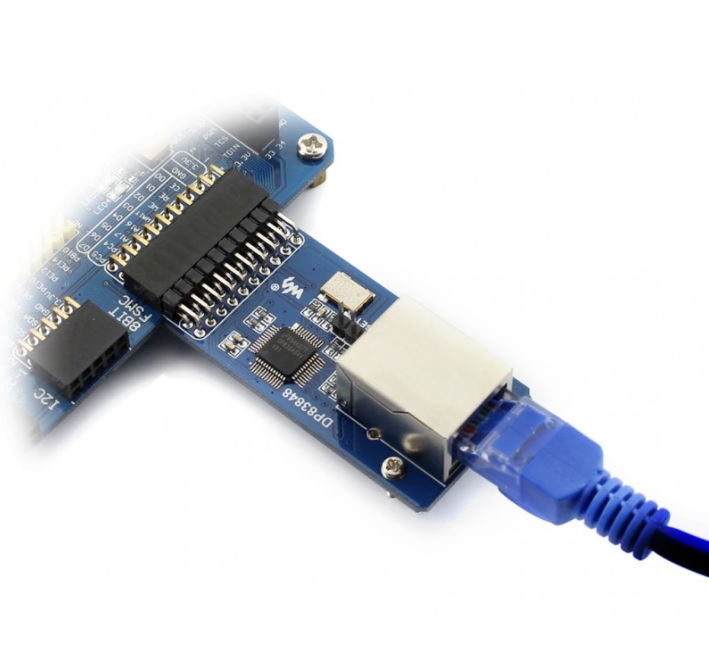

Módulo adaptador Ethernet de muy bajo consumo. Ideal para aplicaciones de Web Server. Ejemplos disponibles para utilizar con ARM STM32F4DISCOVERY.
COD: HTHR0214-145A
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 20756.00
El producto no está disponible para la venta en este momento
Características
Description:

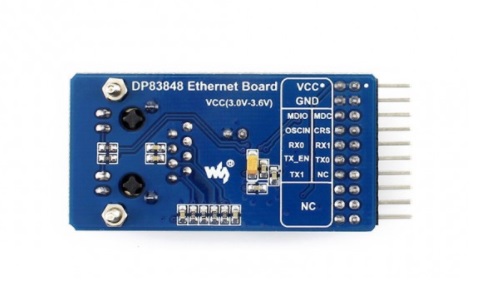

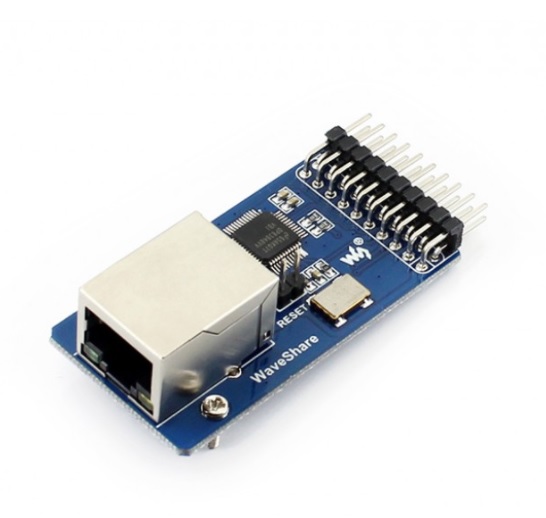

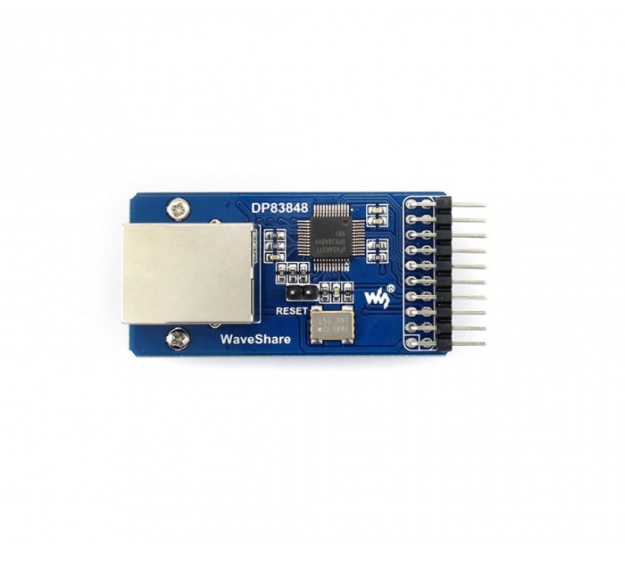

The DP83848 Ethernet Board is an accessory board includes an onboard Ethernet Physical Layer Transceiver DP83848, RJ45 connector, and control interface:
1.High-performance 10/100 Ethernet transceiver (PHY)
2.Smal consumption.Adopting 0.18um CMOS technique and can use 3.3V+/-0.3V single power supply
3.Adopt RMII port (DP83848 MII/RMII/SNI alternative)
4.Support HP Auto-MIDX
5.Adopt 48pin LQFP package(7*7mm)chip
6.Flexible power management structures
7.3.3V MAC port
Size: 2.36 in x 1.06 in x 0.87 in (6,0 cm x 2,7 cm x 2,2 cm)
Application Fields:Embedded WEB server
Links:
http://blog.tkjelectronics.dk/2012/08/ethernet-on-stm32f4discovery-using-external-phy/
dp83848-ethernet-board-schematic.pdf (219 Kb)
dp83848-ethernet-board-code.7z (553 Kb)
