Banana Pi M1

Principal

Mini computadora Banana Pi M1 basada en un procesador A20 ARM Cortex-A7 y con una memoria RAM DDR3 de 1 GB. Corre Android, Raspbian, Ubuntu, OpenSUSE, Debian y Bananian.

COD: SINOBPID1

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1306.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

What is Banana Pi M1?

Banana Pi is an open-source single-board computer that is affordable and powerful. It features high performance AllWinner dual-core SoC at 1GHz, 1GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections. It can run on a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.
The Banana Pi M1 is our first product in our goal of creating an open source devlopment board community. With a Banana Pi, we want you to explore and experience the world of DIY projects and portable computing. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding.

Key Features

  • Dual-core 1.0GHz CPU.
  • 1 GB DDR3 memeory.
  • Mali-400 MP2 with Open GL ES 2.0/1.1.

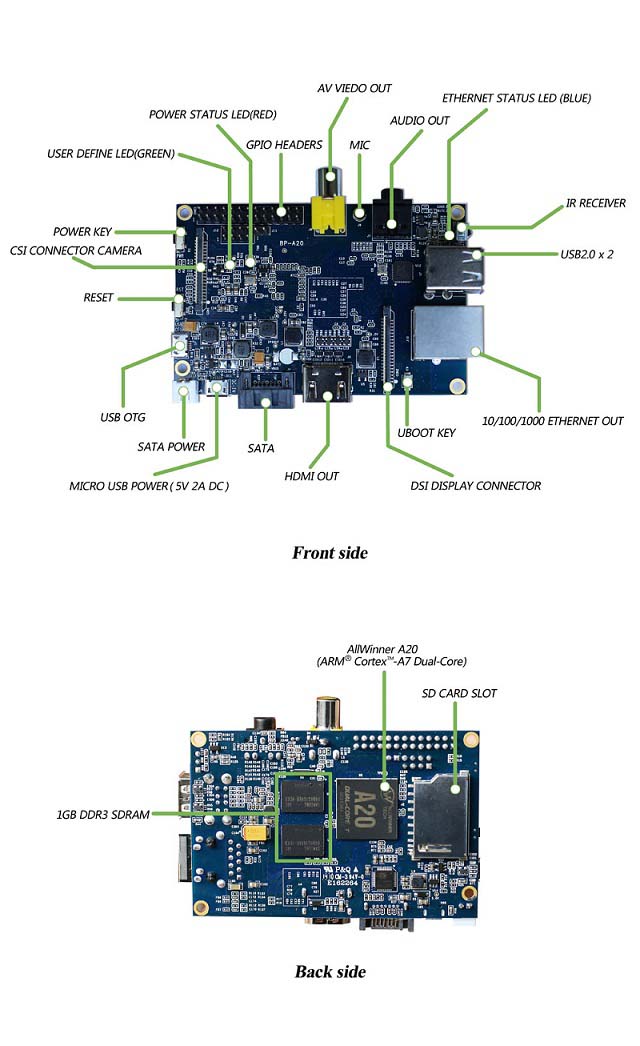

M1 Specifications

  • CPU A20 ARM Cortex-A7™ Dual-core
  • GPU ARM Mali-400 MP2 with Open GL ES 2.0/1.1
  • Memory 1 GB DDR3 SDRAM
  • Storage Support SD Card(up to 64GB)/SATA(up to 2TB)
  • Onboard Network 10/100/1000 Ethernet RJ45
  • Video In CSI input for video cameras
  • Video Out HDMI,CVBS,LVDS/RGB
  • Audio Out 3.5 mm Jack and HDMI
  • Audio In On board microphone
  • Power Source Micro USB, optional 5V DC port (center positive 1,6 x 4,4mm)
  • USB Ports 2x USB 2.0
  • Buttons Reset: next to Micro USb
  • Power: next to reset
  • Boot(optional): behind HDMI connector

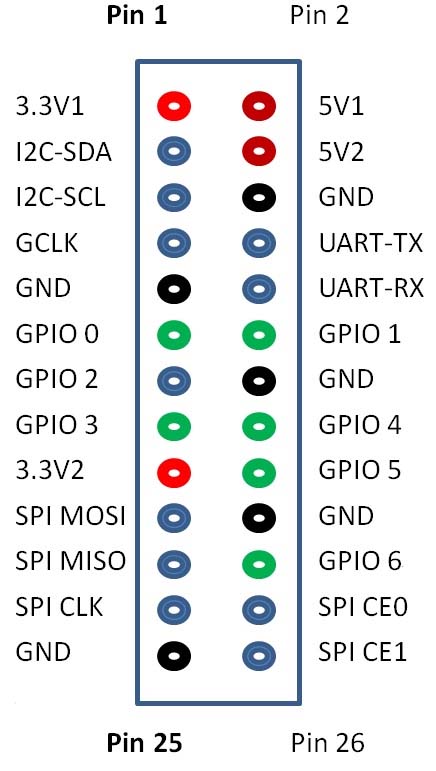

  • GPIO GPIO, UART, I2C Bus, SPI Bus with two chip select,
  • CAN bus, ADC, PWM, +3.3v, +5v, ground
  • LED Power key and RJ45
  • OS Android, Raspbian, Ubuntu, OpenSUSE, Debian, Bananian
  • Dimensions 92mm x 60mm
  • Weight 48g
