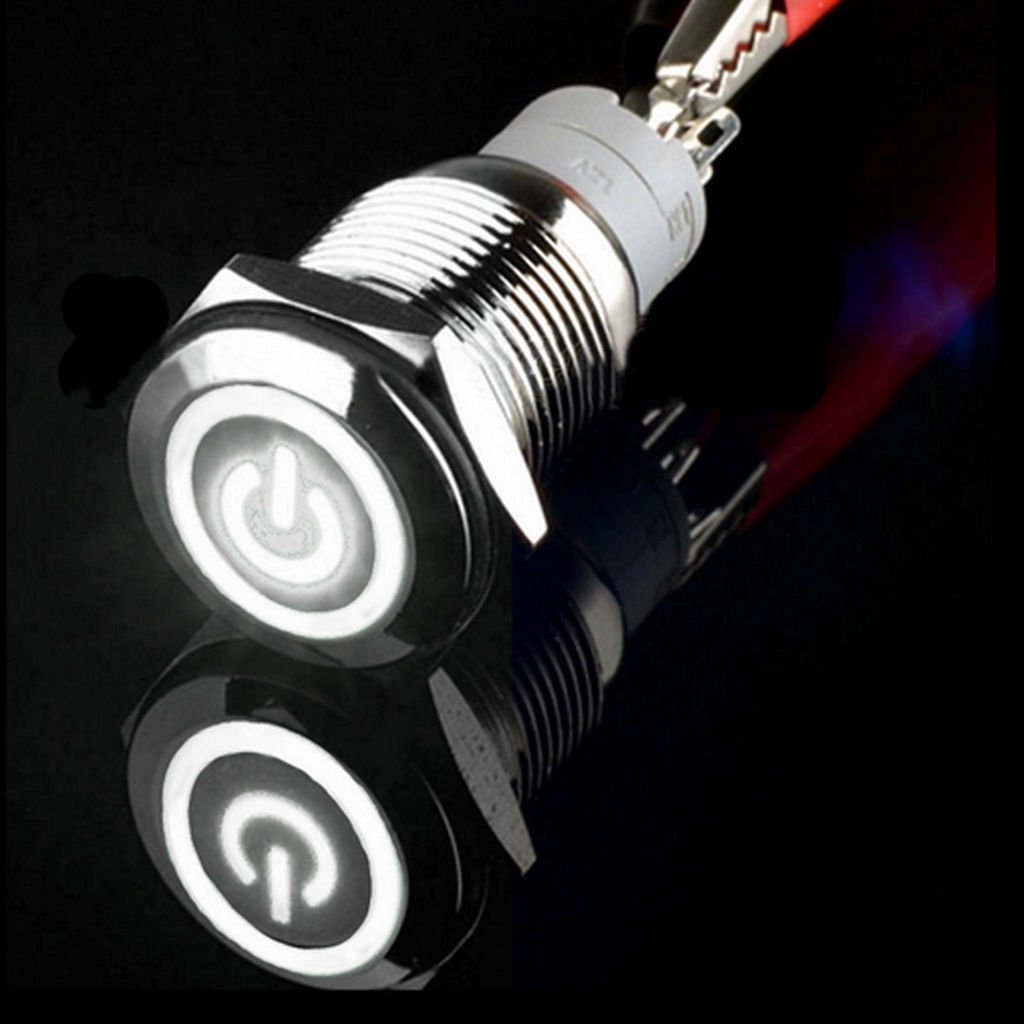

Stainless Steel Push Button Switch Power Symbol LED - 16mm WHITE
Pulsador metálico plano de tipo momentáneo, con LED indicador interno de buena luminación. Color del LED: Blanco, diámetro de la rosca: 16 mm. Incluye tuerca. Requiere resistencia limitadora externa para alimentar el LED (se incluye una de 180 ohms, para 5V).
COD: DAGQ16F10EP-W
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 7134.00
El producto no está disponible para la venta en este momento
Características
Overview:
- Model Number: GQ16F-10E.
- Panel mounting hole : 16mm.
- Function: 1NO Momentary.
- Material : Stainless Steel.

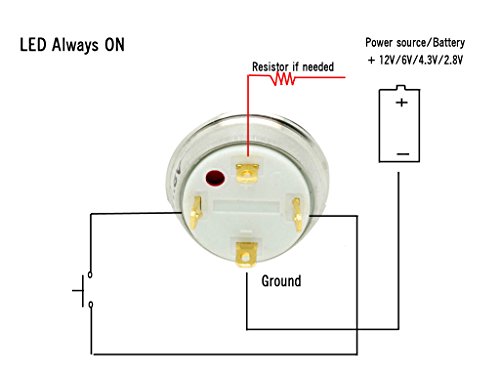

- Terminal : 4pins (two for powering the led, and two for the switch).
- Color of LED: White.
- LED: With LED.
Description:
|
Whether with LED |
With LED |
|
Operation Type |
Momentary |
|
Crust Material |
Stainless Steel |
|
Color |
Metal |
|
Contact Type |
1NO |
|
Maximum Voltage |
250VAC |
|
Thermal Current |
3A |
|
Minimum Applicable Load |
5V AC/DC,1mA |
|
Contact Material |
Silver Plated |
|
Terminal Style |
.110” Solder/Quick Connect |
|
Operating Temperature |
-25°C ~+55°C |
|
Operating Humidity |
45%~85% RH |
|
Contact Resistance |
50mΩ max. |
|
Insulation Resistance |
100mΩ min. (500V DC megger ) |
|
Vibration Resistance |
10~55HZ, amplitude 1.2mm p-p |
|
Degree of Protection |
>10g |
|
Electrical Life |
100,000 operations min. (at full rated load) |
|
Mechanical Life |
Momentary:1,000,000 operations min. |
|
Dielectrical Life |
Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
|
Soldering Temperature |
20W/5 seconds or 260 °C/3 seconds |
gq16f-10em_xv.pdf (248 Kb)
