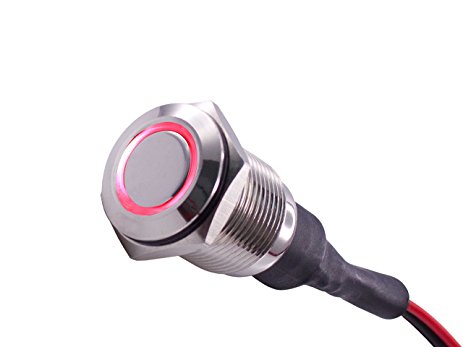

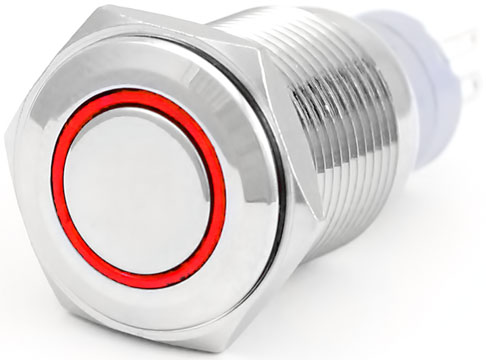

Stainless Steel Push Button momentary ring illuminated - RED

Stainless Steel Push Button Switch Power Symbol LED - RED

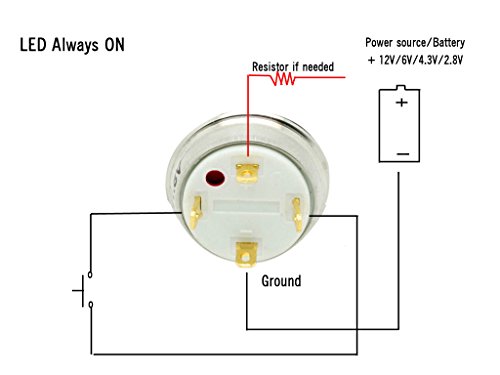

Pulsador metálico plano de tipo momentáneo de 5v, con iluminación led color ROJO y diámetro de rosca: 16 mm. Incluye tuerca y junta. Incluye resistencia limitadora externa de 180 ohms para alimentar el LED de 3 voltios. Para aplicaciones tal como elevadores, dispensadores de boletos, aplicaciones de tipo industrial, etc. Calificado como IP67 (nivel de resistencia al polvo y agua).

COD: DAGQ16F10E-R

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 379.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • The elevator push button are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
  • It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
  • It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
  • For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
  • These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.
  • We can’t talk out their advantage in a few words, but they are more and more popular in the world.

Pls check the datasheet below:

Rating: 3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: 50,000 Cycles Function: momentary or latching
Dielectric strength: 2,000VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1,000mΩ min Panel cutout: 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.
LED voltage: 3V, 6V, 12V, 24V, 48V, 110V, 220V Waterproof Grade: IP40-IP67
 Contact Configuration:  Single Pole, Double Pole OEM or ODM: Available
