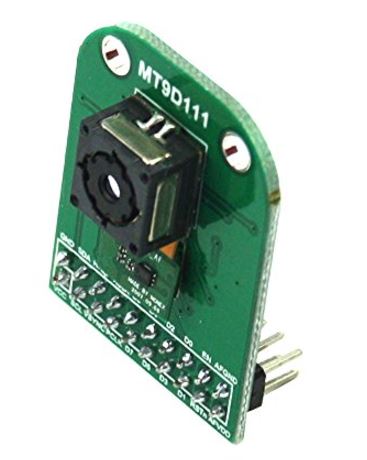

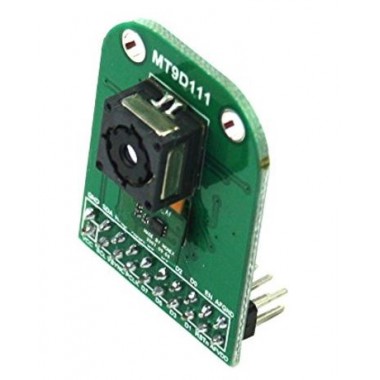

2MP MT9D111 Auto Focus lens camera flex module with Adpater board

Principal

Módulo MT9D111 que incluye una cámara de 2 MP con auto-foco. Compatible con la placa ArduCAM CC3200.

COD: UCB0054

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 584.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Item Description

Features:

  • Aptina MT9D111 camera module with Auto Focus Lenss
  • Flex Calbe 0.4mm pin pitch
  • Provide pin out and mating connector datasheet and technical supports
  • DigitalClarity CMOS imaging technology
  • Ultra low-power, low-cost, progressive scan
  • 2-megapixel resolution (1,600H x 1,200V)
  • 1/3.2-inch optical format
  • 15 frames per second (fps) at full resolution
  • Integrated auto focus and optical zoom
  • Real-time JPEG encoder
  • Integrated microcontroller for flexibility
  • On-chip image flow processor for single-chip camera module
  • On-chip auto focus with configurable GPIO interface
  • Mechanical shutter support
  • Numerous automatic functions for on-the-fly image correction and enhancement
  • Fully automatic Xenon- and LED-type flash support,including fast exposure
  • adaptation
  • On-chip, 10-bit analog-to-digital converter
  • Two-wire serial interface
  • ITU_R BT.656 (YCbCr), 565RGB, 555RGB, 444RGB and raw output data formats
  • JPEG 4:2:2 and 4:2:0 output



Package including:


   2Megapixel MT9D111 Auto Focus lens camera flex module with Adapter Board
