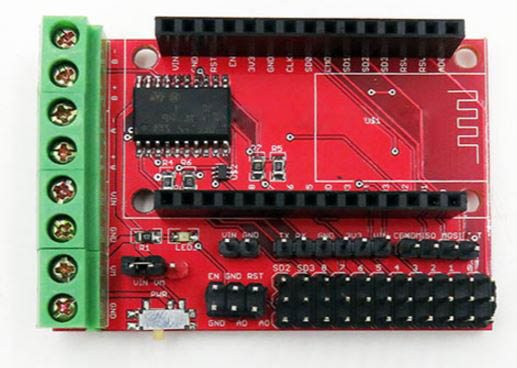

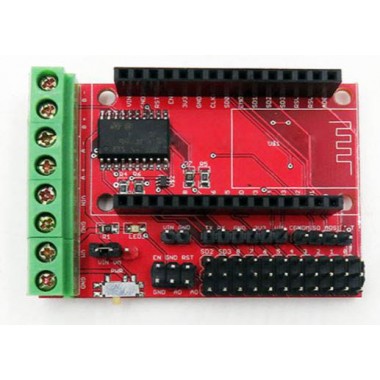

NodeMCU Motor Drive L293D Shield, WifiCar

Principal

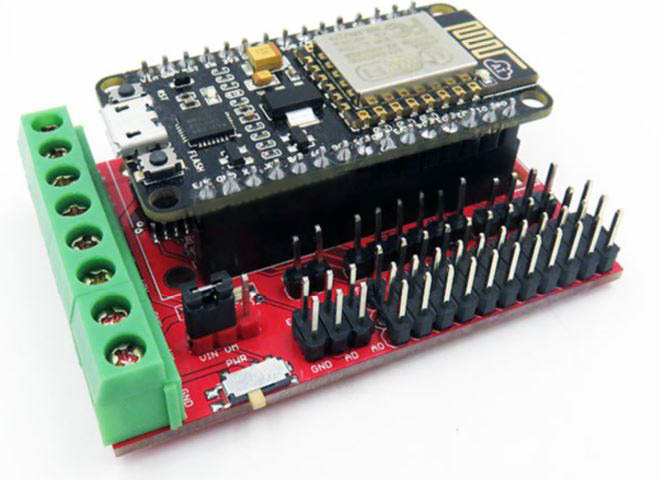

Placa que incluye el driver de motores L293D y los pines listos para insertar el NodeMCU basado en el ESP-12F. A partir de este dispositivo podrás controlar un auto a control remoto a través de Wifi. (No incluye el NodeMCU ni el auto a control remoto)

COD: TROSDR1064

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 171.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

This WiFi RC smart car is designed and developed based on ESP-12F from ESP8266, which can be controlled by mobile, PC. This is motor shield only, you maybe need nodemcu board and a remote car chassis to drive as kit.

Package ONLY includes the Motor shield, NOT including the nodemcu board.

Features:

  • On Board motor drive L293D IC, support to drive two channels of DC motors via screw terminals.
  • Motor power supply (VM): 4.5V ~ 36V, can be a separate power supply;
  • Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately;
  • Module provides short-circuit sub (short the VM and VIN), you can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor; Otherwise your nodemcu will be burned.
  • Logic Operating current Iess: ≤60mA (Vi = L), ≤22mA (Vi = H);
  • Working current driving portion Io: ≤1.2A;
  • Maximum power dissipation: 4W (T = 90 ℃)
  • Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
  • Working temperature: -25 ℃ ~ + 125 ℃
  • Drive Type: Dual high-power H-bridge driver
  • Support wireless 802.11 b / g / n standards;
  • Support STA / AP / STA + AP three operating modes;
  • Built-in TCP / IP protocol stack to support multiple TCP Client connection (5 MAX);
  • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA;
  • AD0: 1 Road ADC;
  • Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA;
  • Transfer rate: 110-460800bps;
  • Support UART / GPIO data communication interface;
  • Remote firmware upgrade (OTA);
  • Smart Link supports intelligent networking capabilities.
  • It can work at many modes, such as: AP mode and STA mode.
