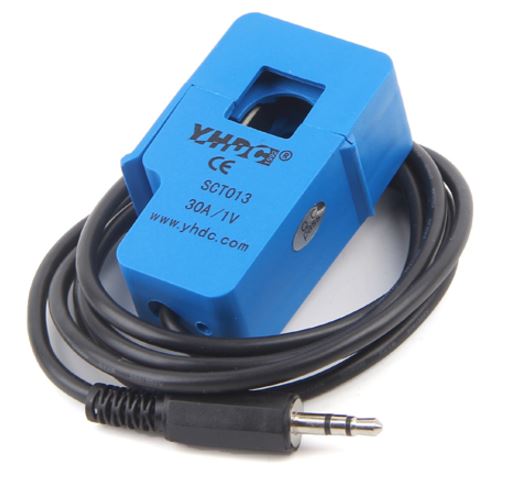

Non-Invasive AC Current Sensor 30A

Principal

Sensor de corriente AC no invasivo de tipo transformador de intensidad, capaz de medir hasta 30A.

COD: TROSVC1008

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 19634.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

This is non-invasive CT (Current Transformer) sensor, based on the magnetive transomfer working principle, which is hard to be explained by us but you can read a lot on this current transformer wiki page, or similar device “current clamp”. If you are interesting on power energy measurement, power grid, or measuring any alive domestic appliance or your system, this is one thing fun to try.

Applications

  • Suitable for the current measuring
  • Monitoring and protection of AC motor
  • Lighting equipment
  • Air compressor

Specifications

  • Non-linearity: ±3%
  • Resistance Grade: Grade B
  • Work Temperature: -25°C ~ ﹢70°C
  • Dielectric Strength(between shell and output): 1000V AC/1min 5mA
  • Leading Wire in Length: 1m
  • Open Size: 13mm x 13mm

For 30A AC Version: sensing current: 0~30A AC; Output Mode: 0~1V
