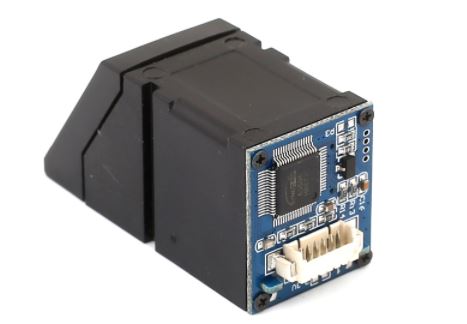

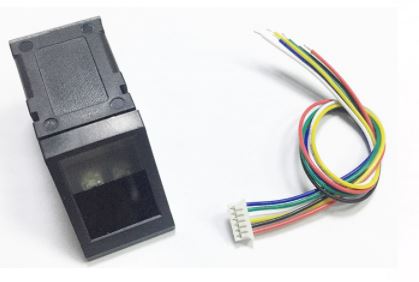

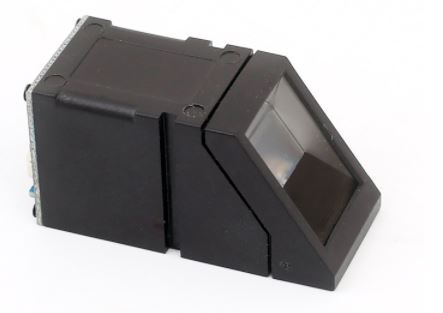

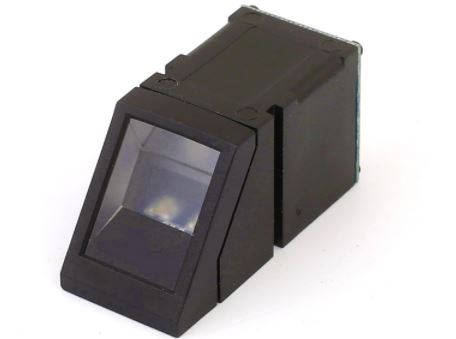

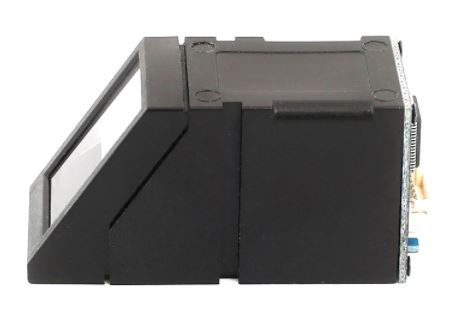

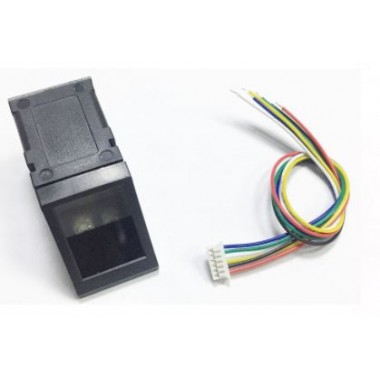

R307 fingerprint sensor module
El R307 es un lector de huellas dactilares con interfaz UART/USB2.0 de muy bajo consumo. Se puede utilizar para control de acceso, seguridad en varias aplicaciones de deposito de plata, cerraduras de puertas de los autos, etc.
COD: GRR307
Peso: 0.019 Kg
Disponibilidad: Sin Stock
ARS 33720.00
El producto no está disponible para la venta en este momento
Características
Introduction
- Integrated image collecting and algorithm chip together, ALL-in-One
- Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
- Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
- Low power consumption, low cost, small size, excellent performance
- Professional optical technology, precise module manufacturing technics
- Good image processing capabilities, can successfully capture image up to resolution 500 dpi
- Finger detection function.
Features
| Type | Optical |
| Sensor Life | 100 million times |
| Static indicators | 15KV |
| Backlight | Blue |

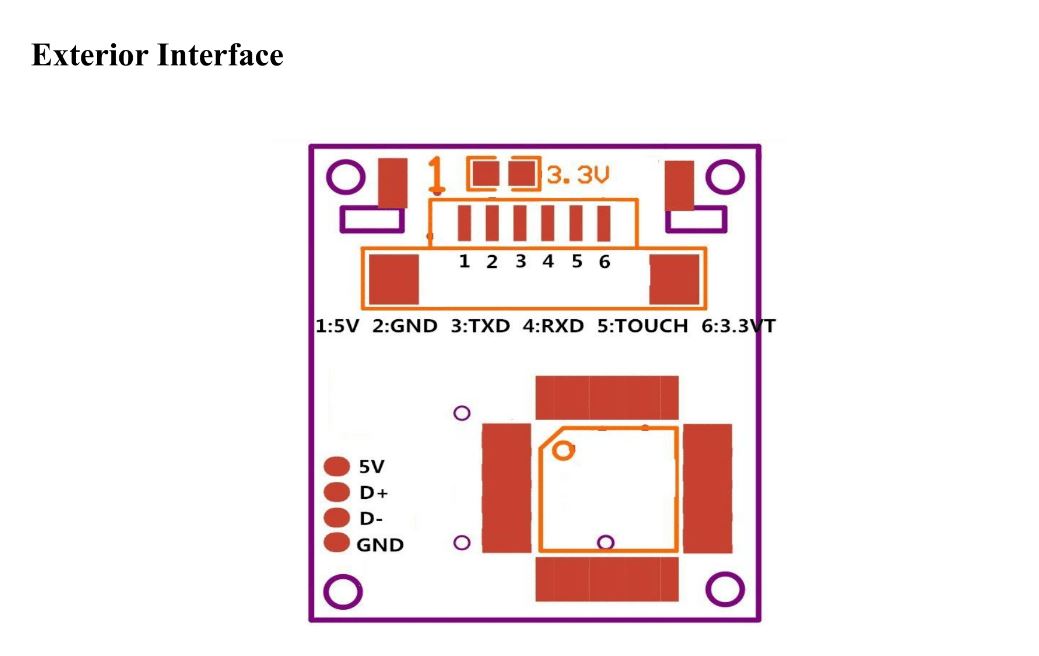

| Interface | USB2.0/UART(TTL logical level) |
| Baud Rate |
(9600*N)bps, N=1 ~ 12(default N=6) |

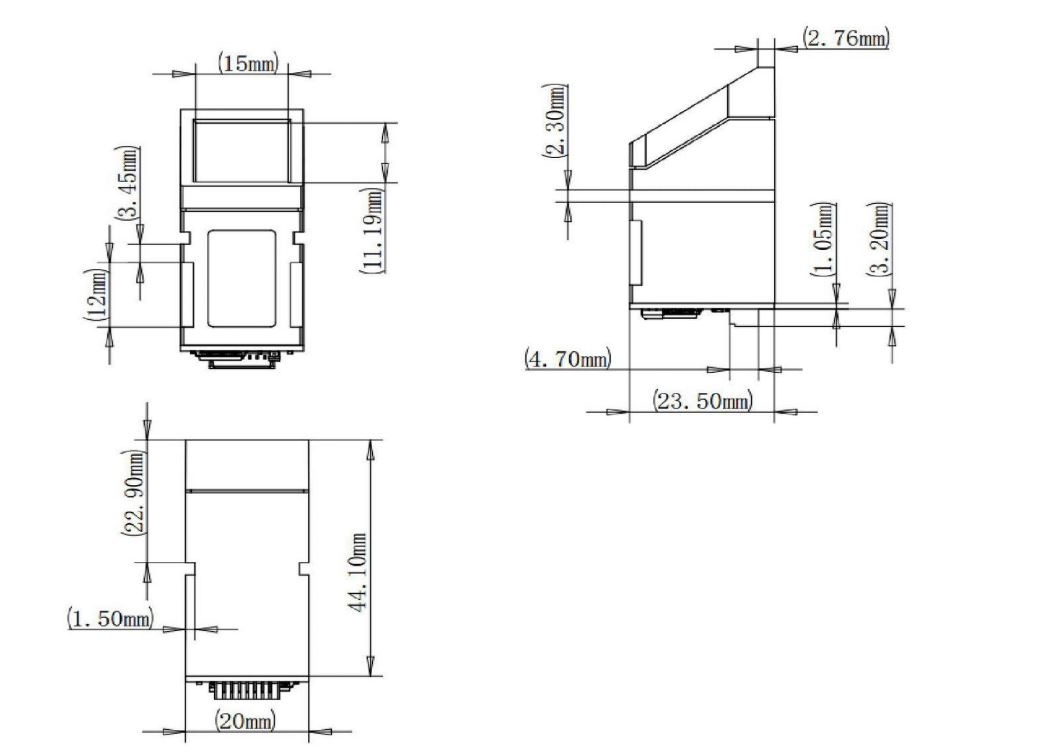

| Window dimension | 19×21(mm) |
| Image acquiring time | <0.5s |
| Character file size | 256 bytes |
| Template size | 512 bytes |
| Storage capacity | 1000 |
| Security level | 5 (1,2,3,4,5(highest) |
| False Acceptance Rate (FAR) | ≤0.001% |
| False Rejection Rate (FRR) | ≤0.1% |
| Resolution | 500 DPI |
| Power | DC 4.2V - 6V |
| Working current | Typical :50 mA |
| Matching Method | 1:1 and 1 : N |
r307_fingerprint_module_user_manual.pdf (593 Kb)
Librería Arduino (4531 Kb)
