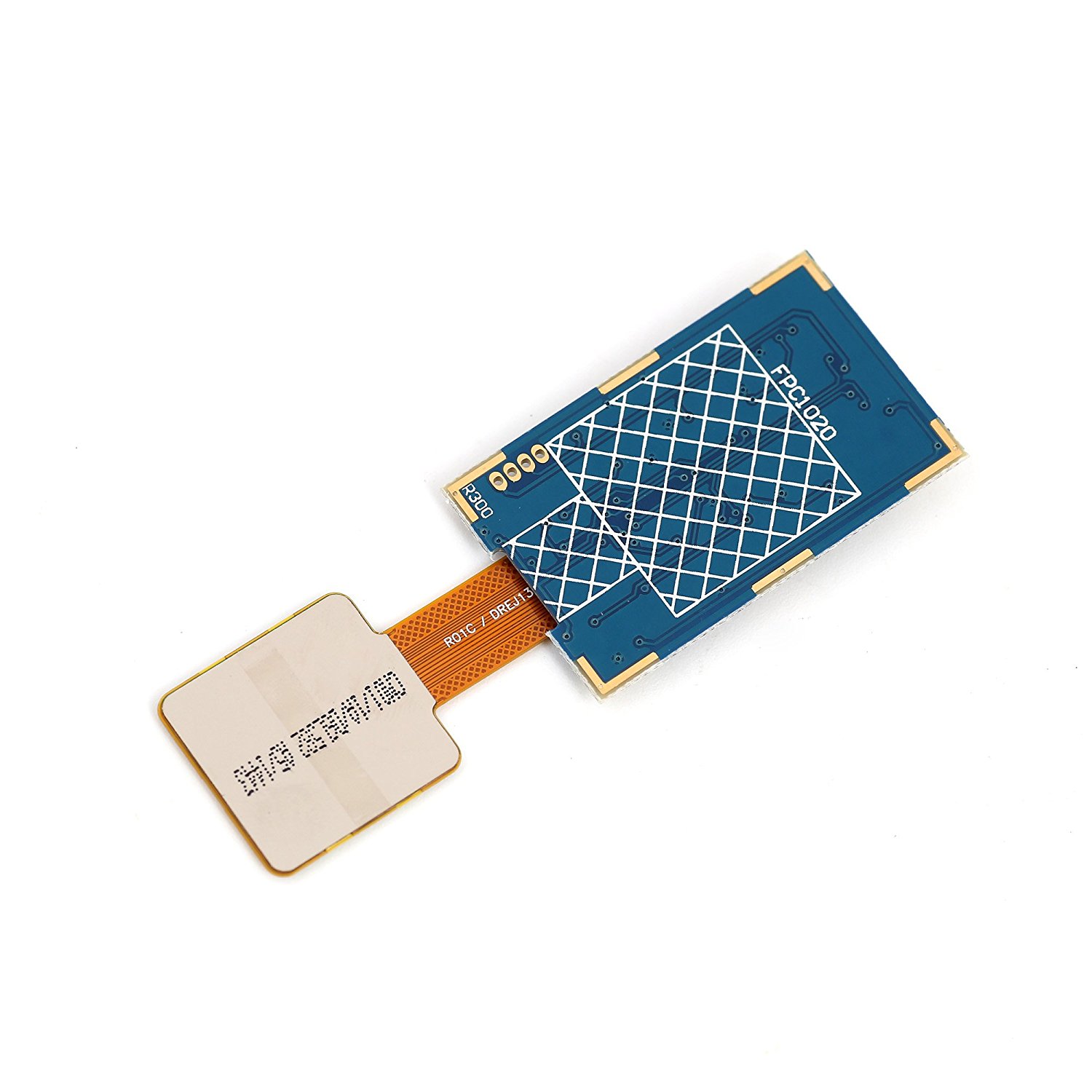

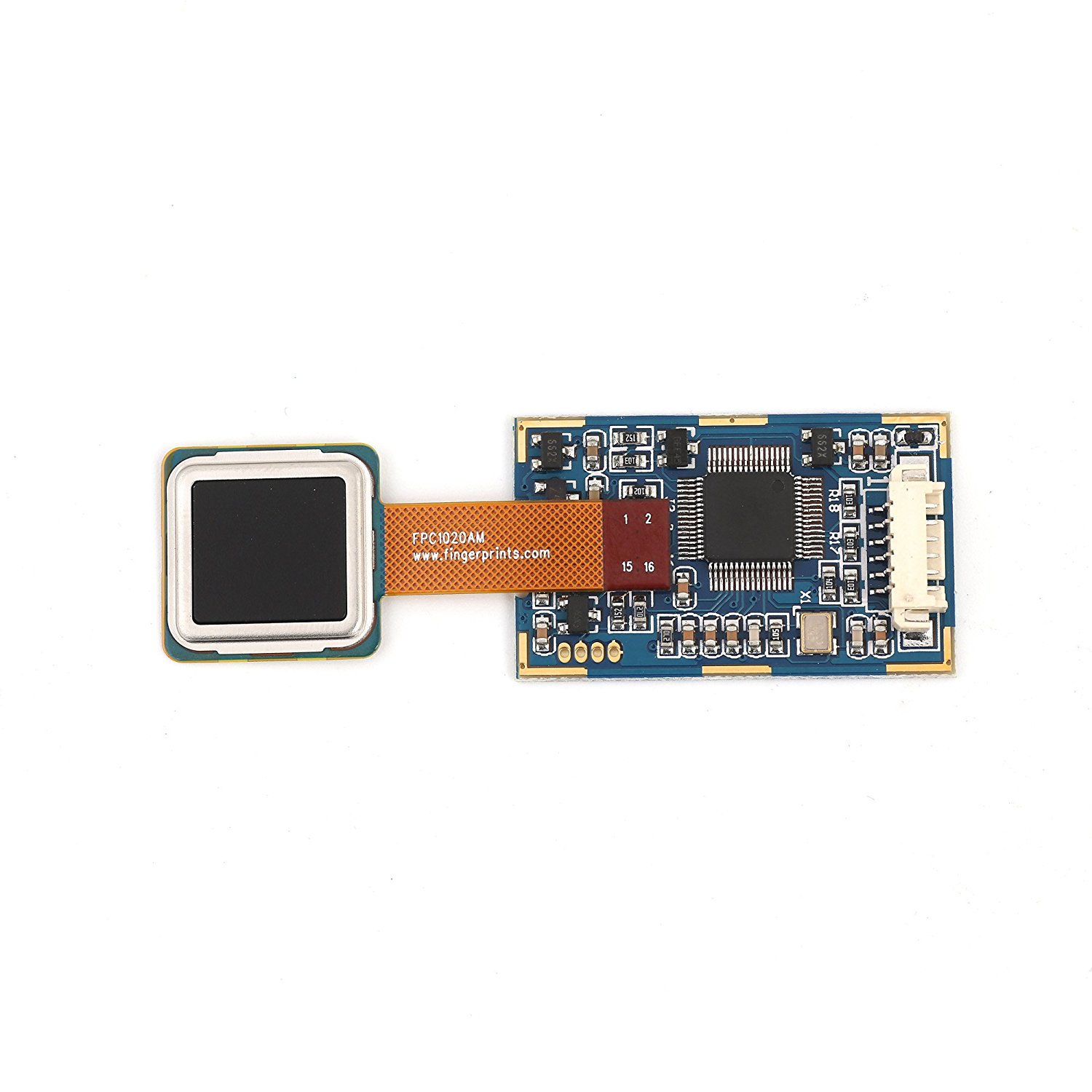

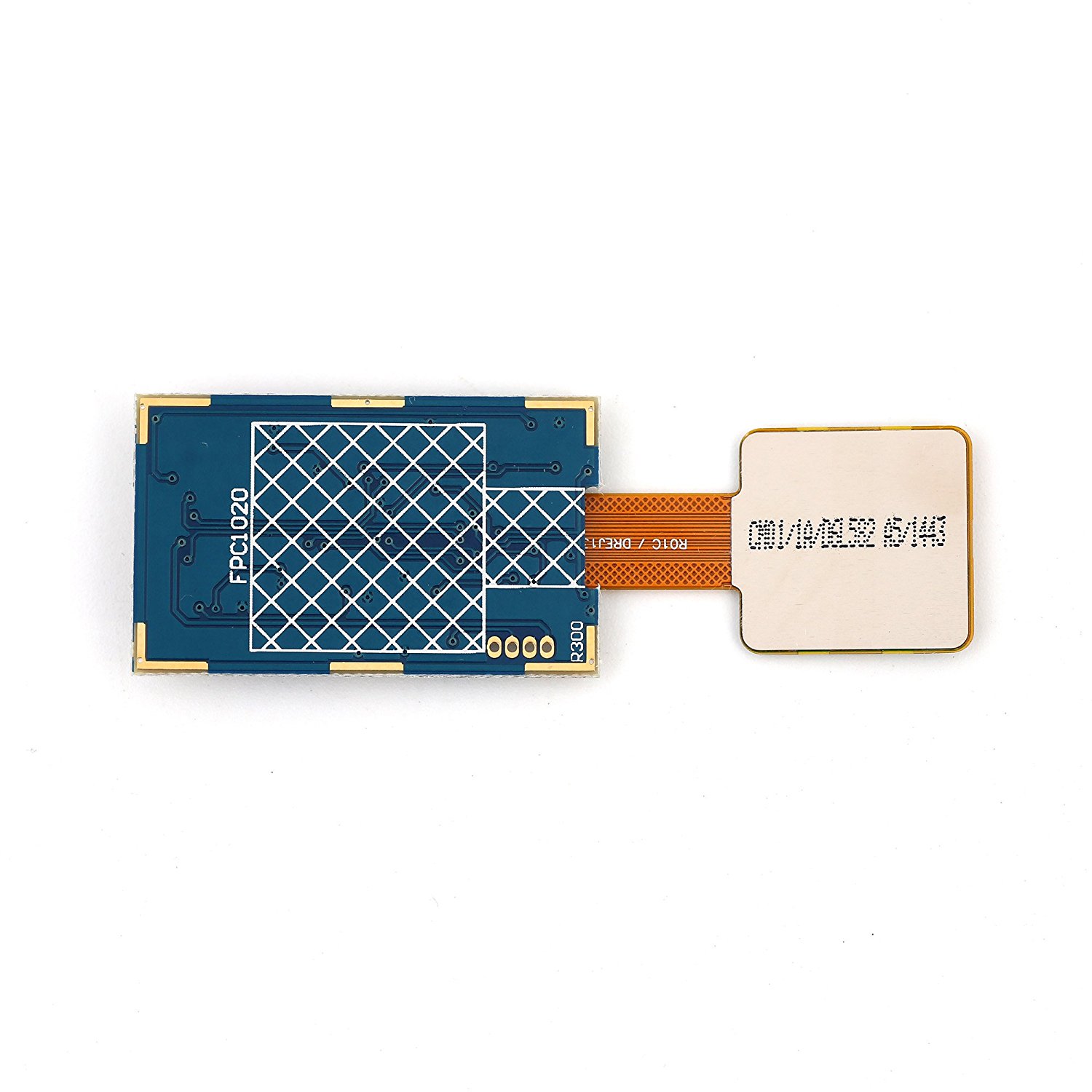

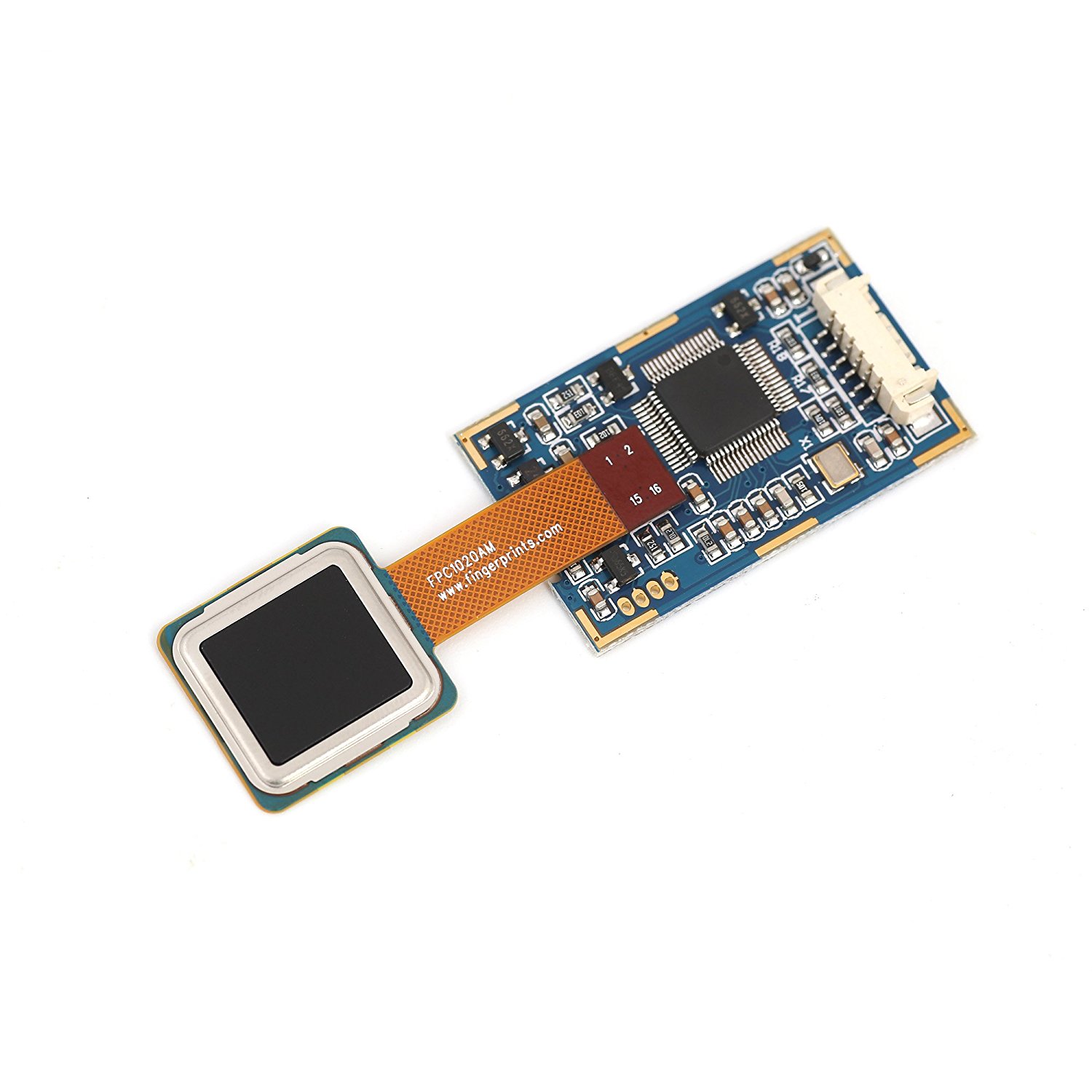

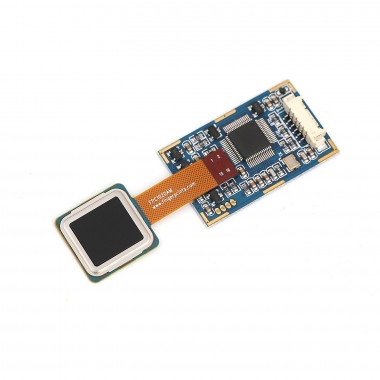

R300 fingerprint sensor module
Scanner Biométrico de huellas dactilares. Posee interfaz UART. Tiene capacidad para almacenar 1000 huellas. Puede conectarse a un Arduino o compatible y ser usado para enrolamiento de huellas así también como identificación y otras funciones muy interesantes. Se alimenta con 5v.
COD: GRR300
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 66951.00
El producto no está disponible para la venta en este momento
Características
Product description:
GROW R300 FPC1020 USB and RS232 (TTL) 300DPI All-in-one Multi-language Capacitive Biometric Fingerprint Sensor Scanner.
Main Functions:
- Communication interface: UART.
- 1:N Identification (One-to-Many).
- 1:1 Verification (One-to-One).
- High speed fingerprint identification algorithm engine.
- Self study function.
- Fingerprint feature data read/write functions.
- Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured.
- fingerprint Identify Downloaded Feature with Captured fingerprint.
- Security Level setting.
- Able to set BaudRate/ Device ID/Device Password.
- Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android.
Specification:
- Interface:USB 2.0 and RS232 (TTL).
- Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps).
- Dimension: 45*32mm.
- Fingerprint reader module size: 33.4 * 20.4(mm).
- Effective collection area: 10.5 * 11.5 (mm).
- ScanningSpeed:< 0.2 second.
- Verification Speed:< 0.3 second.
- Matching Method:1:1; 1:N
- Resolution: 363 DPI.
- Voltage: DC 4.2-6.0V.
- FRR (False Rejection Ratio):≤0.01%.
- FAR (False Acceptance Ratio):≤0.00001%.
- Fingerprint capacity: 1000.
- Antistatic capacity: 15KV.
- Abrasive resistance intensity:1 million times.
- Peak power consumption: 60 mA.
- Work environment:-20°C ---55°C.
- Work Humidity:10-90%.
r300_fingerprint_module_user_manual.pdf (477 Kb)
fpm-master.zip (8504 Kb)
