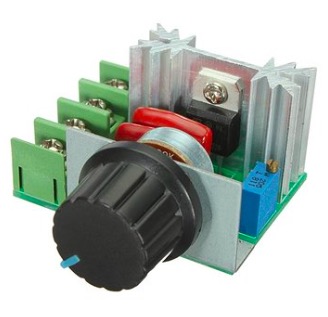

2000W 110-220VAC Adjustable Voltage Regulator AC Motor Speed Controller

2000W 50V-220V Adjustable Voltage Regulator PWM AC Motor Speed Controller

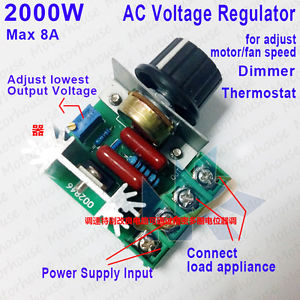

Módulo controlador de velocidad para motores AC de tipo universal (no recomendable para motores de inducción). Posee un potenciómetro para controlar la potencia, y por otro lado un trimmer para regular el umbral mínimo de voltaje de salida. Proporciona un voltaje de salida de 50v - 250v, con una potencia máxima de 2000w.

COD: HTHR0214-116A

Peso: 0.045 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 72.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This controller uses novel bi-directional high-power SCR. It can be very convenient adjust the current up to 25A, and solve the over current problem of the heating wire resistance is too small in the case of cooling causing good.

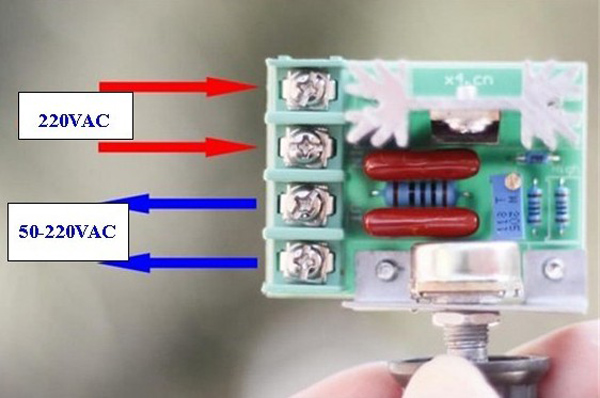

The output voltage is adjusted anywhere between 50V ~ 220V for use with electrical appliances. It can use to such as electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect.



Specification:

Input supply voltage: AC 110V ~ 250V

Output voltage: 50V ~ 250V (Output voltage <= Input supply voltage)

Maximum output power: 2000W

Maximum output current: 25A

Operation environment temperature: -20°C ~ 40°C

Size: 47 x 35 x 27mm
