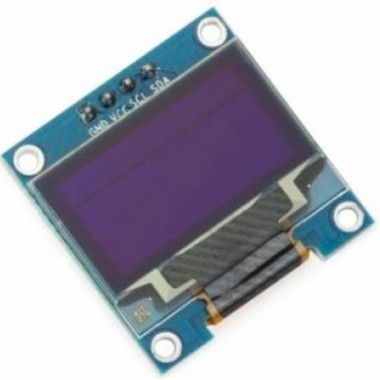

4pin New 128X64 OLED LCD LED Display Module 0.96
Módulo display OLED de 128x64, de dimensiones 29.28 x 27.1 mm y compatible con Arduino. Interfaz I2C; posee 4 pines. Compatible con lógicas de 3.3V y 5V
COD: HTHR0088
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 10843.00
El producto no está disponible para la venta en este momento
Características
0.96 Inch 4Pin Blue Yellow IIC I2C OLED Display Module For Arduino
Interface: IIC/I2C
GND: Power Gound
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
Feature:
Color: Blue and Yellow LED
Resolution: 128x64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30°C to 70°C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD136
Package included:
1 x Blue and Yellow OLED displayM
