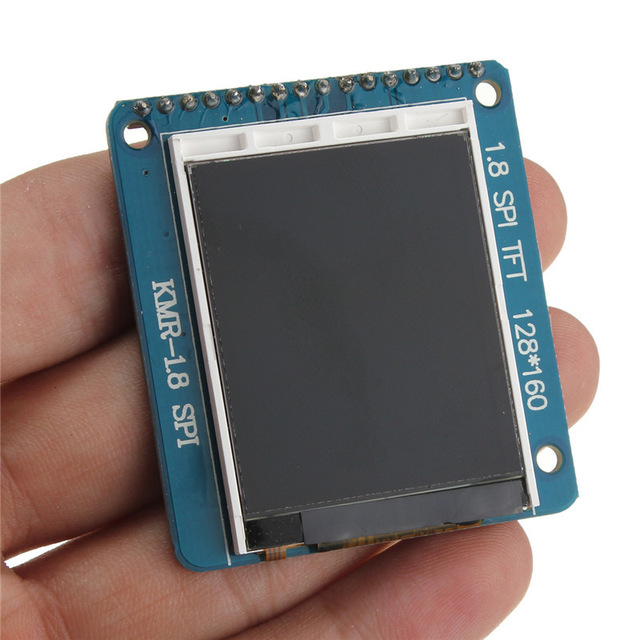

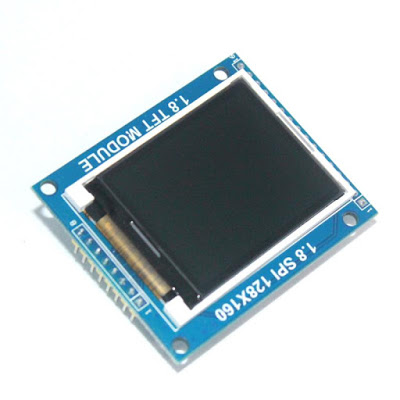

1.8 Inch 128*160 Serial SPI TFT LCD Module Display + PCB Adapter

1.8 Inch 128*160 Serial SPI TFT LCD Module Display   PCB Adapter

Módulo con display LCD TFT de 1.8 pulgadas el cual ofrece una resolución de 128x160. Posee interfaz serial y SPI. El módulo incluye un slot para tarjeta SD. Se alimenta con tensiones de 3.3v a 5v.

COD: HTHR0117

Peso: 0.500 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 2120.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

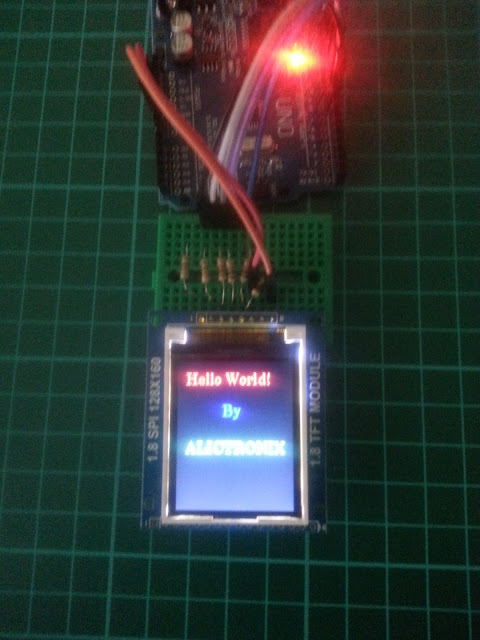

TFT LCD Screens (Thin-film-transistor liquid crystal display) are great graphical displays to display information.  They are a variant of a liquid crystal display (LCD) which uses TFT technology to improve image qualities such as addressability and contrast.  They are used often in video games, smart phones, cell phones, and sometimes even TV's.  Now, with the technology and accessibility today, you can use one with your Arduino!.



Features:

  • Size: 1.8 inch.
  • Dot Matrix: 128*160.
  • Size: 54mm (length) * 34mm (width).
  • Input Voltage: 5V/3.3V.
  • Driver IC: S6D02A1 / ST7735.

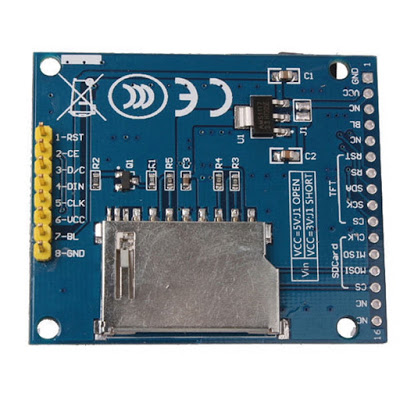

  • Pin Definition: 1-RST 2-CE 3-D/C 4-DIN 5-CLK 6-UCC 7-BL 8-GND.
  • It has PCB backplane with power IC, SD card socket.
  • It need 4 IO port at least to drive.



Hardware and Software Setup:



Please download the tutorial attached for more information!.
