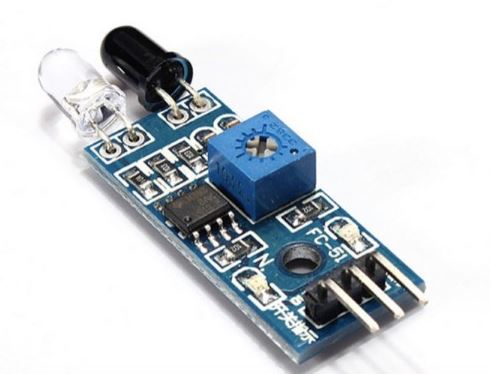

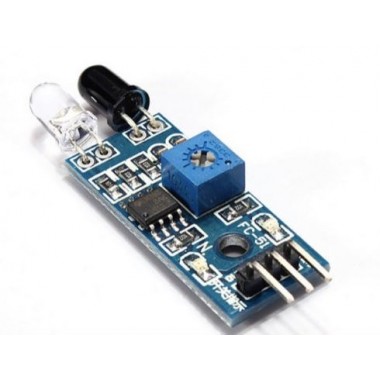

IR Infrared Obstacle Avoidance Sensor Module

Principal

Modulo que incluye sensor infrarrojo, capaz de detectar obstáculos; ideal para proyectos de robótica. Compatible con Arduino. Rango de detección 2-30cm

COD: HTHR0062

Peso: 0.003 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 31.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • When the module detects an obstacle in front of the signal , the green indicator light on the       board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer to detect the distance increases ; counterclockwise to adjust the potentiometer to reduce the detection distance .
  • Active infrared sensors to detect the reflected , and thus the shape of the reflectivity of the target detection range is critical . The minimum detection distance which black , white maximum ; small  objects from a small area , a large area from the Grand .
  • The output port OUT sensor module can be directly connected to the microcontroller IO port you can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO
  • Using the comparator LM393, stable ;
  • Can be used for 3-5V DC power supply modules . When the power is turned on, the red power indicator light ;
  • With the screw holes of 3mm , easy fixed installation ;
  • Board size : 3.1CM * 1.5CM
  • Eeach module shipments comparing the threshold voltage has been adjusted by the potentiometer is good , not exceptional circumstances, do not arbitrarily adjust the potentiometer.

Module interface specification:

1. VCC: external 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
2. GND: GND External
3. OUT: small board digital output interfaces (0 and 1)


Package Include:

1 x Infrared obstacle avoidance module
